Interior-point-optimisation  1.0-1
Interior-pointoptimisationlibrary
ipo::LinearConstraint Class Reference

Class to represent a linear combination as an Objective or Constraint. More...

#include <LinearConstraint.hpp>

Inheritance diagram for ipo::LinearConstraint:
Inheritance graph

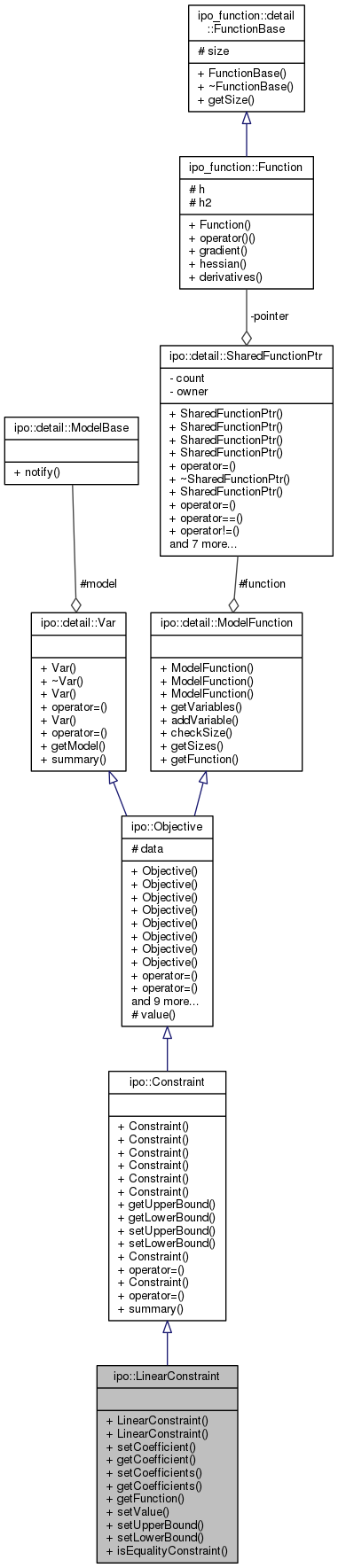

Collaboration diagram for ipo::LinearConstraint:
Collaboration graph

Public Member Functions

 LinearConstraint (detail::ModelBase &model, std::string const &name)
 The constructor creates a new object with no variables. More...

 LinearConstraint (detail::ModelBase &model, char const *const name)
 The constructor creates a new object with no variables. More...

void setCoefficient (Variable const &variable, double const value)
 Set the coefficient of variable. More...

double getCoefficient (Variable const &variable) const
 Get the coefficient of variable. More...

void setCoefficients (gsl::vector const &vector)
 Set all the coefficients of this LinearConstraint. More...

gsl::vector const & getCoefficients () const
 Get all the coefficients of this LinearConstraint. More...

virtual ::ipo_function::FunctiongetFunction ()
 Get function. More...

void setValue (double const value)
 Set value of Constraint. More...

virtual void setUpperBound (double const upperBound)
 Set upper bound of Constraint. More...

virtual void setLowerBound (double const lowerBound)
 Set lower bound of Constraint. More...

bool isEqualityConstraint () const
 Find if this is an equality constraint (upperBound = lowerBound). More...

- Public Member Functions inherited from ipo::Constraint
 Constraint (detail::ModelBase &model, detail::SharedFunctionPtr function, std::string const &name)
 Use this constructor to construct from a ipo_function::SharedFunctionPtr object. More...

 Constraint (detail::ModelBase &model, ipo_function::Function *function, std::string const &name)
 Use this constructor to construct from a pointer to a ipo_function::Function object. More...

 Constraint (detail::ModelBase &model, ipo_function::Function &function, std::string const &name)
 Constructor. More...

 Constraint (detail::ModelBase &model, detail::SharedFunctionPtr function, char const *const name=0)
 Use this constructor to construct from a ipo_function::SharedFunctionPtr object. More...

 Constraint (detail::ModelBase &model, ipo_function::Function *function, char const *const name=0)
 Use this constructor to construct from a pointer to a ipo_function::Function object. More...

 Constraint (detail::ModelBase &model, ipo_function::Function &function, char const *const name=0)
 Constructor. More...

double getUpperBound () const
 Get upper bound of Constraint. More...

double getLowerBound () const
 Get lower bound of Constraint. More...

 Constraint (Constraint const &constraint)
 Copy constructor. More...

Constraintoperator= (Constraint const &constraint)
 Assignment operator. More...

 Constraint (Constraint &&constraint)
 Move constructor. More...

Constraintoperator= (Constraint &&constraint)
 Move assignment operator. More...

virtual void summary (std::ostream &ostream=std::cout, std::string const &prefix="") const override
 Create a summary of this function. More...

- Public Member Functions inherited from ipo::Objective
 Objective (detail::ModelBase &model, detail::SharedFunctionPtr function, std::string const &name)
 Use this constructor to construct from a SharedFunctionPtr object. More...

 Objective (detail::ModelBase &model, ipo_function::Function *function, std::string const &name)
 Use this constructor to construct from a pointer to a ipo_function::Function object. More...

 Objective (detail::ModelBase &model, ipo_function::Function &function, std::string const &name)
 Use this constructor to construct from a ipo_function::Function object by reference. More...

 Objective (detail::ModelBase &model, detail::SharedFunctionPtr function, char const *const name=0)
 Use this constructor to construct from a SharedFunctionPtr object. More...

 Objective (detail::ModelBase &model, ipo_function::Function *function, char const *const name=0)
 Use this constructor to construct from a pointer to a ipo_function::Function object. More...

 Objective (detail::ModelBase &model, ipo_function::Function &function, char const *const name=0)
 Constructor. More...

 Objective (Objective const &objective)
 Copy constructor. More...

 Objective (Objective &&objective)
 Move constructor. More...

Objectiveoperator= (Objective const &objective)
 Assignment operator. More...

Objectiveoperator= (Objective &&objective)
 Assignment operator. More...

std::string getName () const
 Get name of variable. More...

void setName (std::string const &name)
 Set name of Objective. More...

void setName (char *const name)
 Set name of Objective. More...

ArraygetVariables ()
 Get variables used by Objective function. More...

void addVariable (Variable &variable)
 Add a Variable. More...

void removeVariable (Variable &variable)
 Remove (first, and usually only occurrence of) a Variable. More...

void addArray (Array &array)
 Add an Array. More...

void removeArray (Array &array)
 Remove an Array. More...

- Public Member Functions inherited from ipo::detail::Var
 Var (ModelBase &model)
 Constructor needs a model so that variable can only be attached to one model. More...

virtual ~Var ()=0
 Virtual destructor to make class abstract. More...

 Var (Var &var)
 Copy constructor. More...

Varoperator= (Var &var)
 Copy assignment operator. More...

 Var (Var &&var)
 Move constructor. More...

Varoperator= (Var &&var)
 Move assignment operator. More...

ModelBase const *const getModel () const
 Get pointer to model. More...

- Public Member Functions inherited from ipo::detail::ModelFunction
 ModelFunction (SharedFunctionPtr function)
 Use this constructor to construct from a SharedFunctionPtr object. More...

 ModelFunction (ipo_function::Function *function)
 Use this constructor to construct from a pointer to a ipo_function::Function object. More...

 ModelFunction (ipo_function::Function &function)
 Use this constructor to construct from a ipo_function::Function object by reference. More...

bool checkSize () const
 Check size of vector for function arguments matches number of variables supplied. More...

std::tuple< size_t, size_t > getSizes () const
 Get size of vector for function arguments and number of variables supplied. More...

virtual ::ipo_function::FunctiongetFunction ()
 Get function. More...


Additional Inherited Members

- Protected Member Functions inherited from ipo::Objective
double value () const noexcept
 Value of the objective function at the current value of the variables. More...

- Protected Attributes inherited from ipo::Objective
std::shared_ptr< Datadata
 The objective data. More...

- Protected Attributes inherited from ipo::detail::Var
ModelBasemodel
 A Model to attach this to. More...

- Protected Attributes inherited from ipo::detail::ModelFunction
SharedFunctionPtr function
 The objective or constraint function. More...


Detailed Description

Class to represent a linear combination as an Objective or Constraint.

Internally the function is represented as an ipo_function::concrete::LinearCombination object. But you should normally use this class directly for linear constraints. It provides the same functions as ipo_function::concrete::LinearCombination or a custom ipo_function::Function class. But it also allows the possibility of setting a constraint with an equality bound and allows you to specify the coefficients by variable, which is less error-prone than specifying them by index.

Use getVariables() to change the variables assigned to this and then use setCoefficient() (or possibly setCoefficients()) to set the coefficients to sensible values.

Adding a variable to the array returned by getVariables() will not affect any existing coefficients. But removing one will. That is, if you erase an element of this array, the last element of the vector of coefficients is removed, not necessarily the element corresponding to the erased variable. Similarly if you insert a variable at any position other than the end, you may wish to use getCoefficients() before and setCoefficients() after to ensure that the coefficients match the variables.

Definition at line 48 of file LinearConstraint.hpp.

Constructor & Destructor Documentation

LinearConstraint::LinearConstraint ( detail::ModelBase model,
std::string const &  name
)

The constructor creates a new object with no variables.

But it must be attached to a model.

Parameters
modelthe Model
nameA name for this object

Definition at line 28 of file LinearConstraint.cc.

References ipo::detail::Var::model.

LinearConstraint::LinearConstraint ( detail::ModelBase model,
char const *const  name
)

The constructor creates a new object with no variables.

But it must be attached to a model.

Parameters
modelthe Model
nameA name for this object

Definition at line 33 of file LinearConstraint.cc.

References ipo::detail::Var::model.

Member Function Documentation

double LinearConstraint::getCoefficient ( Variable const &  variable) const

Get the coefficient of variable.

Parameters
variableA Variable
Returns
The value of the coefficient of this variable
Exceptions
IPOExceptionif variable is not a variable of this

Definition at line 60 of file LinearConstraint.cc.

References getFunction(), ipo::Variable::getName(), ipo::Objective::getVariables(), and IPOE.

gsl::vector const & LinearConstraint::getCoefficients ( ) const

Get all the coefficients of this LinearConstraint.

Returns
The vector of variables
Exceptions
IPOExceptionif function is not an ipo_function::concrete::LinearCombination

Definition at line 82 of file LinearConstraint.cc.

References getFunction(), ipo::Objective::getVariables(), IPOE, and RETHROW.

ipo_function::Function * LinearConstraint::getFunction ( )

Get function.

This reimplements ModeFunction::getFunction() to make sure number of coefficients matches size of array and then returns the function.

Returns
function

Definition at line 99 of file LinearConstraint.cc.

References ipo::Objective::getVariables(), and IPOE.

Referenced by getCoefficient(), getCoefficients(), setCoefficient(), and setCoefficients().

bool LinearConstraint::isEqualityConstraint ( ) const

Find if this is an equality constraint (upperBound = lowerBound).

Returns
true or false according as upperBound = lowerBound or not

Definition at line 144 of file LinearConstraint.cc.

References ipo::Constraint::getLowerBound(), and ipo::Constraint::getUpperBound().

void LinearConstraint::setCoefficient ( Variable const &  variable,
double const  value
)

Set the coefficient of variable.

Parameters
variableA Variable
valueThe value to set the coefficient of variable to
Exceptions
IPOExceptionif variable is not a variable of this

Definition at line 39 of file LinearConstraint.cc.

References getFunction(), ipo::Variable::getName(), ipo::Objective::getVariables(), IPOE, and ipo::Objective::value().

void LinearConstraint::setCoefficients ( gsl::vector const &  vector)

Set all the coefficients of this LinearConstraint.

Parameters
vectorThe vector of variables
Exceptions
IPOExceptionif number of variables and vector length do not match

Definition at line 162 of file LinearConstraint.cc.

References getFunction(), ipo::Objective::getVariables(), IPOE, and ipo::Array::size().

void LinearConstraint::setLowerBound ( double const  lowerBound)
virtual

Set lower bound of Constraint.

This may invalidate value set if the value is less than the lower bound.

Parameters
lowerBoundThe new lower bound
Exceptions
IPOExceptionif new lower bound greater than upper bound

Reimplemented from ipo::Constraint.

Definition at line 128 of file LinearConstraint.cc.

References ipo::Model::addConstraint(), ipo::Objective::data, ipo::detail::Var::getModel(), IPOE, and lowerBound.

void LinearConstraint::setUpperBound ( double const  upperBound)
virtual

Set upper bound of Constraint.

This may invalidate value set if the value is not less than the upper bound.

Parameters
upperBoundThe new upper bound
Exceptions
IPOExceptionif new upper bound less than lower bound

Reimplemented from ipo::Constraint.

Definition at line 112 of file LinearConstraint.cc.

References ipo::Model::addConstraint(), ipo::Objective::data, ipo::detail::Var::getModel(), IPOE, lowerBound, and upperBound.

void LinearConstraint::setValue ( double const  value)

Set value of Constraint.

This makes this an equality constraint if it is not one already and should be preferred to using setLowerBound() and setUpperBound().

Parameters
valueThe new value

Definition at line 149 of file LinearConstraint.cc.

References ipo::Model::addConstraint(), ipo::Objective::data, ipo::detail::Var::getModel(), and ipo::Objective::value().


The documentation for this class was generated from the following files:
