gsl::complex_float_ref Class Reference

This class can be used like a reference for complex_float objects so that we can iterate over a vector (for example) of them. More...

#include <complex_float.hpp>

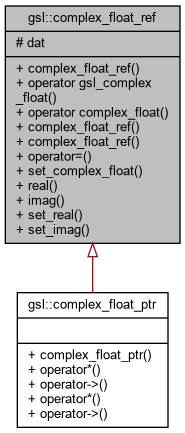

Inheritance diagram for gsl::complex_float_ref:

Collaboration diagram for gsl::complex_float_ref:

Public Member Functions
	complex_float_ref (float *dat)
	We use this in constructing complex_float_ptr objects. More...
	operator gsl_complex_float () const
	Make sure this is convertible to gsl_complex_float. More...
	operator complex_float () const
	Make sure this is convertible to complex_float. More...
	complex_float_ref ()
	The default constructor is only really useful for assigning to. More...
	complex_float_ref (complex_float &z)
	Make sure we can construct from a complex_float. More...
complex_float_ref &	operator= (complex_float const &z)
	Assignment from complex_float. More...
void	set_complex_float (float x, float y)
	C++ version of GSL_SET_COMPLEX(). More...
float	real () const
	C++ version of GSL_REAL(). More...
float	imag () const
	C++ version of GSL_IMAG(). More...
void	set_real (float x)
	C++ version of GSL_SET_REAL(). More...
void	set_imag (float y)
	C++ version of GSL_SET_IMAG(). More...

Protected Attributes
float *	dat
	The data. More...

Detailed Description

This class can be used like a reference for complex_float objects so that we can iterate over a vector (for example) of them.

Definition at line 203 of file complex_float.hpp.

Constructor & Destructor Documentation

complex_float_ref() [1/3]

gsl::complex_float_ref::complex_float_ref ( float *  dat )

inline

We use this in constructing complex_float_ptr objects.

Parameters

dat	A pointer to the data

Definition at line 214 of file complex_float.hpp.

complex_float_ref() [2/3]

gsl::complex_float_ref::complex_float_ref ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 233 of file complex_float.hpp.

complex_float_ref() [3/3]

gsl::complex_float_ref::complex_float_ref ( complex_float &  z )

inline

Make sure we can construct from a complex_float.

Parameters

z	The complex_float to construct from

Definition at line 238 of file complex_float.hpp.

Member Function Documentation

imag()

float gsl::complex_float_ref::imag ( ) const

inline

C++ version of GSL_IMAG().

Returns

The real part of this

Definition at line 264 of file complex_float.hpp.

operator complex_float()

gsl::complex_float_ref::operator complex_float ( ) const

inline

Make sure this is convertible to complex_float.

This is not ideal because it copies twice. But it gets round the problem that a gsl_complex_float must contain constant data.

Returns

A complex_float

Definition at line 227 of file complex_float.hpp.

References dat.

operator gsl_complex_float()

gsl::complex_float_ref::operator gsl_complex_float ( ) const

inline

Make sure this is convertible to gsl_complex_float.

This is not ideal because it copies twice. But it gets round the problem that a gsl_complex_float must contain constant data.

Returns

A gsl_complex_float

Definition at line 220 of file complex_float.hpp.

References dat.

operator=()

complex_float_ref & gsl::complex_float_ref::operator= ( complex_float const &  z )

inline

Assignment from complex_float.

Parameters

z	The complex_float to assign from

Definition at line 246 of file complex_float.hpp.

References dat.

real()

float gsl::complex_float_ref::real ( ) const

inline

C++ version of GSL_REAL().

Returns

The real part of this

Definition at line 259 of file complex_float.hpp.

set_complex_float()

void gsl::complex_float_ref::set_complex_float ( float  x, float  y  )

inline

C++ version of GSL_SET_COMPLEX().

Parameters

x	Real part
y	Imaginary part

Definition at line 254 of file complex_float.hpp.

set_imag()

void gsl::complex_float_ref::set_imag ( float  y )

inline

C++ version of GSL_SET_IMAG().

Parameters

y	The new imaginary part

Definition at line 274 of file complex_float.hpp.

set_real()

void gsl::complex_float_ref::set_real ( float  x )

inline

C++ version of GSL_SET_REAL().

Parameters

x	The new real part

Definition at line 269 of file complex_float.hpp.

Member Data Documentation

dat

float* gsl::complex_float_ref::dat

protected

The data.

Never initialised or destroyed within the class. Always precisely two elements.

Definition at line 208 of file complex_float.hpp.

Referenced by operator complex_float(), operator gsl_complex_float(), and operator=().

---

The documentation for this class was generated from the following file:

• complex_float.hpp
