Workspace for one-dimensional minimisation. More...

#include <min.hpp>

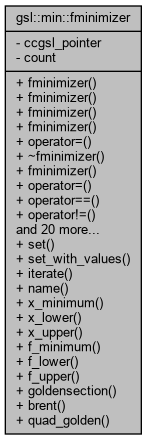

Collaboration diagram for gsl::min::fminimizer:

Public Types
typedef gsl_min_fminimizer_type	type
	Typedef. More...

Public Member Functions
	fminimizer ()
	The default constructor is only really useful for assigning to. More...

	fminimizer (type const *T)
	The standard constructor creates a new minimizer of type fminimizer::type. More...

	fminimizer (gsl_min_fminimizer *v)
	Could construct from a gsl_min_fminimizer. More...

	fminimizer (fminimizer const &v)
	The copy constructor. More...

fminimizer &	operator= (fminimizer const &v)
	The assignment operator. More...

	~fminimizer ()
	The destructor only deletes the pointers if count reaches zero. More...

	fminimizer (fminimizer &&v)
	Move constructor. More...

fminimizer &	operator= (fminimizer &&v)
	Move operator. More...

bool	operator== (fminimizer const &v) const
	Two fminimizer are identically equal if their elements are identical. More...

bool	operator!= (fminimizer const &v) const
	Two fminimizer are different if their elements are not identical. More...

bool	operator< (fminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator> (fminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator<= (fminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator>= (fminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	empty () const
	Find if the fminimizer is empty. More...

void	swap (fminimizer &v)
	Swap two fminimizer objects. More...

gsl_min_fminimizer *	get () const
	Get the gsl_min_fminimizer. More...

bool	unique () const
	Find if this is the only object sharing the gsl_min_fminimizer. More...

size_t	use_count () const
	Find how many fminimizer objects share this pointer. More...

	operator bool () const
	Allow conversion to bool. More...

int	set (function_scl &f, double x_minimum, double x_lower, double x_upper)
	C++ version of gsl_min_fminimizer_set(). More...

int	set_with_values (function_scl &f, double x_minimum, double f_minimum, double x_lower, double f_lower, double x_upper, double f_upper)
	C++ version of gsl_min_fminimizer_set_with_values(). More...

int	iterate ()
	C++ version of gsl_min_fminimizer_iterate(). More...

char const *	name () const
	C++ version of gsl_min_fminimizer_name(). More...

double	x_minimum () const
	C++ version of gsl_min_fminimizer_x_minimum(). More...

double	x_lower ()
	C++ version of gsl_min_fminimizer_x_lower(). More...

double	x_upper () const
	C++ version of gsl_min_fminimizer_x_upper(). More...

double	f_minimum () const
	C++ version of gsl_min_fminimizer_f_minimum(). More...

double	f_lower () const
	C++ version of gsl_min_fminimizer_f_lower(). More...

double	f_upper () const
	C++ version of gsl_min_fminimizer_f_upper(). More...

Static Public Member Functions
static int	set (fminimizer &s, function_scl &f, double x_minimum, double x_lower, double x_upper)
	C++ version of gsl_min_fminimizer_set(). More...

static int	set_with_values (fminimizer &s, function_scl &f, double x_minimum, double f_minimum, double x_lower, double f_lower, double x_upper, double f_upper)
	C++ version of gsl_min_fminimizer_set_with_values(). More...

static int	iterate (fminimizer &s)
	C++ version of gsl_min_fminimizer_iterate(). More...

static std::string	name (fminimizer const &s)
	C++ version of gsl_min_fminimizer_name(). More...

static double	x_minimum (fminimizer const &s)
	C++ version of gsl_min_fminimizer_x_minimum(). More...

static double	x_lower (fminimizer const &s)
	C++ version of gsl_min_fminimizer_x_lower(). More...

static double	x_upper (fminimizer const &s)
	C++ version of gsl_min_fminimizer_x_upper(). More...

static double	f_minimum (fminimizer const &s)
	C++ version of gsl_min_fminimizer_f_minimum(). More...

static double	f_lower (fminimizer const &s)
	C++ version of gsl_min_fminimizer_f_lower(). More...

static double	f_upper (fminimizer const &s)
	C++ version of gsl_min_fminimizer_f_upper(). More...

static type const *	goldensection ()
	Static type. More...

static type const *	brent ()
	Static type. More...

static type const *	quad_golden ()
	Static type. More...

Private Attributes
gsl_min_fminimizer *	ccgsl_pointer
	The shared pointer. More...

size_t *	count
	The shared reference count. More...

Detailed Description

Workspace for one-dimensional minimisation.

Also acts like a namespace for fminimizer functions. The functions can also be called on an fminimizer object.

Definition at line 36 of file min.hpp.

Member Typedef Documentation

◆ type

typedef gsl_min_fminimizer_type gsl::min::fminimizer::type

Typedef.

Definition at line 41 of file min.hpp.

Constructor & Destructor Documentation

◆ fminimizer() [1/5]

gsl::min::fminimizer::fminimizer ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 45 of file min.hpp.

References ccgsl_pointer, and count.

Referenced by operator=().

◆ fminimizer() [2/5]

gsl::min::fminimizer::fminimizer ( type const * T )

inlineexplicit

The standard constructor creates a new minimizer of type fminimizer::type.

Parameters

T	The type of the fminimizer

Definition at line 55 of file min.hpp.

References ccgsl_pointer, and count.

◆ fminimizer() [3/5]

gsl::min::fminimizer::fminimizer ( gsl_min_fminimizer * v )

inlineexplicit

Could construct from a gsl_min_fminimizer.

This is not usually a good idea. In this case you should not use gsl_min_fminimizer_free() to deallocate the memory.

Parameters

v	The fminimizer

Definition at line 71 of file min.hpp.

References ccgsl_pointer, and count.

◆ fminimizer() [4/5]

gsl::min::fminimizer::fminimizer ( fminimizer const & v )

inline

The copy constructor.

This creates a new reference to the workspace.

Parameters

v	The fminimizer to copy.

Definition at line 82 of file min.hpp.

References ccgsl_pointer, and count.

◆ ~fminimizer()

gsl::min::fminimizer::~fminimizer ( )

inline

The destructor only deletes the pointers if count reaches zero.

Definition at line 101 of file min.hpp.

References ccgsl_pointer, and count.

◆ fminimizer() [5/5]

gsl::min::fminimizer::fminimizer ( fminimizer && v )

inline

Move constructor.

Parameters

v	The fminimizer to move.

Definition at line 113 of file min.hpp.

References count.

Member Function Documentation

◆ brent()

static type const * gsl::min::fminimizer::brent ( )

inlinestatic

Static type.

Returns: the named fminimizer type

Definition at line 482 of file min.hpp.

◆ empty()

bool gsl::min::fminimizer::empty ( ) const

inline

Find if the fminimizer is empty.

Returns: true if has size zero; otherwise false

Definition at line 190 of file min.hpp.

References ccgsl_pointer.

◆ f_lower() [1/2]

double gsl::min::fminimizer::f_lower ( ) const

inline

C++ version of gsl_min_fminimizer_f_lower().

Returns: Current value of f at x_lower.

Definition at line 464 of file min.hpp.

References get().

Referenced by set_with_values().

◆ f_lower() [2/2]

static double gsl::min::fminimizer::f_lower ( fminimizer const & s )

inlinestatic

C++ version of gsl_min_fminimizer_f_lower().

Parameters

s	An fminimizer.

Returns: Current value of f at x_lower.

Definition at line 356 of file min.hpp.

References get().

◆ f_minimum() [1/2]

double gsl::min::fminimizer::f_minimum ( ) const

inline

C++ version of gsl_min_fminimizer_f_minimum().

Returns: Current value of f at x_minimum.

Definition at line 458 of file min.hpp.

References get().

Referenced by set_with_values().

◆ f_minimum() [2/2]

static double gsl::min::fminimizer::f_minimum ( fminimizer const & s )

inlinestatic

C++ version of gsl_min_fminimizer_f_minimum().

Parameters

s	An fminimizer.

Returns: Current value of f at x_minimum.

Definition at line 348 of file min.hpp.

References get().

◆ f_upper() [1/2]

double gsl::min::fminimizer::f_upper ( ) const

inline

C++ version of gsl_min_fminimizer_f_upper().

Returns: Current value of f at x_upper.

Definition at line 470 of file min.hpp.

References get().

Referenced by set_with_values().

◆ f_upper() [2/2]

static double gsl::min::fminimizer::f_upper ( fminimizer const & s )

inlinestatic

C++ version of gsl_min_fminimizer_f_upper().

Parameters

s	An fminimizer.

Returns: Current value of f at x_upper.

Definition at line 364 of file min.hpp.

References get().

◆ get()

gsl_min_fminimizer * gsl::min::fminimizer::get ( ) const

inline

Get the gsl_min_fminimizer.

Returns: the gsl_min_fminimizer

Definition at line 216 of file min.hpp.

References ccgsl_pointer.

Referenced by f_lower(), f_minimum(), f_upper(), iterate(), name(), set(), set_with_values(), x_lower(), x_minimum(), and x_upper().

◆ goldensection()

static type const * gsl::min::fminimizer::goldensection ( )

inlinestatic

Static type.

Returns: the named fminimizer type

Definition at line 476 of file min.hpp.

◆ iterate() [1/2]

int gsl::min::fminimizer::iterate ( )

inline

C++ version of gsl_min_fminimizer_iterate().

Returns: Error code on failure.

Definition at line 428 of file min.hpp.

References get().

◆ iterate() [2/2]

static int gsl::min::fminimizer::iterate ( fminimizer & s )

inlinestatic

C++ version of gsl_min_fminimizer_iterate().

Parameters

s	An fminimizer.

Returns: Error code on failure.

Definition at line 309 of file min.hpp.

References get().

◆ name() [1/2]

char const * gsl::min::fminimizer::name ( ) const

inline

C++ version of gsl_min_fminimizer_name().

Returns: Name of fminimizer.

Definition at line 434 of file min.hpp.

References get().

◆ name() [2/2]

static std::string gsl::min::fminimizer::name ( fminimizer const & s )

inlinestatic

C++ version of gsl_min_fminimizer_name().

Parameters

s	An fminimizer.

Returns: Name of fminimizer.

Definition at line 316 of file min.hpp.

References get().

◆ operator bool()

gsl::min::fminimizer::operator bool ( ) const

inlineexplicit

Allow conversion to bool.

Returns: true or false according as this contains a pointer to a gsl_min_fminimizer.

Definition at line 236 of file min.hpp.

References ccgsl_pointer.

◆ operator!=()

bool gsl::min::fminimizer::operator!= ( fminimizer const & v ) const

inline

Two fminimizer are different if their elements are not identical.

Parameters

v	The fminimizer to be compared with `this`

Returns: false or true according as this and v have identical elements or not

Definition at line 143 of file min.hpp.

References operator==().

◆ operator<()

bool gsl::min::fminimizer::operator< ( fminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fminimizer is nonnegative.

Parameters

v	The fminimizer to be compared with `this`

Returns: false or true according as this is less than v lexicographically

Definition at line 155 of file min.hpp.

References ccgsl_pointer.

◆ operator<=()

bool gsl::min::fminimizer::operator<= ( fminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fminimizer is nonnegative.

Parameters

v	The fminimizer to be compared with `this`

Returns: false or true according as this is less than or equal to v lexicographically

Definition at line 175 of file min.hpp.

References ccgsl_pointer.

◆ operator=() [1/2]

fminimizer & gsl::min::fminimizer::operator= ( fminimizer && v )

inline

Move operator.

Parameters

v	The fminimizer to move.

Returns: A reference to this.

Definition at line 122 of file min.hpp.

References fminimizer().

◆ operator=() [2/2]

fminimizer & gsl::min::fminimizer::operator= ( fminimizer const & v )

inline

The assignment operator.

This copies elementwise.

Parameters

v	The fminimizer to copy

Definition at line 89 of file min.hpp.

References ccgsl_pointer, and count.

◆ operator==()

bool gsl::min::fminimizer::operator== ( fminimizer const & v ) const

inline

Two fminimizer are identically equal if their elements are identical.

Parameters

v	The fminimizer to be compared with `this`

Returns: true or false according as this and v have identical elements or not

Definition at line 135 of file min.hpp.

References ccgsl_pointer.

Referenced by operator!=().

◆ operator>()

bool gsl::min::fminimizer::operator> ( fminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fminimizer is nonnegative.

Parameters

v	The fminimizer to be compared with `this`

Returns: false or true according as this is greater than v lexicographically

Definition at line 165 of file min.hpp.

References ccgsl_pointer.

◆ operator>=()

bool gsl::min::fminimizer::operator>= ( fminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fminimizer is nonnegative.

Parameters

v	The fminimizer to be compared with `this`

Returns: false or true according as this is no less than v lexicographically

Definition at line 185 of file min.hpp.

References ccgsl_pointer.

◆ quad_golden()

static type const * gsl::min::fminimizer::quad_golden ( )

inlinestatic

Static type.

Returns: the named fminimizer type

Definition at line 488 of file min.hpp.

◆ set() [1/2]

static int gsl::min::fminimizer::set	(	fminimizer &	s,
		function_scl &	f,
		double	x_minimum,
		double	x_lower,
		double	x_upper
	)

inlinestatic

C++ version of gsl_min_fminimizer_set().

Parameters

s	An fminimizer.
f	the function to be minimised.
x_minimum	Guess for value of x at which minimum occurs.
x_lower	Lower bound of initial search interval.
x_upper	Upper bound of initial search interval.

Returns: Error code on failure.

Definition at line 247 of file min.hpp.

References get(), x_lower(), x_minimum(), and x_upper().

◆ set() [2/2]

int gsl::min::fminimizer::set	(	function_scl &	f,
		double	x_minimum,
		double	x_lower,
		double	x_upper
	)

inline

C++ version of gsl_min_fminimizer_set().

Parameters

f	the function to be minimised.
x_minimum	Guess for value of x at which minimum occurs.
x_lower	Lower bound of initial search interval.
x_upper	Upper bound of initial search interval.

Returns: Error code on failure.

Definition at line 375 of file min.hpp.

References get(), x_lower(), x_minimum(), and x_upper().

◆ set_with_values() [1/2]

static int gsl::min::fminimizer::set_with_values	(	fminimizer &	s,
		function_scl &	f,
		double	x_minimum,
		double	f_minimum,
		double	x_lower,
		double	f_lower,
		double	x_upper,
		double	f_upper
	)

inlinestatic

C++ version of gsl_min_fminimizer_set_with_values().

Parameters

s	An fminimizer.
f	the function to be minimised.
x_minimum	Guess for value of x at which minimum occurs.
f_minimum	Value of f at x_minimum.
x_lower	Lower bound of initial search interval.
f_lower	Value of f at x_lower.
x_upper	Upper bound of initial search interval.
f_upper	Value of f at x_upper.

Returns: Error code on failure.

Definition at line 277 of file min.hpp.

References f_lower(), f_minimum(), f_upper(), get(), x_lower(), x_minimum(), and x_upper().

◆ set_with_values() [2/2]

int gsl::min::fminimizer::set_with_values	(	function_scl &	f,
		double	x_minimum,
		double	f_minimum,
		double	x_lower,
		double	f_lower,
		double	x_upper,
		double	f_upper
	)

inline

C++ version of gsl_min_fminimizer_set_with_values().

Parameters

f	the function to be minimised.
x_minimum	Guess for value of x at which minimum occurs.
f_minimum	Value of f at x_minimum.
x_lower	Lower bound of initial search interval.
f_lower	Value of f at x_lower.
x_upper	Upper bound of initial search interval.
f_upper	Value of f at x_upper.

Returns: Error code on failure.

Definition at line 401 of file min.hpp.

References f_lower(), f_minimum(), f_upper(), get(), x_lower(), x_minimum(), and x_upper().

◆ swap()

void gsl::min::fminimizer::swap ( fminimizer & v )

inline

Swap two fminimizer objects.

This works even if the fminimizer have different sizes because it swaps pointers.

Parameters

v	The fminimizer to swap with `this`.

Definition at line 197 of file min.hpp.

References ccgsl_pointer, and count.

◆ unique()

bool gsl::min::fminimizer::unique ( ) const

inline

Find if this is the only object sharing the gsl_min_fminimizer.

Returns: true or falses according as this is the only workspace object sharing the gsl_min_fminimizer.

Definition at line 222 of file min.hpp.

References count.

◆ use_count()

size_t gsl::min::fminimizer::use_count ( ) const

inline

Find how many fminimizer objects share this pointer.

Returns: the number of workspace objects that share this pointer.

Definition at line 227 of file min.hpp.

References count.

◆ x_lower() [1/2]

double gsl::min::fminimizer::x_lower ( )

inline

C++ version of gsl_min_fminimizer_x_lower().

Returns: Current lower bound of search interval.

Definition at line 446 of file min.hpp.

References get().

Referenced by set(), and set_with_values().

◆ x_lower() [2/2]

static double gsl::min::fminimizer::x_lower ( fminimizer const & s )

inlinestatic

C++ version of gsl_min_fminimizer_x_lower().

Parameters

s	An fminimizer.

Returns: Current lower bound of search interval.

Definition at line 332 of file min.hpp.

References get().

◆ x_minimum() [1/2]

double gsl::min::fminimizer::x_minimum ( ) const

inline

C++ version of gsl_min_fminimizer_x_minimum().

Returns: Current estimate of x that minimises f.

Definition at line 440 of file min.hpp.

References get().

Referenced by set(), and set_with_values().

◆ x_minimum() [2/2]

static double gsl::min::fminimizer::x_minimum ( fminimizer const & s )

inlinestatic

C++ version of gsl_min_fminimizer_x_minimum().

Parameters

s	An fminimizer.

Returns: Current estimate of x that minimises f.

Definition at line 324 of file min.hpp.

References get().

◆ x_upper() [1/2]

double gsl::min::fminimizer::x_upper ( ) const

inline

C++ version of gsl_min_fminimizer_x_upper().

Returns: Current upper bound of search interval.

Definition at line 452 of file min.hpp.

References get().

Referenced by set(), and set_with_values().

◆ x_upper() [2/2]

static double gsl::min::fminimizer::x_upper ( fminimizer const & s )

inlinestatic

C++ version of gsl_min_fminimizer_x_upper().

Parameters

s	An fminimizer.

Returns: Current upper bound of search interval.

Definition at line 340 of file min.hpp.

References get().

Member Data Documentation

◆ ccgsl_pointer

gsl_min_fminimizer* gsl::min::fminimizer::ccgsl_pointer

private

The shared pointer.

Definition at line 205 of file min.hpp.

Referenced by empty(), fminimizer(), get(), operator bool(), operator<(), operator<=(), operator=(), operator==(), operator>(), operator>=(), swap(), and ~fminimizer().

◆ count

size_t* gsl::min::fminimizer::count

private

The shared reference count.

Definition at line 209 of file min.hpp.

Referenced by fminimizer(), operator=(), swap(), unique(), use_count(), and ~fminimizer().

The documentation for this class was generated from the following file:

min.hpp

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ type

Constructor & Destructor Documentation

◆ fminimizer() [1/5]

◆ fminimizer() [2/5]

◆ fminimizer() [3/5]

◆ fminimizer() [4/5]

◆ ~fminimizer()

◆ fminimizer() [5/5]

Member Function Documentation

◆ brent()

◆ empty()

◆ f_lower() [1/2]

◆ f_lower() [2/2]

◆ f_minimum() [1/2]

◆ f_minimum() [2/2]

◆ f_upper() [1/2]

◆ f_upper() [2/2]

◆ get()

◆ goldensection()

◆ iterate() [1/2]

◆ iterate() [2/2]

◆ name() [1/2]

◆ name() [2/2]

◆ operator bool()

◆ operator!=()

◆ operator<()

◆ operator<=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator>()

◆ operator>=()

◆ quad_golden()

◆ set() [1/2]

◆ set() [2/2]

◆ set_with_values() [1/2]

◆ set_with_values() [2/2]

◆ swap()

◆ unique()

◆ use_count()

◆ x_lower() [1/2]

◆ x_lower() [2/2]

◆ x_minimum() [1/2]

◆ x_minimum() [2/2]

◆ x_upper() [1/2]

◆ x_upper() [2/2]

Member Data Documentation

◆ ccgsl_pointer

◆ count
