Workspace for fdfminimizer. More...

#include <multimin.hpp>

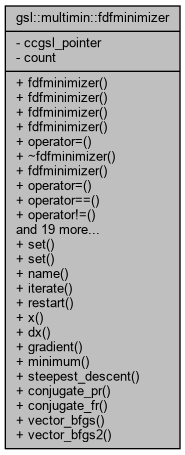

Collaboration diagram for gsl::multimin::fdfminimizer:

Public Member Functions
	fdfminimizer ()
	The default constructor is only really useful for assigning to. More...

	fdfminimizer (type const *T, size_t const n)
	The default constructor creates a new fdfminimizer with n elements. More...

	fdfminimizer (gsl_multimin_fdfminimizer *v)
	Could construct from a gsl_multimin_fminimizer. More...

	fdfminimizer (fdfminimizer const &v)
	The copy constructor. More...

fdfminimizer &	operator= (fdfminimizer const &v)
	The assignment operator. More...

	~fdfminimizer ()
	The destructor only deletes the pointers if count reaches zero. More...

	fdfminimizer (fdfminimizer &&v)
	Move constructor. More...

fdfminimizer &	operator= (fdfminimizer &&v)
	Move operator. More...

bool	operator== (fdfminimizer const &v) const
	Two fdfminimizer are identically equal if their elements are identical. More...

bool	operator!= (fdfminimizer const &v) const
	Two fdfminimizer are different if their elements are not identical. More...

bool	operator< (fdfminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator> (fdfminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator<= (fdfminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator>= (fdfminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	empty () const
	Find if the fdfminimizer is empty. More...

void	swap (fdfminimizer &v)
	Swap two fdfminimizer objects. More...

gsl_multimin_fdfminimizer *	get () const
	Get the gsl_multimin_fminimizer. More...

bool	unique () const
	Find if this is the only object sharing the gsl_multimin_fminimizer. More...

size_t	use_count () const
	Find how many fdfminimizer objects share this pointer. More...

	operator bool () const
	Allow conversion to bool. More...

int	set (function_fdf *fdf, vector const &x, double step_size, double tol)
	C++ version of gsl_multimin_fdfminimizer_set(). More...

int	set (function_fdf &fdf, vector const &x, double step_size, double tol)
	C++ version of gsl_multimin_fdfminimizer_set(). More...

char const *	name ()
	C++ version of gsl_multimin_fdfminimizer_name(). More...

int	iterate ()
	C++ version of gsl_multimin_fdfminimizer_iterate(). More...

int	restart ()
	C++ version of gsl_multimin_fdfminimizer_restart(). More...

vector	x ()
	C++ version of gsl_multimin_fdfminimizer_x(). More...

vector	dx ()
	C++ version of gsl_multimin_fdfminimizer_dx(). More...

vector	gradient ()
	C++ version of gsl_multimin_fdfminimizer_gradient(). More...

double	minimum ()
	C++ version of gsl_multimin_fdfminimizer_minimum(). More...

Static Public Member Functions
static int	set (fdfminimizer &s, function_fdf *fdf, vector const &x, double step_size, double tol)
	C++ version of gsl_multimin_fdfminimizer_set(). More...

static int	set (fdfminimizer &s, function_fdf &fdf, vector const &x, double step_size, double tol)
	C++ version of gsl_multimin_fdfminimizer_set(). More...

static char const *	name (fdfminimizer const &s)
	C++ version of gsl_multimin_fdfminimizer_name(). More...

static int	iterate (fdfminimizer &s)
	C++ version of gsl_multimin_fdfminimizer_iterate(). More...

static int	restart (fdfminimizer &s)
	C++ version of gsl_multimin_fdfminimizer_restart(). More...

static vector	x (fdfminimizer const &s)
	C++ version of gsl_multimin_fdfminimizer_x(). More...

static vector	dx (fdfminimizer const &s)
	C++ version of gsl_multimin_fdfminimizer_dx(). More...

static vector	gradient (fdfminimizer const &s)
	C++ version of gsl_multimin_fdfminimizer_gradient(). More...

static double	minimum (fdfminimizer const &s)
	C++ version of gsl_multimin_fdfminimizer_minimum(). More...

static type const *	steepest_descent ()
	Static type. More...

static type const *	conjugate_pr ()
	Static type. More...

static type const *	conjugate_fr ()
	Static type. More...

static type const *	vector_bfgs ()
	Static type. More...

static type const *	vector_bfgs2 ()
	Static type. More...

Private Types
typedef gsl_multimin_fdfminimizer_type	type
	Typedef. More...

Private Attributes
gsl_multimin_fdfminimizer *	ccgsl_pointer
	The shared pointer. More...

size_t *	count
	The shared reference count. More...

Detailed Description

Workspace for fdfminimizer.

Also functions as a namespace for fdfminimizer functions. This also allows for functions to be called on fminimizer as an object.

Definition at line 419 of file multimin.hpp.

Member Typedef Documentation

◆ type

typedef gsl_multimin_fdfminimizer_type gsl::multimin::fdfminimizer::type

private

Typedef.

Definition at line 423 of file multimin.hpp.

Constructor & Destructor Documentation

◆ fdfminimizer() [1/5]

gsl::multimin::fdfminimizer::fdfminimizer ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 428 of file multimin.hpp.

References ccgsl_pointer, and count.

Referenced by operator=().

◆ fdfminimizer() [2/5]

gsl::multimin::fdfminimizer::fdfminimizer	(	type const *	T,
		size_t const	n
	)

inlineexplicit

The default constructor creates a new fdfminimizer with n elements.

Parameters

T	The type of the fminimizer
n	The number of elements in the fdfminimizer

Definition at line 439 of file multimin.hpp.

References ccgsl_pointer, count, and gsl::rstat::n().

◆ fdfminimizer() [3/5]

gsl::multimin::fdfminimizer::fdfminimizer ( gsl_multimin_fdfminimizer * v )

inlineexplicit

Could construct from a gsl_multimin_fminimizer.

This is not usually a good idea. In this case we should not use gsl_multimin_fminimizer_free() to deallocate the memory.

Parameters

v	The fdfminimizer

Definition at line 455 of file multimin.hpp.

References ccgsl_pointer, and count.

◆ fdfminimizer() [4/5]

gsl::multimin::fdfminimizer::fdfminimizer ( fdfminimizer const & v )

inline

The copy constructor.

This creates a new reference to the workspace.

Parameters

v	The fdfminimizer to copy.

Definition at line 466 of file multimin.hpp.

References ccgsl_pointer, and count.

◆ ~fdfminimizer()

gsl::multimin::fdfminimizer::~fdfminimizer ( )

inline

The destructor only deletes the pointers if count reaches zero.

Definition at line 485 of file multimin.hpp.

References ccgsl_pointer, and count.

◆ fdfminimizer() [5/5]

gsl::multimin::fdfminimizer::fdfminimizer ( fdfminimizer && v )

inline

Move constructor.

Parameters

v	The fdfminimizer to move.

Definition at line 497 of file multimin.hpp.

References count.

Member Function Documentation

◆ conjugate_fr()

static type const * gsl::multimin::fdfminimizer::conjugate_fr ( )

inlinestatic

Static type.

Returns: the named fdfminimizer type

Definition at line 806 of file multimin.hpp.

◆ conjugate_pr()

static type const * gsl::multimin::fdfminimizer::conjugate_pr ( )

inlinestatic

Static type.

Returns: the named fdfminimizer type

Definition at line 801 of file multimin.hpp.

◆ dx() [1/2]

vector gsl::multimin::fdfminimizer::dx ( )

inline

C++ version of gsl_multimin_fdfminimizer_dx().

Returns: The vlaue of dx

Definition at line 769 of file multimin.hpp.

References get(), and gsl::vector::wrap_gsl_vector_without_ownership().

◆ dx() [2/2]

static vector gsl::multimin::fdfminimizer::dx ( fdfminimizer const & s )

inlinestatic

C++ version of gsl_multimin_fdfminimizer_dx().

Parameters

s	An fdfminimizer

Returns: The vlaue of dx

Definition at line 687 of file multimin.hpp.

References get(), and gsl::vector::wrap_gsl_vector_without_ownership().

◆ empty()

bool gsl::multimin::fdfminimizer::empty ( ) const

inline

Find if the fdfminimizer is empty.

Returns: true if has size zero; otherwise false

Definition at line 574 of file multimin.hpp.

References ccgsl_pointer.

◆ get()

gsl_multimin_fdfminimizer * gsl::multimin::fdfminimizer::get ( ) const

inline

Get the gsl_multimin_fminimizer.

Returns: the gsl_multimin_fminimizer

Definition at line 600 of file multimin.hpp.

References ccgsl_pointer.

Referenced by dx(), gradient(), iterate(), minimum(), name(), restart(), set(), and x().

◆ gradient() [1/2]

vector gsl::multimin::fdfminimizer::gradient ( )

inline

C++ version of gsl_multimin_fdfminimizer_gradient().

Returns: The current gradient estimate

Definition at line 779 of file multimin.hpp.

References get(), and gsl::vector::wrap_gsl_vector_without_ownership().

◆ gradient() [2/2]

static vector gsl::multimin::fdfminimizer::gradient ( fdfminimizer const & s )

inlinestatic

C++ version of gsl_multimin_fdfminimizer_gradient().

Parameters

s	An fdfminimizer

Returns: The current gradient estimate

Definition at line 698 of file multimin.hpp.

References get(), and gsl::vector::wrap_gsl_vector_without_ownership().

◆ iterate() [1/2]

int gsl::multimin::fdfminimizer::iterate ( )

inline

C++ version of gsl_multimin_fdfminimizer_iterate().

Returns: Error code on failure

Definition at line 745 of file multimin.hpp.

References get().

◆ iterate() [2/2]

static int gsl::multimin::fdfminimizer::iterate ( fdfminimizer & s )

inlinestatic

C++ version of gsl_multimin_fdfminimizer_iterate().

Parameters

s	An fdfminimizer

Returns: Error code on failure

Definition at line 660 of file multimin.hpp.

References get().

◆ minimum() [1/2]

double gsl::multimin::fdfminimizer::minimum ( )

inline

C++ version of gsl_multimin_fdfminimizer_minimum().

Returns: The current estimate of the function minimum

Definition at line 789 of file multimin.hpp.

References get().

◆ minimum() [2/2]

static double gsl::multimin::fdfminimizer::minimum ( fdfminimizer const & s )

inlinestatic

C++ version of gsl_multimin_fdfminimizer_minimum().

Parameters

s	An fdfminimizer

Returns: The current estimate of the function minimum

Definition at line 709 of file multimin.hpp.

References get().

◆ name() [1/2]

char const * gsl::multimin::fdfminimizer::name ( )

inline

C++ version of gsl_multimin_fdfminimizer_name().

Returns: The name of the minimizer

Definition at line 739 of file multimin.hpp.

References get().

◆ name() [2/2]

static char const * gsl::multimin::fdfminimizer::name ( fdfminimizer const & s )

inlinestatic

C++ version of gsl_multimin_fdfminimizer_name().

Parameters

s	An fdfminimizer

Returns: The name of the minimizer

Definition at line 652 of file multimin.hpp.

References get().

◆ operator bool()

gsl::multimin::fdfminimizer::operator bool ( ) const

inlineexplicit

Allow conversion to bool.

Returns: true or false according as this contains a pointer to a gsl_multimin_fminimizer.

Definition at line 620 of file multimin.hpp.

References ccgsl_pointer.

◆ operator!=()

bool gsl::multimin::fdfminimizer::operator!= ( fdfminimizer const & v ) const

inline

Two fdfminimizer are different if their elements are not identical.

Parameters

v	The fdfminimizer to be compared with `this`

Returns: false or true according as this and v have identical elements or not

Definition at line 527 of file multimin.hpp.

References operator==().

◆ operator<()

bool gsl::multimin::fdfminimizer::operator< ( fdfminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fdfminimizer is nonnegative.

Parameters

v	The fdfminimizer to be compared with `this`

Returns: false or true according as this is less than v lexicographically

Definition at line 539 of file multimin.hpp.

References ccgsl_pointer.

◆ operator<=()

bool gsl::multimin::fdfminimizer::operator<= ( fdfminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fdfminimizer is nonnegative.

Parameters

v	The fdfminimizer to be compared with `this`

Returns: false or true according as this is less than or equal to v lexicographically

Definition at line 559 of file multimin.hpp.

References ccgsl_pointer.

◆ operator=() [1/2]

fdfminimizer & gsl::multimin::fdfminimizer::operator= ( fdfminimizer && v )

inline

Move operator.

Parameters

v	The fdfminimizer to move.

Returns: A reference to this.

Definition at line 506 of file multimin.hpp.

References fdfminimizer().

◆ operator=() [2/2]

fdfminimizer & gsl::multimin::fdfminimizer::operator= ( fdfminimizer const & v )

inline

The assignment operator.

This copies elementwise.

Parameters

v	The fdfminimizer to copy

Definition at line 473 of file multimin.hpp.

References ccgsl_pointer, and count.

◆ operator==()

bool gsl::multimin::fdfminimizer::operator== ( fdfminimizer const & v ) const

inline

Two fdfminimizer are identically equal if their elements are identical.

Parameters

v	The fdfminimizer to be compared with `this`

Returns: true or false according as this and v have identical elements or not

Definition at line 519 of file multimin.hpp.

References ccgsl_pointer.

Referenced by operator!=().

◆ operator>()

bool gsl::multimin::fdfminimizer::operator> ( fdfminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fdfminimizer is nonnegative.

Parameters

v	The fdfminimizer to be compared with `this`

Returns: false or true according as this is greater than v lexicographically

Definition at line 549 of file multimin.hpp.

References ccgsl_pointer.

◆ operator>=()

bool gsl::multimin::fdfminimizer::operator>= ( fdfminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fdfminimizer is nonnegative.

Parameters

v	The fdfminimizer to be compared with `this`

Returns: false or true according as this is no less than v lexicographically

Definition at line 569 of file multimin.hpp.

References ccgsl_pointer.

◆ restart() [1/2]

int gsl::multimin::fdfminimizer::restart ( )

inline

C++ version of gsl_multimin_fdfminimizer_restart().

Returns: Error code on failure

Definition at line 752 of file multimin.hpp.

References get().

◆ restart() [2/2]

static int gsl::multimin::fdfminimizer::restart ( fdfminimizer & s )

inlinestatic

C++ version of gsl_multimin_fdfminimizer_restart().

Parameters

s	An fdfminimizer

Returns: Error code on failure

Definition at line 668 of file multimin.hpp.

References get().

◆ set() [1/4]

static int gsl::multimin::fdfminimizer::set	(	fdfminimizer &	s,
		function_fdf &	fdf,
		vector const &	x,
		double	step_size,
		double	tol
	)

inlinestatic

C++ version of gsl_multimin_fdfminimizer_set().

Parameters

s	An fdfminimizer
fdf	An fdfunction
x	A vector argument
step_size	The step size
tol	The tolerance of the line search method

Returns: Error code on failure

Definition at line 643 of file multimin.hpp.

References gsl::vector::get(), get(), and x().

◆ set() [2/4]

static int gsl::multimin::fdfminimizer::set	(	fdfminimizer &	s,
		function_fdf *	fdf,
		vector const &	x,
		double	step_size,
		double	tol
	)

inlinestatic

C++ version of gsl_multimin_fdfminimizer_set().

Parameters

s	An fdfminimizer
fdf	An fdfunction
x	A vector argument
step_size	The step size
tol	The tolerance of the line search method

Returns: Error code on failure

Definition at line 631 of file multimin.hpp.

References gsl::vector::get(), get(), and x().

◆ set() [3/4]

int gsl::multimin::fdfminimizer::set	(	function_fdf &	fdf,
		vector const &	x,
		double	step_size,
		double	tol
	)

inline

C++ version of gsl_multimin_fdfminimizer_set().

Parameters

fdf	An fdfunction
x	A vector argument
step_size	The step size
tol	The tolerance of the line search method

Returns: Error code on failure

Definition at line 731 of file multimin.hpp.

References gsl::vector::get(), get(), and x().

◆ set() [4/4]

int gsl::multimin::fdfminimizer::set	(	function_fdf *	fdf,
		vector const &	x,
		double	step_size,
		double	tol
	)

inline

C++ version of gsl_multimin_fdfminimizer_set().

Parameters

fdf	An fdfunction
x	A vector argument
step_size	The step size
tol	The tolerance of the line search method

Returns: Error code on failure

Definition at line 720 of file multimin.hpp.

References gsl::vector::get(), get(), and x().

◆ steepest_descent()

static type const * gsl::multimin::fdfminimizer::steepest_descent ( )

inlinestatic

Static type.

Returns: the named fdfminimizer type

Definition at line 796 of file multimin.hpp.

◆ swap()

void gsl::multimin::fdfminimizer::swap ( fdfminimizer & v )

inline

Swap two fdfminimizer objects.

This works even if the fdfminimizer have different sizes because it swaps pointers.

Parameters

v	The fdfminimizer to swap with `this`.

Definition at line 581 of file multimin.hpp.

References ccgsl_pointer, and count.

◆ unique()

bool gsl::multimin::fdfminimizer::unique ( ) const

inline

Find if this is the only object sharing the gsl_multimin_fminimizer.

Returns: true or falses according as this is the only workspace object sharing the gsl_multimin_fminimizer.

Definition at line 606 of file multimin.hpp.

References count.

◆ use_count()

size_t gsl::multimin::fdfminimizer::use_count ( ) const

inline

Find how many fdfminimizer objects share this pointer.

Returns: the number of workspace objects that share this pointer.

Definition at line 611 of file multimin.hpp.

References count.

◆ vector_bfgs()

static type const * gsl::multimin::fdfminimizer::vector_bfgs ( )

inlinestatic

Static type.

Returns: the named fdfminimizer type

Definition at line 811 of file multimin.hpp.

◆ vector_bfgs2()

static type const * gsl::multimin::fdfminimizer::vector_bfgs2 ( )

inlinestatic

Static type.

Returns: the named fdfminimizer type

Definition at line 816 of file multimin.hpp.

◆ x() [1/2]

vector gsl::multimin::fdfminimizer::x ( )

inline

C++ version of gsl_multimin_fdfminimizer_x().

Returns: The current value of the argmin estimate

Definition at line 759 of file multimin.hpp.

References get(), and gsl::vector::wrap_gsl_vector_without_ownership().

Referenced by set().

◆ x() [2/2]

static vector gsl::multimin::fdfminimizer::x ( fdfminimizer const & s )

inlinestatic

C++ version of gsl_multimin_fdfminimizer_x().

Parameters

s	An fdfminimizer

Returns: The current value of the argmin estimate

Definition at line 676 of file multimin.hpp.

References get(), and gsl::vector::wrap_gsl_vector_without_ownership().

Member Data Documentation

◆ ccgsl_pointer

gsl_multimin_fdfminimizer* gsl::multimin::fdfminimizer::ccgsl_pointer

private

The shared pointer.

Definition at line 589 of file multimin.hpp.

Referenced by empty(), fdfminimizer(), get(), operator bool(), operator<(), operator<=(), operator=(), operator==(), operator>(), operator>=(), swap(), and ~fdfminimizer().

◆ count

size_t* gsl::multimin::fdfminimizer::count

private

The shared reference count.

Definition at line 593 of file multimin.hpp.

Referenced by fdfminimizer(), operator=(), swap(), unique(), use_count(), and ~fdfminimizer().

The documentation for this class was generated from the following file:

multimin.hpp

Public Member Functions

Static Public Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ type

Constructor & Destructor Documentation

◆ fdfminimizer() [1/5]

◆ fdfminimizer() [2/5]

◆ fdfminimizer() [3/5]

◆ fdfminimizer() [4/5]

◆ ~fdfminimizer()

◆ fdfminimizer() [5/5]

Member Function Documentation

◆ conjugate_fr()

◆ conjugate_pr()

◆ dx() [1/2]

◆ dx() [2/2]

◆ empty()

◆ get()

◆ gradient() [1/2]

◆ gradient() [2/2]

◆ iterate() [1/2]

◆ iterate() [2/2]

◆ minimum() [1/2]

◆ minimum() [2/2]

◆ name() [1/2]

◆ name() [2/2]

◆ operator bool()

◆ operator!=()

◆ operator<()

◆ operator<=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator>()

◆ operator>=()

◆ restart() [1/2]

◆ restart() [2/2]

◆ set() [1/4]

◆ set() [2/4]

◆ set() [3/4]

◆ set() [4/4]

◆ steepest_descent()

◆ swap()

◆ unique()

◆ use_count()

◆ vector_bfgs()

◆ vector_bfgs2()

◆ x() [1/2]

◆ x() [2/2]

Member Data Documentation

◆ ccgsl_pointer

◆ count
