Workspace for fminimizer. More...

#include <multimin.hpp>

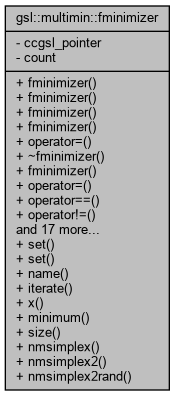

Collaboration diagram for gsl::multimin::fminimizer:

Public Member Functions
	fminimizer ()
	The default constructor is only really useful for assigning to. More...

	fminimizer (type const *T, size_t const n)
	The default constructor creates a new fminimizer with n elements. More...

	fminimizer (gsl_multimin_fminimizer *v)
	Could construct from a gsl_multimin_fminimizer. More...

	fminimizer (fminimizer const &v)
	The copy constructor. More...

fminimizer &	operator= (fminimizer const &v)
	The assignment operator. More...

	~fminimizer ()
	The destructor only deletes the pointers if count reaches zero. More...

	fminimizer (fminimizer &&v)
	Move constructor. More...

fminimizer &	operator= (fminimizer &&v)
	Move operator. More...

bool	operator== (fminimizer const &v) const
	Two fminimizer are identically equal if their elements are identical. More...

bool	operator!= (fminimizer const &v) const
	Two fminimizer are different if their elements are not identical. More...

bool	operator< (fminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator> (fminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator<= (fminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator>= (fminimizer const &v) const
	A container needs to define an ordering for sorting. More...

bool	empty () const
	Find if the fminimizer is empty. More...

void	swap (fminimizer &v)
	Swap two fminimizer objects. More...

gsl_multimin_fminimizer *	get () const
	Get the gsl_multimin_fminimizer. More...

bool	unique () const
	Find if this is the only object sharing the gsl_multimin_fminimizer. More...

size_t	use_count () const
	Find how many fminimizer objects share this pointer. More...

	operator bool () const
	Allow conversion to bool. More...

int	set (multimin::function &f, vector const &x, vector const &step_size)
	C++ version of gsl_multimin_fminimizer_set(). More...

int	set (gsl_multimin_function *f, vector const &x, vector const &step_size)
	C++ version of gsl_multimin_fminimizer_set(). More...

char const *	name ()
	C++ version of gsl_multimin_fminimizer_name(). More...

int	iterate ()
	C++ version of gsl_multimin_fminimizer_iterate(). More...

vector	x ()
	C++ version of gsl_multimin_fminimizer_x(). More...

double	minimum ()
	C++ version of gsl_multimin_fminimizer_minimum(). More...

double	size ()
	C++ version of gsl_multimin_fminimizer_size(). More...

Static Public Member Functions
static int	set (fminimizer &s, multimin::function &f, vector const &x, vector const &step_size)
	C++ version of gsl_multimin_fminimizer_set(). More...

static int	set (fminimizer &s, gsl_multimin_function *f, vector const &x, vector const &step_size)
	C++ version of gsl_multimin_fminimizer_set(). More...

static char const *	name (fminimizer const &s)
	C++ version of gsl_multimin_fminimizer_name(). More...

static int	iterate (fminimizer &s)
	C++ version of gsl_multimin_fminimizer_iterate(). More...

static vector	x (fminimizer const &s)
	C++ version of gsl_multimin_fminimizer_x(). More...

static double	minimum (fminimizer const &s)
	C++ version of gsl_multimin_fminimizer_minimum(). More...

static double	size (fminimizer const &s)
	C++ version of gsl_multimin_fminimizer_size(). More...

static type const *	nmsimplex ()
	Static type. More...

static type const *	nmsimplex2 ()
	Static type. More...

static type const *	nmsimplex2rand ()
	Static type. More...

Private Types
typedef gsl_multimin_fminimizer_type	type
	Typedef. More...

Private Attributes
gsl_multimin_fminimizer *	ccgsl_pointer
	The shared pointer. More...

size_t *	count
	The shared reference count. More...

Detailed Description

Workspace for fminimizer.

Also functions as a namespace for fminimizer functions. This also allows for functions to be called on fminimizer as an object.

Definition at line 54 of file multimin.hpp.

Member Typedef Documentation

◆ type

typedef gsl_multimin_fminimizer_type gsl::multimin::fminimizer::type

private

Typedef.

Definition at line 58 of file multimin.hpp.

Constructor & Destructor Documentation

◆ fminimizer() [1/5]

gsl::multimin::fminimizer::fminimizer ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 63 of file multimin.hpp.

References ccgsl_pointer, and count.

Referenced by operator=().

◆ fminimizer() [2/5]

gsl::multimin::fminimizer::fminimizer	(	type const *	T,
		size_t const	n
	)

inlineexplicit

The default constructor creates a new fminimizer with n elements.

Parameters

T	The type of the fminimizer
n	The number of elements in the fminimizer (dimension of the function)

Definition at line 74 of file multimin.hpp.

References ccgsl_pointer, count, and gsl::rstat::n().

◆ fminimizer() [3/5]

gsl::multimin::fminimizer::fminimizer ( gsl_multimin_fminimizer * v )

inlineexplicit

Could construct from a gsl_multimin_fminimizer.

This is not usually a good idea. In this case we should not use gsl_multimin_fminimizer_free() to deallocate the memory.

Parameters

v	The fminimizer

Definition at line 90 of file multimin.hpp.

References ccgsl_pointer, and count.

◆ fminimizer() [4/5]

gsl::multimin::fminimizer::fminimizer ( fminimizer const & v )

inline

The copy constructor.

This creates a new reference to the workspace.

Parameters

v	The fminimizer to copy.

Definition at line 101 of file multimin.hpp.

References ccgsl_pointer, and count.

◆ ~fminimizer()

gsl::multimin::fminimizer::~fminimizer ( )

inline

The destructor only deletes the pointers if count reaches zero.

Definition at line 120 of file multimin.hpp.

References ccgsl_pointer, and count.

◆ fminimizer() [5/5]

gsl::multimin::fminimizer::fminimizer ( fminimizer && v )

inline

Move constructor.

Parameters

v	The fminimizer to move.

Definition at line 132 of file multimin.hpp.

References count.

Member Function Documentation

◆ empty()

bool gsl::multimin::fminimizer::empty ( ) const

inline

Find if the fminimizer is empty.

Returns: true if has size zero; otherwise false

Definition at line 209 of file multimin.hpp.

References ccgsl_pointer.

◆ get()

gsl_multimin_fminimizer * gsl::multimin::fminimizer::get ( ) const

inline

Get the gsl_multimin_fminimizer.

Returns: the gsl_multimin_fminimizer

Definition at line 235 of file multimin.hpp.

References ccgsl_pointer.

Referenced by iterate(), minimum(), name(), set(), size(), and x().

◆ iterate() [1/2]

int gsl::multimin::fminimizer::iterate ( )

inline

C++ version of gsl_multimin_fminimizer_iterate().

Returns: Error code on failure.

Definition at line 349 of file multimin.hpp.

References get().

◆ iterate() [2/2]

static int gsl::multimin::fminimizer::iterate ( fminimizer & s )

inlinestatic

C++ version of gsl_multimin_fminimizer_iterate().

Parameters

s	The fminimizer.

Returns: Error code on failure.

Definition at line 293 of file multimin.hpp.

References get().

◆ minimum() [1/2]

double gsl::multimin::fminimizer::minimum ( )

inline

C++ version of gsl_multimin_fminimizer_minimum().

Returns: The value of f at the value of x that is estimated to minimise f.

Definition at line 364 of file multimin.hpp.

References get().

◆ minimum() [2/2]

static double gsl::multimin::fminimizer::minimum ( fminimizer const & s )

inlinestatic

C++ version of gsl_multimin_fminimizer_minimum().

Parameters

s	The fminimizer.

Returns: The value of f at the value of x that is estimated to minimise f.

Definition at line 311 of file multimin.hpp.

References get().

◆ name() [1/2]

char const * gsl::multimin::fminimizer::name ( )

inline

C++ version of gsl_multimin_fminimizer_name().

Returns: The name of the fminimizer.

Definition at line 344 of file multimin.hpp.

References get().

◆ name() [2/2]

static char const * gsl::multimin::fminimizer::name ( fminimizer const & s )

inlinestatic

C++ version of gsl_multimin_fminimizer_name().

Parameters

s	The fminimizer.

Returns: The name of the fminimizer.

Definition at line 285 of file multimin.hpp.

References get().

◆ nmsimplex()

static type const * gsl::multimin::fminimizer::nmsimplex ( )

inlinestatic

Static type.

Returns: the named fminimizer type

Definition at line 379 of file multimin.hpp.

◆ nmsimplex2()

static type const * gsl::multimin::fminimizer::nmsimplex2 ( )

inlinestatic

Static type.

Returns: the named fminimizer type

Definition at line 384 of file multimin.hpp.

◆ nmsimplex2rand()

static type const * gsl::multimin::fminimizer::nmsimplex2rand ( )

inlinestatic

Static type.

Returns: the named fminimizer type

Definition at line 389 of file multimin.hpp.

◆ operator bool()

gsl::multimin::fminimizer::operator bool ( ) const

inlineexplicit

Allow conversion to bool.

Returns: true or false according as this contains a pointer to a gsl_multimin_fminimizer.

Definition at line 255 of file multimin.hpp.

References ccgsl_pointer.

◆ operator!=()

bool gsl::multimin::fminimizer::operator!= ( fminimizer const & v ) const

inline

Two fminimizer are different if their elements are not identical.

Parameters

v	The fminimizer to be compared with `this`

Returns: false or true according as this and v have identical elements or not

Definition at line 162 of file multimin.hpp.

References operator==().

◆ operator<()

bool gsl::multimin::fminimizer::operator< ( fminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fminimizer is nonnegative.

Parameters

v	The fminimizer to be compared with `this`

Returns: false or true according as this is less than v lexicographically

Definition at line 174 of file multimin.hpp.

References ccgsl_pointer.

◆ operator<=()

bool gsl::multimin::fminimizer::operator<= ( fminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fminimizer is nonnegative.

Parameters

v	The fminimizer to be compared with `this`

Returns: false or true according as this is less than or equal to v lexicographically

Definition at line 194 of file multimin.hpp.

References ccgsl_pointer.

◆ operator=() [1/2]

fminimizer & gsl::multimin::fminimizer::operator= ( fminimizer && v )

inline

Move operator.

Parameters

v	The fminimizer to move.

Returns: A reference to this.

Definition at line 141 of file multimin.hpp.

References fminimizer().

◆ operator=() [2/2]

fminimizer & gsl::multimin::fminimizer::operator= ( fminimizer const & v )

inline

The assignment operator.

This copies elementwise.

Parameters

v	The fminimizer to copy

Definition at line 108 of file multimin.hpp.

References ccgsl_pointer, and count.

◆ operator==()

bool gsl::multimin::fminimizer::operator== ( fminimizer const & v ) const

inline

Two fminimizer are identically equal if their elements are identical.

Parameters

v	The fminimizer to be compared with `this`

Returns: true or false according as this and v have identical elements or not

Definition at line 154 of file multimin.hpp.

References ccgsl_pointer.

Referenced by operator!=().

◆ operator>()

bool gsl::multimin::fminimizer::operator> ( fminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fminimizer is nonnegative.

Parameters

v	The fminimizer to be compared with `this`

Returns: false or true according as this is greater than v lexicographically

Definition at line 184 of file multimin.hpp.

References ccgsl_pointer.

◆ operator>=()

bool gsl::multimin::fminimizer::operator>= ( fminimizer const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fminimizer is nonnegative.

Parameters

v	The fminimizer to be compared with `this`

Returns: false or true according as this is no less than v lexicographically

Definition at line 204 of file multimin.hpp.

References ccgsl_pointer.

◆ set() [1/4]

static int gsl::multimin::fminimizer::set	(	fminimizer &	s,
		gsl_multimin_function *	f,
		vector const &	x,
		vector const &	step_size
	)

inlinestatic

C++ version of gsl_multimin_fminimizer_set().

Parameters

s	The fminimizer.
f	The function.
x	The initial starting point.
step_size	The size of the first trial step.

Returns: Error code on failure.

Definition at line 276 of file multimin.hpp.

References gsl::vector::get(), get(), and x().

◆ set() [2/4]

static int gsl::multimin::fminimizer::set	(	fminimizer &	s,
		multimin::function &	f,
		vector const &	x,
		vector const &	step_size
	)

inlinestatic

C++ version of gsl_multimin_fminimizer_set().

Parameters

s	The fminimizer.
f	The function.
x	The initial starting point.
step_size	The size of the first trial step.

Returns: Error code on failure.

Definition at line 265 of file multimin.hpp.

References gsl::vector::get(), get(), and x().

◆ set() [3/4]

int gsl::multimin::fminimizer::set	(	gsl_multimin_function *	f,
		vector const &	x,
		vector const &	step_size
	)

inline

C++ version of gsl_multimin_fminimizer_set().

Parameters

f	The function.
x	The initial starting point.
step_size	The size of the first trial step.

Returns: Error code on failure.

Definition at line 338 of file multimin.hpp.

References gsl::vector::get(), get(), and x().

◆ set() [4/4]

int gsl::multimin::fminimizer::set	(	multimin::function &	f,
		vector const &	x,
		vector const &	step_size
	)

inline

C++ version of gsl_multimin_fminimizer_set().

Parameters

f	The function.
x	The initial starting point.
step_size	The size of the first trial step.

Returns: Error code on failure.

Definition at line 329 of file multimin.hpp.

References gsl::vector::get(), get(), and x().

◆ size() [1/2]

double gsl::multimin::fminimizer::size ( )

inline

C++ version of gsl_multimin_fminimizer_size().

Returns: The estimate of size.

Definition at line 371 of file multimin.hpp.

References get().

◆ size() [2/2]

static double gsl::multimin::fminimizer::size ( fminimizer const & s )

inlinestatic

C++ version of gsl_multimin_fminimizer_size().

Parameters

s	The fminimizer.

Returns: The estimate of size.

Definition at line 320 of file multimin.hpp.

References get().

◆ swap()

void gsl::multimin::fminimizer::swap ( fminimizer & v )

inline

Swap two fminimizer objects.

This works even if the fminimizer have different sizes because it swaps pointers.

Parameters

v	The fminimizer to swap with `this`.

Definition at line 216 of file multimin.hpp.

References ccgsl_pointer, and count.

◆ unique()

bool gsl::multimin::fminimizer::unique ( ) const

inline

Find if this is the only object sharing the gsl_multimin_fminimizer.

Returns: true or falses according as this is the only workspace object sharing the gsl_multimin_fminimizer.

Definition at line 241 of file multimin.hpp.

References count.

◆ use_count()

size_t gsl::multimin::fminimizer::use_count ( ) const

inline

Find how many fminimizer objects share this pointer.

Returns: the number of workspace objects that share this pointer.

Definition at line 246 of file multimin.hpp.

References count.

◆ x() [1/2]

vector gsl::multimin::fminimizer::x ( )

inline

C++ version of gsl_multimin_fminimizer_x().

Returns: The estimate of x that minimises f.

Definition at line 355 of file multimin.hpp.

References get(), and gsl::vector::wrap_gsl_vector_without_ownership().

Referenced by set().

◆ x() [2/2]

static vector gsl::multimin::fminimizer::x ( fminimizer const & s )

inlinestatic

C++ version of gsl_multimin_fminimizer_x().

Parameters

s	The fminimizer.

Returns: The estimate of x that minimises f.

Definition at line 301 of file multimin.hpp.

References get(), and gsl::vector::wrap_gsl_vector_without_ownership().

Member Data Documentation

◆ ccgsl_pointer

gsl_multimin_fminimizer* gsl::multimin::fminimizer::ccgsl_pointer

private

The shared pointer.

Definition at line 224 of file multimin.hpp.

Referenced by empty(), fminimizer(), get(), operator bool(), operator<(), operator<=(), operator=(), operator==(), operator>(), operator>=(), swap(), and ~fminimizer().

◆ count

size_t* gsl::multimin::fminimizer::count

private

The shared reference count.

Definition at line 228 of file multimin.hpp.

Referenced by fminimizer(), operator=(), swap(), unique(), use_count(), and ~fminimizer().

The documentation for this class was generated from the following file:

multimin.hpp

Public Member Functions

Static Public Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ type

Constructor & Destructor Documentation

◆ fminimizer() [1/5]

◆ fminimizer() [2/5]

◆ fminimizer() [3/5]

◆ fminimizer() [4/5]

◆ ~fminimizer()

◆ fminimizer() [5/5]

Member Function Documentation

◆ empty()

◆ get()

◆ iterate() [1/2]

◆ iterate() [2/2]

◆ minimum() [1/2]

◆ minimum() [2/2]

◆ name() [1/2]

◆ name() [2/2]

◆ nmsimplex()

◆ nmsimplex2()

◆ nmsimplex2rand()

◆ operator bool()

◆ operator!=()

◆ operator<()

◆ operator<=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator>()

◆ operator>=()

◆ set() [1/4]

◆ set() [2/4]

◆ set() [3/4]

◆ set() [4/4]

◆ size() [1/2]

◆ size() [2/2]

◆ swap()

◆ unique()

◆ use_count()

◆ x() [1/2]

◆ x() [2/2]

Member Data Documentation

◆ ccgsl_pointer

◆ count
