gsl::multiroot::function Class Reference

Class that extends gsl_multiroot_function so that it can be constructed from arbitrary function objects. More...

#include <multiroot_function.hpp>

Inheritance diagram for gsl::multiroot::function:

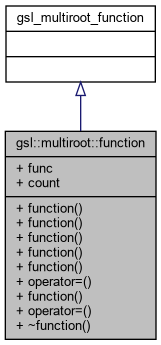

Collaboration diagram for gsl::multiroot::function:

Classes
struct	Concept
	This is an empty abstract base class. More...

Public Member Functions
	function ()
	The default constructor is only really useful for assigning to. More...
	function (gsl_multiroot_function &v)
	Could construct from a gsl_multiroot_function. More...
template<typename T >
	function (T &t)
	Construct from an object that implements gsl::multiroot::function::Concept. More...
	function (int(*const f)(gsl::vector const &, gsl::vector &), size_t n)
	Construct from a function with no parameters (but with n function values and arguments). More...
	function (function const &v)
	The copy constructor. More...
function &	operator= (function const &v)
	The assignment operator. More...
	function (function &&v)
	Move constructor. More...
function &	operator= (function &&v)
	Move operator. More...
	~function ()
	The destructor unshares any shared resource. More...

Public Attributes
base_F *	func
	This gives something for params to point to. More...
size_t *	count
	The shared reference count: used for copying this. More...

Friends
template<typename T >
void	function_constructor (function &, T &)

Detailed Description

Class that extends gsl_multiroot_function so that it can be constructed from arbitrary function objects.

Since gsl::multiroot::function is a subclass of gsl_multiroot_function, a pointer to an object of this class can be used whenever a pointer to a gsl_multiroot_function object is required. Thus, pointers to objects of this class can be used directly with the GNU Scientific Library.

A multiroot::function with argument a vector of length n should compute and return n function values. In C++ it is straightforward to set up a class with a member function that implements multiroot::function::Concept to get a suitable function object. The multiroot::function can then be constructed from a function object of this class.

Definition at line 53 of file multiroot_function.hpp.

Constructor & Destructor Documentation

function() [1/6]

gsl::multiroot::function::function ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 256 of file multiroot_function.hpp.

References count, func, and gsl::rstat::n().

function() [2/6]

gsl::multiroot::function::function ( gsl_multiroot_function &  v )

inlineexplicit

Could construct from a gsl_multiroot_function.

This constructor is not actually visible, but gsl::multiroot::function<T>() will construct the object correctly.

Parameters

v	The gsl_multiroot_function.

Definition at line 271 of file multiroot_function.hpp.

References count, func, and gsl::rstat::n().

function() [3/6]

template<typename T >

gsl::multiroot::function::function ( T &  t )

inline

Construct from an object that implements gsl::multiroot::function::Concept.

Parameters

t	An object that implements gsl::multiroot::function::Concept.

Definition at line 287 of file multiroot_function.hpp.

function() [4/6]

gsl::multiroot::function::function ( int(*)(gsl::vector const &, gsl::vector &)  f, size_t  n  )

inline

Construct from a function with no parameters (but with n function values and arguments).

Parameters

f	The function to construct from.
n	The number of functions and number of arguments of each.

Definition at line 293 of file multiroot_function.hpp.

References count, func, and gsl::rstat::n().

function() [5/6]

gsl::multiroot::function::function ( function const &  v )

inline

The copy constructor.

This shares f. This constructor is not actually visible, but gsl::multiroot::function::multiroot::function<T>() will construct the object correctly.

Parameters

v	The function to copy.

Definition at line 312 of file multiroot_function.hpp.

References count, and gsl::rstat::n().

function() [6/6]

gsl::multiroot::function::function ( function &&  v )

inline

Move constructor.

Parameters

v	The function to move.

Definition at line 343 of file multiroot_function.hpp.

References count, and gsl::rstat::n().

~function()

gsl::multiroot::function::~function ( )

inline

The destructor unshares any shared resource.

Definition at line 367 of file multiroot_function.hpp.

References count, and func.

Member Function Documentation

operator=() [1/2]

function & gsl::multiroot::function::operator= ( function &&  v )

inline

Move operator.

Parameters

v	The function to move.

Returns

A reference to f in this.

Definition at line 355 of file multiroot_function.hpp.

References count, func, and gsl::rstat::n().

operator=() [2/2]

function & gsl::multiroot::function::operator= ( function const &  v )

inline

The assignment operator.

This makes a shared copy.

Parameters

v	The function to copy

Definition at line 323 of file multiroot_function.hpp.

References count, func, and gsl::rstat::n().

Friends And Related Function Documentation

function_constructor

template<typename T >

void function_constructor ( function &  , T &    )

friend

Member Data Documentation

count

size_t* gsl::multiroot::function::count

The shared reference count: used for copying this.

Definition at line 251 of file multiroot_function.hpp.

Referenced by function(), operator=(), and ~function().

func

base_F* gsl::multiroot::function::func

This gives something for params to point to.

Definition at line 247 of file multiroot_function.hpp.

Referenced by function(), operator=(), and ~function().

---

The documentation for this class was generated from the following file:

• multiroot_function.hpp
