This class represents a variable. More...

#include <Variable.hpp>

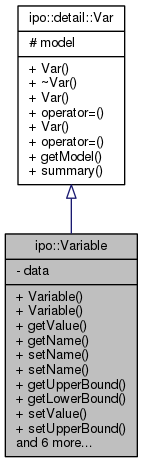

Inheritance diagram for ipo::Variable:

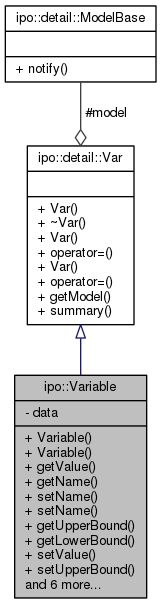

Collaboration diagram for ipo::Variable:

Classes
struct	Data
	Struct to contain Variable data. More...

Public Member Functions
	Variable (detail::ModelBase &model, char const *const name=nullptr)
	Default constructor creates a named variable with the given name, initial value 0 and unbounded. More...

	Variable (detail::ModelBase &model, std::string const &name)
	Constructor creates a named variable with the given name, initial value 0 and unbounded. More...

double	getValue () const
	Get value of variable. More...

std::string	getName () const
	Get name of variable. More...

void	setName (std::string const &name)
	Set name of variable. More...

void	setName (char *const name)
	Set name of variable. More...

double	getUpperBound () const
	Get upper bound of variable. More...

double	getLowerBound () const
	Get lower bound of variable. More...

void	setValue (double const value)
	Set value of variable. More...

void	setUpperBound (double const upperBound)
	Set upper bound of variable. More...

void	setLowerBound (double const lowerBound)
	Set lower bound of variable. More...

	Variable (Variable const &variable)
	Copy constructor. More...

Variable &	operator= (Variable const &variable)
	Copy assignment operator. More...

	Variable (Variable &&variable)
	Move constructor. More...

Variable &	operator= (Variable &&variable)
	Move assignment operator. More...

virtual void	summary (std::ostream &ostream=std::cout, std::string const &prefix="") const override
	Create a summary of this variable. More...

Public Member Functions inherited from ipo::detail::Var
	Var (ModelBase &model)
	Constructor needs a model so that variable can only be attached to one model. More...

virtual	~Var ()=0
	Virtual destructor to make class abstract. More...

	Var (Var &var)
	Copy constructor. More...

Var &	operator= (Var &var)
	Copy assignment operator. More...

	Var (Var &&var)
	Move constructor. More...

Var &	operator= (Var &&var)
	Move assignment operator. More...

ModelBase const *const	getModel () const
	Get pointer to model. More...

Private Attributes
std::shared_ptr< Data >	data
	The Variable data as a shared pointer. More...

Friends
bool	ipo::operator== (Variable const &, Variable const &)

bool	ipo::operator< (Variable const &, Variable const &)

Additional Inherited Members
Protected Attributes inherited from ipo::detail::Var
ModelBase &	model
	A Model to attach this to. More...

Detailed Description

This class represents a variable.

A variable has optionally a name and bounds. A Variable contains a shared pointer to its data so that it is safe and inexpensive to copy Variable objects, put them in arrays, pass them as function values, and the like.

Definition at line 36 of file Variable.hpp.

Constructor & Destructor Documentation

Variable::Variable	(	detail::ModelBase &	model,
		char const *const	name = `nullptr`
	)

Default constructor creates a named variable with the given name, initial value 0 and unbounded.

Parameters

model	The Model
name	The name

Definition at line 28 of file Variable.cc.

References ipo::detail::Var::model.

Variable::Variable	(	detail::ModelBase &	model,
		std::string const &	name
	)

Constructor creates a named variable with the given name, initial value 0 and unbounded.

Parameters

model	The Model
name	The name

Definition at line 33 of file Variable.cc.

Variable::Variable ( Variable const & variable )

Copy constructor.

Parameters

variable The variable to be moved

Definition at line 135 of file Variable.cc.

ipo::Variable::Variable ( Variable && variable )

inline

Move constructor.

Parameters

variable The variable to be moved

Definition at line 114 of file Variable.hpp.

Member Function Documentation

double Variable::getLowerBound ( ) const

Get lower bound of variable.

Definition at line 59 of file Variable.cc.

References data.

Referenced by setUpperBound(), setValue(), and summary().

std::string Variable::getName ( ) const

Get name of variable.

Returns: name of variable.

Definition at line 49 of file Variable.cc.

References data.

Referenced by ipo::Objective::addVariable(), ipo::LinearConstraint::getCoefficient(), ipo::Objective::removeVariable(), ipo::LinearConstraint::setCoefficient(), ipo::detail::PhaseIModel::setIndices(), and summary().

double Variable::getUpperBound ( ) const

Get upper bound of variable.

Definition at line 54 of file Variable.cc.

References data.

Referenced by setLowerBound(), setValue(), and summary().

double Variable::getValue ( ) const

Get value of variable.

Definition at line 44 of file Variable.cc.

References data.

Referenced by ipo::Model::isFeasible(), ipo::Model::isStrictlyFeasible(), setLowerBound(), setUpperBound(), and summary().

Variable & Variable::operator= ( Variable const & variable )

Copy assignment operator.

Parameters

variable The variable to be copied

Returns: *this

Definition at line 128 of file Variable.cc.

References data, IPOE, and ipo::detail::Var::model.

Variable & Variable::operator= ( Variable && variable )

Move assignment operator.

Parameters

variable The variable to be moved

Returns: *this

Definition at line 141 of file Variable.cc.

References data, IPOE, and ipo::detail::Var::model.

void Variable::setLowerBound ( double const lowerBound )

Set lower bound of variable.

This may invalidate value set if the value is less than the lower bound.

Parameters

lowerBound The new lower bound.

Exceptions

IPOException if new lower bound exceeds upper bound

Definition at line 105 of file Variable.cc.

References data, getUpperBound(), getValue(), IPOE, and lowerBound.

void Variable::setName ( std::string const & name )

Set name of variable.

Parameters

name	The new name.

Definition at line 82 of file Variable.cc.

References data, and name.

void Variable::setName ( char *const name )

Set name of variable.

Parameters

name	The new name.

Definition at line 87 of file Variable.cc.

References data.

void Variable::setUpperBound ( double const upperBound )

Set upper bound of variable.

This may invalidate value set if the value is not less than the upper bound.

Parameters

upperBound The new upper bound.

Exceptions

IPOException if lower bound exceeds new upper bound

Definition at line 92 of file Variable.cc.

References data, getLowerBound(), getValue(), IPOE, and upperBound.

void Variable::setValue ( double const value )

Set value of variable.

Parameters

value The new value.

Exceptions

IPOException if value is not between bounds.

Definition at line 64 of file Variable.cc.

References data, getLowerBound(), getUpperBound(), and IPOE.

Referenced by ipo::detail::PhaseIModel::findEqualityConstraintFeasibleSolution().

void Variable::summary	(	std::ostream &	ostream = `std::cout`,
		std::string const &	prefix = `""`
	)		const

overridevirtual

Create a summary of this variable.

Parameters

ostream	The stream to print to.
prefix	This is put in front of every row of output, for example for indentation

Implements ipo::detail::Var.

Definition at line 149 of file Variable.cc.

References getLowerBound(), getName(), getUpperBound(), getValue(), and ipo::format::infinity.

Friends And Related Function Documentation

bool ipo::operator<	(	Variable const &	,
		Variable const &
	)

friend

bool ipo::operator==	(	Variable const &	,
		Variable const &
	)

friend

Member Data Documentation

std::shared_ptr<Data> ipo::Variable::data

private

The Variable data as a shared pointer.

Definition at line 154 of file Variable.hpp.

Referenced by getLowerBound(), getName(), getUpperBound(), getValue(), ipo::operator<(), operator=(), ipo::operator==(), setLowerBound(), setName(), setUpperBound(), and setValue().
