This class handles complex_float numbers. More...

#include <complex_float.hpp>

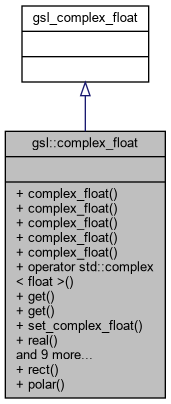

Inheritance diagram for gsl::complex_float:

Collaboration diagram for gsl::complex_float:

Public Member Functions
	complex_float ()
	The default constructor is only really useful for assigning to. More...

	complex_float (float *dat)
	Allow construction from raw data. More...

	complex_float (float const real, float const imag)
	Allow construction from real and imaginary values. More...

	complex_float (std::complex< float > const &z)
	Allow construction from a std::complex<float>. More...

	complex_float (gsl_complex_float const &z)
	Constructor from base class. More...

	operator std::complex< float > () const
	Convert to std::complex<float> More...

gsl_complex_float &	get ()
	Get the base class object. More...

gsl_complex_float const &	get () const
	Get the base class object. More...

void	set_complex_float (float x, float y)
	C++ version of GSL_SET_COMPLEX(). More...

float	real () const
	C++ version of GSL_REAL(). More...

float	imag () const
	C++ version of GSL_IMAG(). More...

void	set_real (float x)
	C++ version of GSL_SET_REAL(). More...

void	set_imag (float y)
	C++ version of GSL_SET_IMAG(). More...

bool	operator== (complex_float const &z) const
	A complex_float object must be less than comparable so that it can be used as a container value type. More...

bool	operator!= (complex_float const &z) const
	A complex_float object must be less than comparable so that it can be used as a container value type. More...

bool	operator< (complex_float const &z) const
	A complex_float object must be less than comparable so that it can be used as a container value type. More...

bool	operator> (complex_float const &z) const
	A complex_float object must be less than comparable so that it can be used as a container value type. More...

bool	operator<= (complex_float const &z) const
	A complex_float object must be less than comparable so that it can be used as a container value type. More...

bool	operator>= (complex_float const &z) const
	A complex_float object must be less than comparable so that it can be used as a container value type. More...

Static Public Member Functions
static complex_float	rect (float x, float y)
	C++ version of gsl_complex_float_rect(). More...

static complex_float	polar (float r, float theta)
	C++ version of gsl_complex_float_rect(). More...

Friends
class	complex_float_ptr

class	complex_float_ref

class	vector_complex_float

class	matrix_complex_float

Detailed Description

This class handles complex_float numbers.

There is an ambiguity in translating gsl_complex_float to C++: gsl_complex_float is a struct and so should be represented by a C++ class. But gsl_complex_float is also used like a namespace and so it would be nice to have a C++ namespace gsl:: complex_float. However, we cannot have both. The compromise is to use static complex_float class functions. But, since we cannot use

using namespace gsl::complex_float

gsl::complex_float

This class handles complex_float numbers.

Definition: complex_float.hpp:42

and similar namespace operations with gsl::complex_float, we also define a namespace gsl::cpx_float with the same functions, again defined inline for efficiency.

Definition at line 42 of file complex_float.hpp.

Constructor & Destructor Documentation

◆ complex_float() [1/5]

gsl::complex_float::complex_float ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 52 of file complex_float.hpp.

◆ complex_float() [2/5]

gsl::complex_float::complex_float ( float * dat )

inlineexplicit

Allow construction from raw data.

This is mainly for use by the container classes.

Parameters

dat Raw data

Definition at line 57 of file complex_float.hpp.

◆ complex_float() [3/5]

gsl::complex_float::complex_float	(	float const	real,
		float const	imag
	)

inline

Allow construction from real and imaginary values.

Parameters

real	The real part.
imag	The imaginary part.

Definition at line 65 of file complex_float.hpp.

References imag(), and real().

◆ complex_float() [4/5]

gsl::complex_float::complex_float ( std::complex< float > const & z )

inline

Allow construction from a std::complex<float>.

Parameters

z	The std::complex_float

Definition at line 73 of file complex_float.hpp.

◆ complex_float() [5/5]

gsl::complex_float::complex_float ( gsl_complex_float const & z )

inline

Constructor from base class.

Parameters

z	A gsl_complex_float

Definition at line 84 of file complex_float.hpp.

Member Function Documentation

◆ get() [1/2]

gsl_complex_float & gsl::complex_float::get ( )

inline

Get the base class object.

Returns: the base class object.

Definition at line 106 of file complex_float.hpp.

Referenced by gsl::blas::caxpy(), gsl::blas::cdotc(), gsl::blas::cdotu(), gsl::blas::cgemm(), gsl::blas::cgemv(), gsl::blas::cgerc(), gsl::blas::cgeru(), gsl::blas::chemm(), gsl::blas::chemv(), gsl::blas::cher2(), gsl::blas::cher2k(), gsl::blas::cscal(), gsl::blas::csymm(), gsl::blas::csyr2k(), gsl::blas::csyrk(), gsl::blas::ctrmm(), and gsl::blas::ctrsm().

◆ get() [2/2]

gsl_complex_float const & gsl::complex_float::get ( ) const

inline

Get the base class object.

Returns: the base class object.

Definition at line 111 of file complex_float.hpp.

◆ imag()

float gsl::complex_float::imag ( ) const

inline

C++ version of GSL_IMAG().

Returns: The real part of this

Definition at line 142 of file complex_float.hpp.

Referenced by complex_float().

◆ operator std::complex< float >()

gsl::complex_float::operator std::complex< float > ( ) const

inlineexplicit

Convert to std::complex<float>

Returns: std::complex<float> version of this (by copying).

Definition at line 93 of file complex_float.hpp.

◆ operator!=()

bool gsl::complex_float::operator!= ( complex_float const & z ) const

inline

A complex_float object must be less than comparable so that it can be used as a container value type.

This is the inequality operator.

Parameters

z	Another complex_float

Returns: false or true according as this equals z

Definition at line 166 of file complex_float.hpp.

◆ operator<()

bool gsl::complex_float::operator< ( complex_float const & z ) const

inline

A complex_float object must be less than comparable so that it can be used as a container value type.

This is the (lexicographic) less than operator.

Parameters

z	Another complex_float

Returns: true or false according as this is less than z

Definition at line 173 of file complex_float.hpp.

◆ operator<=()

bool gsl::complex_float::operator<= ( complex_float const & z ) const

inline

A complex_float object must be less than comparable so that it can be used as a container value type.

This is the (lexicographic) less than or equal to operator.

Parameters

z	Another complex_float

Returns: true or false according as this is less than or equal to z

Definition at line 189 of file complex_float.hpp.

◆ operator==()

bool gsl::complex_float::operator== ( complex_float const & z ) const

inline

A complex_float object must be less than comparable so that it can be used as a container value type.

This is the equality operator.

Parameters

z	Another complex_float

Returns: true or false according as this equals z

Definition at line 159 of file complex_float.hpp.

◆ operator>()

bool gsl::complex_float::operator> ( complex_float const & z ) const

inline

A complex_float object must be less than comparable so that it can be used as a container value type.

This is the (lexicographic) greater than operator.

Parameters

z	Another complex_float

Returns: true or false according as this is greater than than z

Definition at line 181 of file complex_float.hpp.

◆ operator>=()

bool gsl::complex_float::operator>= ( complex_float const & z ) const

inline

A complex_float object must be less than comparable so that it can be used as a container value type.

This is the (lexicographic) greater than or equal to operator.

Parameters

z	Another complex_float

Returns: true or false according as this is greater than or equal to z

Definition at line 196 of file complex_float.hpp.

◆ polar()

static complex_float gsl::complex_float::polar	(	float	r,
		float	theta
	)

inlinestatic

C++ version of gsl_complex_float_rect().

Parameters

r	The magnitude
theta	The argument

Returns: complex_float

Definition at line 125 of file complex_float.hpp.

References gsl::cpx::cos(), and gsl::cpx::sin().

Referenced by gsl::cpx_float::polar().

◆ real()

float gsl::complex_float::real ( ) const

inline

C++ version of GSL_REAL().

Returns: The real part of this

Definition at line 137 of file complex_float.hpp.

Referenced by complex_float().

◆ rect()

static complex_float gsl::complex_float::rect	(	float	x,
		float	y
	)

inlinestatic

C++ version of gsl_complex_float_rect().

Parameters

x	Real part
y	Imaginary part

Returns: complex_float

Definition at line 118 of file complex_float.hpp.

Referenced by gsl::cpx_float::rect().

◆ set_complex_float()

void gsl::complex_float::set_complex_float	(	float	x,
		float	y
	)

inline

C++ version of GSL_SET_COMPLEX().

Parameters

x	Real part
y	Imaginary part

Definition at line 132 of file complex_float.hpp.

◆ set_imag()

void gsl::complex_float::set_imag ( float y )

inline

C++ version of GSL_SET_IMAG().

Parameters

y	The new imaginary part

Definition at line 152 of file complex_float.hpp.

◆ set_real()

void gsl::complex_float::set_real ( float x )

inline

C++ version of GSL_SET_REAL().

Parameters

x	The new real part

Definition at line 147 of file complex_float.hpp.

Friends And Related Function Documentation

◆ complex_float_ptr

friend class complex_float_ptr

friend

Definition at line 43 of file complex_float.hpp.

◆ complex_float_ref

friend class complex_float_ref

friend

Definition at line 44 of file complex_float.hpp.

◆ matrix_complex_float

friend class matrix_complex_float

friend

Definition at line 46 of file complex_float.hpp.

◆ vector_complex_float

friend class vector_complex_float

friend

Definition at line 45 of file complex_float.hpp.

The documentation for this class was generated from the following file:

complex_float.hpp
