Class that extends gsl_multiroot_function_fdf so that it can be constructed from arbitrary function objects. More...

#include <multiroot_function_fdf.hpp>

Inheritance diagram for gsl::multiroot::function_fdf:

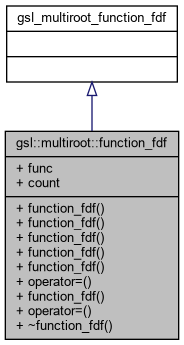

Collaboration diagram for gsl::multiroot::function_fdf:

Classes
struct	Concept
	This is an empty abstract base class. More...

Public Member Functions
	function_fdf ()
	The default constructor is only really useful for assigning to. More...

	function_fdf (gsl_multiroot_function_fdf &v)
	Could construct from a gsl_multiroot_function_fdf. More...

template<typename T >
	function_fdf (T &t)
	Construct from an object that implements gsl::multiroot::function_fdf::Concept. More...

	function_fdf (int(const f)(gsl::vector const &, gsl::vector &), int(const df)(gsl::vector const &, gsl::matrix &), int(*const fdf)(gsl::vector const &, gsl::vector &, gsl::matrix &), size_t n)
	Construct from a function with no parameters (but with n function values and arguments). More...

	function_fdf (function_fdf const &v)
	The copy constructor. More...

function_fdf &	operator= (function_fdf const &v)
	The assignment operator. More...

	function_fdf (function_fdf &&v)
	Move constructor. More...

function_fdf &	operator= (function_fdf &&v)
	Move operator. More...

	~function_fdf ()
	The destructor unshares any shared resource. More...

Public Attributes
base_F *	func
	This gives something for params to point to. More...

size_t *	count
	The shared reference count: used for copying this. More...

Friends
template<typename T >
void	function_constructor (function_fdf &, T &)

Detailed Description

Class that extends gsl_multiroot_function_fdf so that it can be constructed from arbitrary function objects.

Since gsl::multiroot::function_fdf is a subclass of gsl_multiroot_function_fdf, a pointer to an object of this class can be used whenever a pointer to a gsl_multiroot_function_fdf object is required. Thus, pointers to objects of this class can be used directly with the GNU Scientific Library.

A multiroot::function_fdf with argument a vector of length n should compute and return n function values. In C++ it is straightforward to set up a class with a member function that implements multiroot::function_fdf::Concept to get a suitable function object. The multiroot::function_fdf can then be constructed from a function object of this class.

Definition at line 49 of file multiroot_function_fdf.hpp.

Constructor & Destructor Documentation

◆ function_fdf() [1/6]

gsl::multiroot::function_fdf::function_fdf ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 425 of file multiroot_function_fdf.hpp.

References count, gsl::multifit::nlinear::df(), func, and gsl::rstat::n().

◆ function_fdf() [2/6]

gsl::multiroot::function_fdf::function_fdf ( gsl_multiroot_function_fdf & v )

inlineexplicit

Could construct from a gsl_multiroot_function_fdf.

This constructor is not actually visible, but gsl::multiroot::function_fdf<T>() will construct the object correctly.

Parameters

v	The gsl_multiroot_function_fdf.

Definition at line 442 of file multiroot_function_fdf.hpp.

References count, gsl::multifit::nlinear::df(), func, and gsl::rstat::n().

◆ function_fdf() [3/6]

template<typename T >

gsl::multiroot::function_fdf::function_fdf ( T & t )

inline

Construct from an object that implements gsl::multiroot::function_fdf::Concept.

Parameters

t	An object that implements gsl::multiroot::function_fdf::Concept.

Definition at line 460 of file multiroot_function_fdf.hpp.

◆ function_fdf() [4/6]

gsl::multiroot::function_fdf::function_fdf	(	int(*)(gsl::vector const &, gsl::vector &)	f,
		int(*)(gsl::vector const &, gsl::matrix &)	df,
		int(*)(gsl::vector const &, gsl::vector &, gsl::matrix &)	fdf,
		size_t	n
	)

inline

Construct from a function with no parameters (but with n function values and arguments).

Parameters

f	The function to construct from.
df	The derivatives to construct from.
fdf	The function and derivatives to construct from.
n	The number of functions and number of arguments of each.

Definition at line 468 of file multiroot_function_fdf.hpp.

References count, gsl::multifit::nlinear::df(), func, and gsl::rstat::n().

◆ function_fdf() [5/6]

gsl::multiroot::function_fdf::function_fdf ( function_fdf const & v )

inline

The copy constructor.

This shares f. This constructor is not actually visible, but gsl::multiroot::function_fdf::multiroot::function_fdf<T>() will construct the object correctly.

Parameters
