Workspace for root finding without a derivative. More...

#include <roots.hpp>

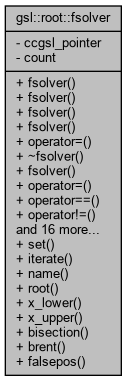

Collaboration diagram for gsl::root::fsolver:

Public Types
typedef gsl_root_fsolver_type	type
	Typedef. More...

Public Member Functions
	fsolver ()
	The default constructor is only really useful for assigning to. More...

	fsolver (type const *T)
	The default constructor creates a new fsolver of type fsolver::type. More...

	fsolver (gsl_root_fsolver *v)
	Could construct from a gsl_root_fsolver. More...

	fsolver (fsolver const &v)
	The copy constructor. More...

fsolver &	operator= (fsolver const &v)
	The assignment operator. More...

	~fsolver ()
	The destructor only deletes the pointers if count reaches zero. More...

	fsolver (fsolver &&v)
	Move constructor. More...

fsolver &	operator= (fsolver &&v)
	Move operator. More...

bool	operator== (fsolver const &v) const
	Two fsolver are identically equal if their elements are identical. More...

bool	operator!= (fsolver const &v) const
	Two fsolver are different if their elements are not identical. More...

bool	operator< (fsolver const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator> (fsolver const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator<= (fsolver const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator>= (fsolver const &v) const
	A container needs to define an ordering for sorting. More...

bool	empty () const
	Find if the fsolver is empty. More...

void	swap (fsolver &v)
	Swap two fsolver. More...

gsl_root_fsolver *	get () const
	Get the gsl_root_fsolver. More...

bool	unique () const
	Find if this is the only object sharing the gsl_root_fsolver. More...

size_t	use_count () const
	Find how many fsolver objects share this pointer. More...

	operator bool () const
	Allow conversion to bool. More...

int	set (function_scl &f, double x_lower, double x_upper)
	C++ version of gsl_root_fsolver_set(). More...

int	iterate ()
	C++ version of gsl_root_fsolver_iterate(). More...

char const *	name () const
	C++ version of gsl_root_fsolver_name(). More...

double	root () const
	C++ version of gsl_root_fsolver_root(). More...

double	x_lower () const
	C++ version of gsl_root_fsolver_x_lower(). More...

double	x_upper () const
	C++ version of gsl_root_fsolver_x_upper(). More...

Static Public Member Functions
static int	set (fsolver &s, function_scl &f, double x_lower, double x_upper)
	C++ version of gsl_root_fsolver_set(). More...

static int	iterate (fsolver &s)
	C++ version of gsl_root_fsolver_iterate(). More...

static std::string	name (fsolver const &s)
	C++ version of gsl_root_fsolver_name(). More...

static double	root (fsolver const &s)
	C++ version of gsl_root_fsolver_root(). More...

static double	x_lower (fsolver const &s)
	C++ version of gsl_root_fsolver_x_lower(). More...

static double	x_upper (fsolver const &s)
	C++ version of gsl_root_fsolver_x_upper(). More...

static type const *	bisection ()
	Static type. More...

static type const *	brent ()
	Static type. More...

static type const *	falsepos ()
	Static type. More...

Private Attributes
gsl_root_fsolver *	ccgsl_pointer
	The shared pointer. More...

size_t *	count
	The shared reference count. More...

Detailed Description

Workspace for root finding without a derivative.

Also functions as a namespace for fsolver functions. This also allows for functions to be called on fsolver as an object.

Definition at line 38 of file roots.hpp.

Member Typedef Documentation

◆ type

typedef gsl_root_fsolver_type gsl::root::fsolver::type

Typedef.

Definition at line 43 of file roots.hpp.

Constructor & Destructor Documentation

◆ fsolver() [1/5]

gsl::root::fsolver::fsolver ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 47 of file roots.hpp.

References ccgsl_pointer, and count.

Referenced by operator=().

◆ fsolver() [2/5]

gsl::root::fsolver::fsolver ( type const * T )

inlineexplicit

The default constructor creates a new fsolver of type fsolver::type.

Parameters

T	The type of the fsolver

Definition at line 57 of file roots.hpp.

References ccgsl_pointer, and count.

◆ fsolver() [3/5]

gsl::root::fsolver::fsolver ( gsl_root_fsolver * v )

inlineexplicit

Could construct from a gsl_root_fsolver.

This is not usually a good idea. In this case you should not use gsl_root_fsolver_free() to deallocate the memory.

Parameters

v	The fsolver

Definition at line 73 of file roots.hpp.

References ccgsl_pointer, and count.

◆ fsolver() [4/5]

gsl::root::fsolver::fsolver ( fsolver const & v )

inline

The copy constructor.

This creates a new reference to the workspace.

Parameters

v	The fsolver to copy.

Definition at line 84 of file roots.hpp.

References ccgsl_pointer, and count.

◆ ~fsolver()

gsl::root::fsolver::~fsolver ( )

inline

The destructor only deletes the pointers if count reaches zero.

Definition at line 103 of file roots.hpp.

References ccgsl_pointer, and count.

◆ fsolver() [5/5]

gsl::root::fsolver::fsolver ( fsolver && v )

inline

Move constructor.

Parameters

v	The fsolver to move.

Definition at line 115 of file roots.hpp.

References count.

Member Function Documentation

◆ bisection()

static type const * gsl::root::fsolver::bisection ( )

inlinestatic

Static type.

Returns: the named fsolver type

Definition at line 358 of file roots.hpp.

◆ brent()

static type const * gsl::root::fsolver::brent ( )

inlinestatic

Static type.

Returns: the named fsolver type

Definition at line 363 of file roots.hpp.

◆ empty()

bool gsl::root::fsolver::empty ( ) const

inline

Find if the fsolver is empty.

Returns: true if has size zero; otherwise false

Definition at line 192 of file roots.hpp.

References ccgsl_pointer.

◆ falsepos()

static type const * gsl::root::fsolver::falsepos ( )

inlinestatic

Static type.

Returns: the named fsolver type

Definition at line 368 of file roots.hpp.

◆ get()

gsl_root_fsolver * gsl::root::fsolver::get ( ) const

inline

Get the gsl_root_fsolver.

Returns: the gsl_root_fsolver

Definition at line 218 of file roots.hpp.

References ccgsl_pointer.

Referenced by iterate(), name(), root(), set(), x_lower(), and x_upper().

◆ iterate() [1/2]

int gsl::root::fsolver::iterate ( )

inline

C++ version of gsl_root_fsolver_iterate().

Returns: Error code on failure.

Definition at line 328 of file roots.hpp.

References get().

◆ iterate() [2/2]

static int gsl::root::fsolver::iterate ( fsolver & s )

inlinestatic

C++ version of gsl_root_fsolver_iterate().

Parameters

s	The fsolver.

Returns: Error code on failure.

Definition at line 268 of file roots.hpp.

References get().

◆ name() [1/2]

char const * gsl::root::fsolver::name ( ) const

inline

C++ version of gsl_root_fsolver_name().

Returns: The name of the solver.

Definition at line 334 of file roots.hpp.

References get().

◆ name() [2/2]

static std::string gsl::root::fsolver::name ( fsolver const & s )

inlinestatic

C++ version of gsl_root_fsolver_name().

Parameters

s	The fsolver.

Returns: The name of the solver.

Definition at line 276 of file roots.hpp.

References get().

◆ operator bool()

gsl::root::fsolver::operator bool ( ) const

inlineexplicit

Allow conversion to bool.

Returns: true or false according as this contains a pointer to a gsl_root_fsolver.

Definition at line 238 of file roots.hpp.

References ccgsl_pointer.

◆ operator!=()

bool gsl::root::fsolver::operator!= ( fsolver const & v ) const

inline

Two fsolver are different if their elements are not identical.

Parameters

v	The fsolver to be compared with `this`

Returns: false or true according as this and v have identical elements or not

Definition at line 145 of file roots.hpp.

References operator==().

◆ operator<()

bool gsl::root::fsolver::operator< ( fsolver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for eaxmple, for checking, that a fsolver is nonnegative.

Parameters

v	The fsolver to be compared with `this`

Returns: false or true according as this is less than v lexicographically

Definition at line 157 of file roots.hpp.

References ccgsl_pointer.

◆ operator<=()

bool gsl::root::fsolver::operator<= ( fsolver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for eaxmple, for checking, that a fsolver is nonnegative.

Parameters

v	The fsolver to be compared with `this`

Returns: false or true according as this is less than or equal to v lexicographically

Definition at line 177 of file roots.hpp.

References ccgsl_pointer.

◆ operator=() [1/2]

fsolver & gsl::root::fsolver::operator= ( fsolver && v )

inline

Move operator.

Parameters

v	The fsolver to move.

Returns: A reference to this.

Definition at line 124 of file roots.hpp.

References fsolver().

◆ operator=() [2/2]

fsolver & gsl::root::fsolver::operator= ( fsolver const & v )

inline

The assignment operator.

This copies elementwise.

Parameters

v	The fsolver to copy

Definition at line 91 of file roots.hpp.

References ccgsl_pointer, and count.

◆ operator==()

bool gsl::root::fsolver::operator== ( fsolver const & v ) const

inline

Two fsolver are identically equal if their elements are identical.

Parameters

v	The fsolver to be compared with `this`

Returns: true or false according as this and v have identical elements or not

Definition at line 137 of file roots.hpp.

References ccgsl_pointer.

Referenced by operator!=().

◆ operator>()

bool gsl::root::fsolver::operator> ( fsolver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for eaxmple, for checking, that a fsolver is nonnegative.

Parameters

v	The fsolver to be compared with `this`

Returns: false or true according as this is greater than v lexicographically

Definition at line 167 of file roots.hpp.

References ccgsl_pointer.

◆ operator>=()

bool gsl::root::fsolver::operator>= ( fsolver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for eaxmple, for checking, that a fsolver is nonnegative.

Parameters

v	The fsolver to be compared with `this`

Returns: false or true according as this is no less than v lexicographically

Definition at line 187 of file roots.hpp.

References ccgsl_pointer.

◆ root() [1/2]

double gsl::root::fsolver::root ( ) const

inline

C++ version of gsl_root_fsolver_root().

Returns: The current estimate of the root of f.

Definition at line 340 of file roots.hpp.

References get().

◆ root() [2/2]

static double gsl::root::fsolver::root ( fsolver const & s )

inlinestatic

C++ version of gsl_root_fsolver_root().

Parameters

s	The fsolver.

Returns: The current estimate of the root of f.

Definition at line 284 of file roots.hpp.

References get().

◆ set() [1/2]

static int gsl::root::fsolver::set	(	fsolver &	s,
		function_scl &	f,
		double	x_lower,
		double	x_upper
	)

inlinestatic

C++ version of gsl_root_fsolver_set().

Parameters

s	The fsolver.
f	The function to find a root of.
x_lower	The lower bound of the initial search interval.
x_upper	The upper bound of the initial search interval.

Returns: Error code on failure.

Definition at line 248 of file roots.hpp.

References get(), x_lower(), and x_upper().

◆ set() [2/2]

int gsl::root::fsolver::set	(	function_scl &	f,
		double	x_lower,
		double	x_upper
	)

inline

C++ version of gsl_root_fsolver_set().

Parameters

f	The function to find a root of.
x_lower	The lower bound of the initial search interval.
x_upper	The upper bound of the initial search interval.

Returns: Error code on failure.

Definition at line 310 of file roots.hpp.

References get(), x_lower(), and x_upper().

◆ swap()

void gsl::root::fsolver::swap ( fsolver & v )

inline

Swap two fsolver.

This works even if the fsolver have different sizes because it swaps pointers.

Parameters

v	The fsolver to swap with `this`.

Definition at line 199 of file roots.hpp.

References ccgsl_pointer, and count.

◆ unique()

bool gsl::root::fsolver::unique ( ) const

inline

Find if this is the only object sharing the gsl_root_fsolver.

Returns: true or falses according as this is the only workspace object sharing the gsl_root_fsolver.

Definition at line 224 of file roots.hpp.

References count.

◆ use_count()

size_t gsl::root::fsolver::use_count ( ) const

inline

Find how many fsolver objects share this pointer.

Returns: the number of workspace objects that share this pointer.

Definition at line 229 of file roots.hpp.

References count.

◆ x_lower() [1/2]

double gsl::root::fsolver::x_lower ( ) const

inline

C++ version of gsl_root_fsolver_x_lower().

Returns: The current lower bound for the search interval.

Definition at line 346 of file roots.hpp.

References get().

Referenced by set().

◆ x_lower() [2/2]

static double gsl::root::fsolver::x_lower ( fsolver const & s )

inlinestatic

C++ version of gsl_root_fsolver_x_lower().

Parameters

s	The fsolver.

Returns: The current lower bound for the search interval.

Definition at line 292 of file roots.hpp.

References get().

◆ x_upper() [1/2]

double gsl::root::fsolver::x_upper ( ) const

inline

C++ version of gsl_root_fsolver_x_upper().

Returns: The current upper bound for the search interval.

Definition at line 352 of file roots.hpp.

References get().

Referenced by set().

◆ x_upper() [2/2]

static double gsl::root::fsolver::x_upper ( fsolver const & s )

inlinestatic

C++ version of gsl_root_fsolver_x_upper().

Parameters

s	The fsolver.

Returns: The current upper bound for the search interval.

Definition at line 300 of file roots.hpp.

References get().

Member Data Documentation

◆ ccgsl_pointer

gsl_root_fsolver* gsl::root::fsolver::ccgsl_pointer

private

The shared pointer.

Definition at line 207 of file roots.hpp.

Referenced by empty(), fsolver(), get(), operator bool(), operator<(), operator<=(), operator=(), operator==(), operator>(), operator>=(), swap(), and ~fsolver().

◆ count

size_t* gsl::root::fsolver::count

private

The shared reference count.

Definition at line 211 of file roots.hpp.

Referenced by fsolver(), operator=(), swap(), unique(), use_count(), and ~fsolver().

The documentation for this class was generated from the following file:

roots.hpp

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ type

Constructor & Destructor Documentation

◆ fsolver() [1/5]

◆ fsolver() [2/5]

◆ fsolver() [3/5]

◆ fsolver() [4/5]

◆ ~fsolver()

◆ fsolver() [5/5]

Member Function Documentation

◆ bisection()

◆ brent()

◆ empty()

◆ falsepos()

◆ get()

◆ iterate() [1/2]

◆ iterate() [2/2]

◆ name() [1/2]

◆ name() [2/2]

◆ operator bool()

◆ operator!=()

◆ operator<()

◆ operator<=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator>()

◆ operator>=()

◆ root() [1/2]

◆ root() [2/2]

◆ set() [1/2]

◆ set() [2/2]

◆ swap()

◆ unique()

◆ use_count()

◆ x_lower() [1/2]

◆ x_lower() [2/2]

◆ x_upper() [1/2]

◆ x_upper() [2/2]

Member Data Documentation

◆ ccgsl_pointer

◆ count
