This class handles sparse matrix objects as shared handles. More...

#include <spmatrix.hpp>

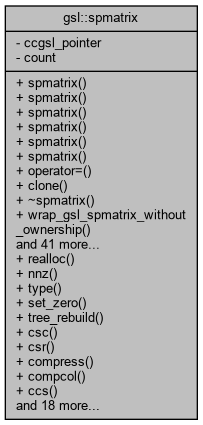

Collaboration diagram for gsl::spmatrix:

Public Types
enum	{ COO = GSL_SPMATRIX_COO , CSC = GSL_SPMATRIX_CSC , CSR = GSL_SPMATRIX_CSR , TRIPLET = GSL_SPMATRIX_TRIPLET , CCS = GSL_SPMATRIX_CCS , CRS = GSL_SPMATRIX_CRS }
	Reference to GSL_SPMATRIX constants. More...

Public Member Functions
	spmatrix ()
	The default constructor is only really useful for assigning to. More...

	spmatrix (size_t const n1, size_t const n2)
	This constructor creates a new matrix with n1 rows and n2 columns. More...

	spmatrix (size_t const n1, size_t const n2, size_t nzmax, size_t sptype)
	This constructor creates a new matrix with n1 rows and n2 columns. More...

	spmatrix (gsl_spmatrix *v)
	Could construct from a gsl_spmatrix. More...

	spmatrix (std::initializer_list< std::initializer_list< double > > initializer_list)
	Could construct from a std::initializer_list in C++11 and later. More...

	spmatrix (spmatrix const &v)
	The copy constructor. More...

spmatrix &	operator= (spmatrix const &v)
	The assignment operator. More...

spmatrix	clone () const
	The clone function. More...

	~spmatrix ()
	The destructor only deletes the pointers if count reaches zero. More...

void	wrap_gsl_spmatrix_without_ownership (gsl_spmatrix *v)
	This function is intended mainly for internal use. More...

void	reset ()
	Stop sharing ownership of the shared pointer. More...

	spmatrix (spmatrix &&v)
	Move constructor. More...

spmatrix &	operator= (spmatrix &&v)
	Move operator. More...

size_t	size1 () const
	The number of rows of the matrix. More...

size_t	size2 () const
	The number of columns of the matrix. More...

size_t	nzmax () const
	The maximum number of nonzero elements. More...

int	sptype () const
	The type of the spmatrix. More...

double *	data ()
	Give access to the data block. More...

double const *	data () const
	Give access to the data block. More...

void	swap (spmatrix &m)
	Swap two spmatrix objects. More...

int	realloc (size_t const nzmax)
	C++ version of gsl_spmatrix_realloc(). More...

size_t	nnz () const
	C++ version of gsl_spmatrix_nnz(). More...

char const *	type () const
	C++ version of gsl_spmatrix_type(). More...

int	set_zero ()
	C++ version of gsl_spmatrix_set_zero(). More...

int	tree_rebuild ()
	C++ version of gsl_spmatrix_tree_rebuild(). More...

spmatrix	csc () const
	C++ version of gsl_spmatrix_csc(). More...

spmatrix	csr () const
	C++ version of gsl_spmatrix_csr(). More...

spmatrix	compress (int const sptype) const
	C++ version of gsl_spmatrix_compress(). More...

spmatrix	compcol () const
	C++ version of gsl_spmatrix_compcol(). More...

spmatrix	ccs () const
	C++ version of gsl_spmatrix_ccs(). More...

spmatrix	crs () const
	C++ version of gsl_spmatrix_crs(). More...

int	memcpy (spmatrix &dest) const
	C++ version of gsl_spmatrix_memcpy(). More...

int	fprintf (FILE stream, char const format) const
	C++ version of gsl_spmatrix_fprintf(). More...

int	fwrite (FILE *stream) const
	C++ version of gsl_spmatrix_fwrite(). More...

int	fread (FILE *stream)
	C++ version of gsl_spmatrix_fread(). More...

double	get (size_t const i, size_t const j) const
	C++ version of gsl_spmatrix_get(). More...

int	set (size_t const i, size_t const j, double const x)
	C++ version of gsl_spmatrix_set(). More...

double *	ptr (size_t const i, size_t const j) const
	C++ version of gsl_spmatrix_ptr(). More...

int	minmax (double &min_out, double &max_out) const
	C++ version of gsl_spmatrix_minmax(). More...

int	min_index (size_t &imin_out, size_t &jmin_out) const
	C++ version of gsl_spmatrix_min_index(). More...

int	scale (double const x)
	C++ version of gsl_spmatrix_scale(). More...

int	scale_columns (gsl::vector const &x)
	C++ version of gsl_spmatrix_scale_columns(). More...

int	scale_rows (gsl::vector const &x)
	C++ version of gsl_spmatrix_scale_rows(). More...

int	equal (spmatrix const &b) const
	C++ version of gsl_spmatrix_equal(). More...

int	transpose ()
	C++ version of gsl_spmatrix_transpose(). More...

int	transpose2 ()
	C++ version of gsl_spmatrix_transpose2(). More...

gsl_spmatrix *	get ()
	Get the gsl_spmatrix. More...

gsl_spmatrix const *	get () const
	Get the gsl_spmatrix. More...

bool	unique () const
	Find if this is the only object sharing the gsl_spmatrix. More...

size_t	use_count () const
	Find how many spmatrix objects share this pointer. More...

	operator bool () const
	Allow conversion to bool. More...

Static Public Member Functions
static int	realloc (size_t const nzmax, gsl::spmatrix &spMatrix)
	C++ version of gsl_spmatrix_realloc(): matches a function in gsl that is intended for internal use. More...

static size_t	nnz (spmatrix const &spMatrix)
	C++ version of gsl_spmatrix_nnz(). More...

static char const *	type (spmatrix const &spMatrix)
	C++ version of gsl_spmatrix_type(). More...

static int	set_zero (spmatrix &spMatrix)
	C++ version of gsl_spmatrix_set_zero(). More...

static int	tree_rebuild (spmatrix &spMatrix)
	C++ version of gsl_spmatrix_tree_rebuild(). More...

static spmatrix	csc (spmatrix const &spMatrix)
	C++ version of gsl_spmatrix_csc(). More...

static spmatrix	csr (spmatrix const &spMatrix)
	C++ version of gsl_spmatrix_csr(). More...

static spmatrix	compress (spmatrix const &spMatrix, int const sptype)
	C++ version of gsl_spmatrix_compress(). More...

static spmatrix	compcol (spmatrix const &spMatrix)
	C++ version of gsl_spmatrix_compcol(). More...

static spmatrix	ccs (spmatrix const &spMatrix)
	C++ version of gsl_spmatrix_ccs(). More...

static spmatrix	crs (spmatrix const &spMatrix)
	C++ version of gsl_spmatrix_crs(). More...

static int	memcpy (spmatrix &dest, spmatrix const &src)
	C++ version of gsl_spmatrix_memcpy(). More...

static int	fprintf (FILE stream, spmatrix const &spMatrix, char const format)
	C++ version of gsl_spmatrix_fprintf(). More...

static spmatrix	fscanf (FILE *stream)
	C++ version of gsl_spmatrix_fscanf(). More...

static int	fwrite (FILE *stream, spmatrix &spMatrix)
	C++ version of gsl_spmatrix_fwrite(). More...

static int	fread (FILE *stream, spmatrix &spMatrix)
	C++ version of gsl_spmatrix_fread(). More...

static int	add (spmatrix &c, spmatrix const &a, spmatrix const &b)
	C++ version of gsl_spmatrix_add(). More...

static spmatrix	add (spmatrix const &a, spmatrix const &b)
	C++ version of gsl_spmatrix_add(). More...

static int	add_to_dense (gsl::matrix &a, spmatrix const &b)
	C++ version of gsl_spmatrix_add_to_dense(). More...

static int	dense_add (gsl::matrix &a, spmatrix const &b)
	C++ version of gsl_spmatrix_dense_add(). More...

static int	dense_sub (gsl::matrix &a, spmatrix const &b)
	C++ version of gsl_spmatrix_dense_sub(). More...

static double	norm1 (gsl::spmatrix const &a)
	C++ version of gsl_spmatrix_norm1(). More...

static int	d2sp (gsl::spmatrix &S, gsl::matrix const &A)
	C++ version of gsl_spmatrix_d2sp(). More...

static int	sp2d (gsl::matrix &A, spmatrix const &S)
	C++ version of gsl_spmatrix_sp2d(). More...

static int	equal (spmatrix const &a, spmatrix const &b)
	C++ version of gsl_spmatrix_equal(). More...

static int	transpose (spmatrix &a)
	C++ version of gsl_spmatrix_transpose(). More...

static int	transpose2 (spmatrix &a)
	C++ version of gsl_spmatrix_transpose2(). More...

static int	transpose_memcpy (spmatrix &dest, spmatrix const &src)
	C++ version of gsl_spmatrix_transpose_memcpy(). More...

Private Attributes
gsl_spmatrix *	ccgsl_pointer
	The shared pointer. More...

size_t *	count
	The shared reference count. More...

Detailed Description

This class handles sparse matrix objects as shared handles.

It models a random access container so that STL functions work with matrix.

Definition at line 38 of file spmatrix.hpp.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Reference to GSL_SPMATRIX constants.

Enumerator
COO	GSL_SPMATRIX_COO.
CSC	GSL_SPMATRIX_CSC.
CSR	GSL_SPMATRIX_CSR.
TRIPLET	GSL_SPMATRIX_TRIPLET.
CCS	GSL_SPMATRIX_CCS.
CRS	GSL_SPMATRIX_CRS.

Definition at line 43 of file spmatrix.hpp.

Constructor & Destructor Documentation

◆ spmatrix() [1/7]

gsl::spmatrix::spmatrix ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 60 of file spmatrix.hpp.

References ccgsl_pointer, and count.

Referenced by operator=(), and reset().

◆ spmatrix() [2/7]

gsl::spmatrix::spmatrix	(	size_t const	n1,
		size_t const	n2
	)

inlineexplicit

This constructor creates a new matrix with n1 rows and n2 columns.

Parameters

n1	The number of rows in the matrix
n2	The number of columns in the matrix

Definition at line 71 of file spmatrix.hpp.

References ccgsl_pointer, and count.

◆ spmatrix() [3/7]

gsl::spmatrix::spmatrix	(	size_t const	n1,
		size_t const	n2,
		size_t	nzmax,
		size_t	sptype
	)

inlineexplicit

This constructor creates a new matrix with n1 rows and n2 columns.

Parameters

n1	The number of rows in the matrix
n2	The number of columns in the matrix
nzmax	The maximum number of nonzero elements that will be added to the matrix
sptype	The storage format of the sparse matrix: one of gsl::spmatrix::COO, gsl::spmatrix::CSC or gsl::spmatrix::CSR

Definition at line 92 of file spmatrix.hpp.

References ccgsl_pointer, count, nzmax(), and sptype().

◆ spmatrix() [4/7]

gsl::spmatrix::spmatrix ( gsl_spmatrix * v )

inlineexplicit

Could construct from a gsl_spmatrix.

This is not usually a good idea. In this case you should not use gsl_spmatrix_free() to deallocate the memory.

Parameters

v	The matrix

Definition at line 111 of file spmatrix.hpp.

References ccgsl_pointer, and count.

◆ spmatrix() [5/7]

gsl::spmatrix::spmatrix ( std::initializer_list< std::initializer_list< double > > initializer_list )

inline

Could construct from a std::initializer_list in C++11 and later.

Parameters

initializer_list The initializer_list.

Definition at line 122 of file spmatrix.hpp.

References ccgsl_pointer, count, gsl::exception::GSL_EBADLEN, and set().

◆ spmatrix() [6/7]

gsl::spmatrix::spmatrix ( spmatrix const & v )

inline

The copy constructor.

This shares the matrix. Use clone() if you want a full copy.

Parameters

v	The spmatrix to copy.

Definition at line 155 of file spmatrix.hpp.

References count.

◆ ~spmatrix()

gsl::spmatrix::~spmatrix ( )

inline

The destructor only deletes the pointers if count reaches zero.

Definition at line 194 of file spmatrix.hpp.

References ccgsl_pointer, and count.

◆ spmatrix() [7/7]

gsl::spmatrix::spmatrix ( spmatrix && v )

inline

Move constructor.

Parameters

v	The spmatrix to move.

Definition at line 234 of file spmatrix.hpp.

References count.

Member Function Documentation

◆ add() [1/2]

static int gsl::spmatrix::add	(	spmatrix &	c,
		spmatrix const &	a,
		spmatrix const &	b
	)

inlinestatic

C++ version of gsl_spmatrix_add().

Parameters

c	An spmatrix object
a	An spmatrix object
b	An spmatrix object

Returns: Error code on failure

Definition at line 613 of file spmatrix.hpp.

References gsl::sf::mathieu::a(), gsl::sf::mathieu::b(), and get().

◆ add() [2/2]

static spmatrix gsl::spmatrix::add	(	spmatrix const &	a,
		spmatrix const &	b
	)

inlinestatic

C++ version of gsl_spmatrix_add().

Parameters

a	An spmatrix object
b	An spmatrix object

Returns: The sum of a and b

Definition at line 621 of file spmatrix.hpp.

References gsl::sf::mathieu::a(), and gsl::sf::mathieu::b().

◆ add_to_dense()

static int gsl::spmatrix::add_to_dense	(	gsl::matrix &	a,
		spmatrix const &	b
	)

inlinestatic

C++ version of gsl_spmatrix_add_to_dense().

Parameters

a	A gsl::matrix (return value is sum)
b	A gsl::spmatrix

Returns: Error code on failure

Definition at line 633 of file spmatrix.hpp.

References gsl::sf::mathieu::a(), and gsl::sf::mathieu::b().

◆ ccs() [1/2]

spmatrix gsl::spmatrix::ccs ( ) const

inline

C++ version of gsl_spmatrix_ccs().

Returns: A compressed matrix

Definition at line 358 of file spmatrix.hpp.

References get().

◆ ccs() [2/2]

static spmatrix gsl::spmatrix::ccs ( spmatrix const & spMatrix )

inlinestatic

C++ version of gsl_spmatrix_ccs().

Parameters

spMatrix An spmatrix object

Returns: A compressed matrix

Definition at line 555 of file spmatrix.hpp.

References get().

◆ clone()

spmatrix gsl::spmatrix::clone ( ) const

inline

The clone function.

Use this if you want a copy of the spmatrix that does not share the underlying data.

Returns: a new copy of this.

Definition at line 183 of file spmatrix.hpp.

References get(), size1(), and size2().

◆ compcol() [1/2]

spmatrix gsl::spmatrix::compcol ( ) const

inline

C++ version of gsl_spmatrix_compcol().

Returns: A compressed matrix

Definition at line 351 of file spmatrix.hpp.

References get().

◆ compcol() [2/2]

static spmatrix gsl::spmatrix::compcol ( spmatrix const & spMatrix )

inlinestatic

C++ version of gsl_spmatrix_compcol().

Parameters

spMatrix An spmatrix object

Returns: A compressed matrix

Definition at line 547 of file spmatrix.hpp.

References get().

◆ compress() [1/2]

spmatrix gsl::spmatrix::compress ( int const sptype ) const

inline

C++ version of gsl_spmatrix_compress().

Parameters

sptype One of gsl::spmatrix::COO, gsl::spmatrix::CSC or gsl::spmatrix::CSR

Returns: The compressed matrix

Definition at line 344 of file spmatrix.hpp.

References get(), and sptype().

◆ compress() [2/2]

static spmatrix gsl::spmatrix::compress	(	spmatrix const &	spMatrix,
		int const	sptype
	)

inlinestatic

C++ version of gsl_spmatrix_compress().

Parameters

spMatrix	An spmatrix object
sptype	One of gsl::spmatrix::COO, gsl::spmatrix::CSC or gsl::spmatrix::CSR

Returns: The compressed matrix

Definition at line 539 of file spmatrix.hpp.

References get(), and sptype().

◆ crs() [1/2]

spmatrix gsl::spmatrix::crs ( ) const

inline

C++ version of gsl_spmatrix_crs().

Returns: A compressed matrix

Definition at line 365 of file spmatrix.hpp.

References get().

◆ crs() [2/2]

static spmatrix gsl::spmatrix::crs ( spmatrix const & spMatrix )

inlinestatic

C++ version of gsl_spmatrix_crs().

Parameters

spMatrix An spmatrix object

Returns: A compressed matrix

Definition at line 563 of file spmatrix.hpp.

References get().

◆ csc() [1/2]

spmatrix gsl::spmatrix::csc ( ) const

inline

C++ version of gsl_spmatrix_csc().

Returns: a sparse matrix in compressed sparse column format from this which must be in COO format

Definition at line 324 of file spmatrix.hpp.

References get(), size1(), and size2().

◆ csc() [2/2]

static spmatrix gsl::spmatrix::csc ( spmatrix const & spMatrix )

inlinestatic

C++ version of gsl_spmatrix_csc().

Sets dest to a sparse matrix in compressed sparse column format from the input sparse matrix src, which must be in COO format

Parameters

spMatrix An spmatrix object

Returns: Error code on failure

Definition at line 519 of file spmatrix.hpp.

References get(), size1(), and size2().

◆ csr() [1/2]

spmatrix gsl::spmatrix::csr ( ) const

inline

C++ version of gsl_spmatrix_csr().

Returns: a sparse matrix in compressed sparse row format from this which must be in COO format

Definition at line 334 of file spmatrix.hpp.

References get(), size1(), and size2().

◆ csr() [2/2]

static spmatrix gsl::spmatrix::csr ( spmatrix const & spMatrix )

inlinestatic

C++ version of gsl_spmatrix_csr().

Sets dest to a sparse matrix in compressed sparse row format from the input sparse matrix src, which must be in COO format

Parameters

spMatrix An spmatrix object

Returns: Error code on failure

Definition at line 529 of file spmatrix.hpp.

References get(), size1(), and size2().

◆ d2sp()

static int gsl::spmatrix::d2sp	(	gsl::spmatrix &	S,
		gsl::matrix const &	A
	)

inlinestatic

C++ version of gsl_spmatrix_d2sp().

Parameters

S	A gsl::spmatrix (return value)
A	A gsl::matrix

Returns: Error code on failure

Definition at line 665 of file spmatrix.hpp.

References gsl::matrix::get(), and get().

◆ data() [1/2]

double * gsl::spmatrix::data ( )

inline

Give access to the data block.

Returns: The data block.

Definition at line 274 of file spmatrix.hpp.

References ccgsl_pointer.

◆ data() [2/2]

double const * gsl::spmatrix::data ( ) const

inline

Give access to the data block.

Returns: The data block.

Definition at line 281 of file spmatrix.hpp.

References ccgsl_pointer.

◆ dense_add()

static int gsl::spmatrix::dense_add	(	gsl::matrix &	a,
		spmatrix const &	b
	)

inlinestatic

C++ version of gsl_spmatrix_dense_add().

Parameters

a	A gsl::matrix (return value is sum)
b	A gsl::spmatrix

Returns: Error code on failure

Definition at line 642 of file spmatrix.hpp.

References gsl::sf::mathieu::a(), and gsl::sf::mathieu::b().

◆ dense_sub()

static int gsl::spmatrix::dense_sub	(	gsl::matrix &	a,
		spmatrix const &	b
	)

inlinestatic

C++ version of gsl_spmatrix_dense_sub().

Parameters

a	A gsl::matrix (return value is difference)
b	A gsl::spmatrix

Returns: Error code on failure

Definition at line 650 of file spmatrix.hpp.

References gsl::sf::mathieu::a(), and gsl::sf::mathieu::b().

◆ equal() [1/2]

static int gsl::spmatrix::equal	(	spmatrix const &	a,
		spmatrix const &	b
	)

inlinestatic

C++ version of gsl_spmatrix_equal().

Parameters

a	An spmatrix
b	An spmatrix

Returns: 1 or 0 according as a and b are equal or not

Definition at line 681 of file spmatrix.hpp.

References gsl::sf::mathieu::a(), and gsl::sf::mathieu::b().

◆ equal() [2/2]

int gsl::spmatrix::equal ( spmatrix const & b ) const

inline

C++ version of gsl_spmatrix_equal().

Parameters

b	An spmatrix

Returns: 1 or 0 according as a and b are equal or not

Definition at line 464 of file spmatrix.hpp.

References gsl::sf::mathieu::b(), and get().

◆ fprintf() [1/2]

int gsl::spmatrix::fprintf	(	FILE *	stream,
		char const *	format
	)		const

inline

C++ version of gsl_spmatrix_fprintf().

Parameters

stream	A file stream
format	One of the g, e or f formats for floating point numbers

Returns: Error code on failure

Definition at line 380 of file spmatrix.hpp.

References get().

◆ fprintf() [2/2]

static int gsl::spmatrix::fprintf	(	FILE *	stream,
		spmatrix const &	spMatrix,
		char const *	format
	)

inlinestatic

C++ version of gsl_spmatrix_fprintf().

Parameters

stream	A file stream
spMatrix	An spmatrix object
format	One of the g, e or f formats for floating point numbers

Returns: Error code on failure

Definition at line 581 of file spmatrix.hpp.

References get().

◆ fread() [1/2]

int gsl::spmatrix::fread ( FILE * stream )

inline

C++ version of gsl_spmatrix_fread().

Parameters

stream A file stream

Returns: Error code on failure

Definition at line 394 of file spmatrix.hpp.

References get().

◆ fread() [2/2]

static int gsl::spmatrix::fread	(	FILE *	stream,
		spmatrix &	spMatrix
	)

inlinestatic

C++ version of gsl_spmatrix_fread().

Parameters

stream	A file stream
spMatrix	An spmatrix object

Returns: Error code on failure

Definition at line 604 of file spmatrix.hpp.

References get().

◆ fscanf()

static spmatrix gsl::spmatrix::fscanf ( FILE * stream )

inlinestatic

C++ version of gsl_spmatrix_fscanf().

Parameters

stream A file stream

Returns: The spMatrix read from a file stream

Definition at line 588 of file spmatrix.hpp.

◆ fwrite() [1/2]

int gsl::spmatrix::fwrite ( FILE * stream ) const

inline

C++ version of gsl_spmatrix_fwrite().

Parameters

stream A file stream

Returns: Error code on failure

Definition at line 387 of file spmatrix.hpp.

References get().

◆ fwrite() [2/2]

static int gsl::spmatrix::fwrite	(	FILE *	stream,
		spmatrix &	spMatrix
	)

inlinestatic

C++ version of gsl_spmatrix_fwrite().

Parameters

stream	A file stream
spMatrix	An spmatrix object

Returns: Error code on failure

Definition at line 596 of file spmatrix.hpp.

References get().

◆ get() [1/3]

gsl_spmatrix * gsl::spmatrix::get ( )

inline

Get the gsl_spmatrix.

Returns: the gsl_spmatrix

Definition at line 718 of file spmatrix.hpp.

References ccgsl_pointer.

Referenced by ccs(), clone(), compcol(), compress(), crs(), csc(), csr(), equal(), fprintf(), fread(), fwrite(), get(), memcpy(), min_index(), minmax(), nnz(), ptr(), realloc(), scale(), scale_columns(), scale_rows(), set(), set_zero(), transpose(), transpose2(), tree_rebuild(), and type().

◆ get() [2/3]

gsl_spmatrix const * gsl::spmatrix::get ( ) const

inline

Get the gsl_spmatrix.

Returns: the gsl_spmatrix

Definition at line 723 of file spmatrix.hpp.

References ccgsl_pointer.

◆ get() [3/3]

double gsl::spmatrix::get	(	size_t const	i,
		size_t const	j
	)		const

inline

C++ version of gsl_spmatrix_get().

Parameters

i	Row index
j	Column index

Returns: Value in sparse matrix

Definition at line 402 of file spmatrix.hpp.

References get().

Referenced by add(), ccs(), clone(), compcol(), compress(), crs(), csc(), csr(), d2sp(), gsl::spblas::dgemm(), gsl::spblas::dgemv(), fprintf(), fread(), fwrite(), gsl::splinalg::itersolve::itersolve_iterate(), memcpy(), nnz(), realloc(), set_zero(), sp2d(), transpose_memcpy(), tree_rebuild(), and type().

◆ memcpy() [1/2]

int gsl::spmatrix::memcpy ( spmatrix & dest ) const

inline

C++ version of gsl_spmatrix_memcpy().

Parameters

dest	The destination spmatrix

Returns: Error code on failure

Definition at line 373 of file spmatrix.hpp.

References get().

◆ memcpy() [2/2]

static int gsl::spmatrix::memcpy	(	spmatrix &	dest,
		spmatrix const &	src
	)

inlinestatic

C++ version of gsl_spmatrix_memcpy().

Parameters

dest	The destination spmatrix
src	The source spmatrix

Returns: Error code on failure

Definition at line 572 of file spmatrix.hpp.

References get().

◆ min_index()

int gsl::spmatrix::min_index	(	size_t &	imin_out,
		size_t &	jmin_out
	)		const

inline

C++ version of gsl_spmatrix_min_index().

Parameters

imin_out	The row index of the minimum nonzero element (by reference)
jmin_out	The column index of the minimum nonzero element (by reference)

Returns: Error code on failure

Definition at line 436 of file spmatrix.hpp.

References get().

◆ minmax()

int gsl::spmatrix::minmax	(	double &	min_out,
		double &	max_out
	)		const

inline

C++ version of gsl_spmatrix_minmax().

Parameters

min_out	The minimum element (by reference)
max_out	The maximum element (by reference)

Returns: Error code on failure

Definition at line 428 of file spmatrix.hpp.

References get().

◆ nnz() [1/2]

size_t gsl::spmatrix::nnz ( ) const

inline

C++ version of gsl_spmatrix_nnz().

Returns: The number of nonzero elements of this

Definition at line 303 of file spmatrix.hpp.

References get().

◆ nnz() [2/2]

static size_t gsl::spmatrix::nnz ( spmatrix const & spMatrix )

inlinestatic

C++ version of gsl_spmatrix_nnz().

Parameters

spMatrix An spmatrix object

Returns: The number of nonzero elements of spMatrix

Definition at line 490 of file spmatrix.hpp.

References get().

◆ norm1()

static double gsl::spmatrix::norm1 ( gsl::spmatrix const & a )

inlinestatic

C++ version of gsl_spmatrix_norm1().

Parameters

a	A gsl::spmatrix

Returns: The 1-norm

Definition at line 657 of file spmatrix.hpp.

References gsl::sf::mathieu::a().

◆ nzmax()

size_t gsl::spmatrix::nzmax ( ) const

inline

The maximum number of nonzero elements.

Returns: the maximum number of nonzero elements

Definition at line 264 of file spmatrix.hpp.

References ccgsl_pointer.

Referenced by realloc(), and spmatrix().

◆ operator bool()

gsl::spmatrix::operator bool ( ) const

inlineexplicit

Allow conversion to bool.

Returns: true or false according as this contains a pointer to a gsl_spmatrix

Definition at line 743 of file spmatrix.hpp.

References ccgsl_pointer.

◆ operator=() [1/2]

spmatrix & gsl::spmatrix::operator= ( spmatrix && v )

inline

Move operator.

Parameters

v	The spmatrix to move.

Returns: A reference to this.

Definition at line 243 of file spmatrix.hpp.

References spmatrix().

◆ operator=() [2/2]

spmatrix & gsl::spmatrix::operator= ( spmatrix const & v )

inline

The assignment operator.

This makes a shared copy.

Parameters

v	The matrix to copy

Definition at line 163 of file spmatrix.hpp.

References ccgsl_pointer, and count.

◆ ptr()

double * gsl::spmatrix::ptr	(	size_t const	i,
		size_t const	j
	)		const

inline

C++ version of gsl_spmatrix_ptr().

Parameters

i	Row index
j	Column index

Returns: Error code on failure

Definition at line 419 of file spmatrix.hpp.

References get().

◆ realloc() [1/2]

int gsl::spmatrix::realloc ( size_t const nzmax )

inline

C++ version of gsl_spmatrix_realloc().

This is not usually used.

Parameters

nzmax The maximum number of nonzero elements

Returns: Error code on failure

Definition at line 298 of file spmatrix.hpp.

References get(), and nzmax().

◆ realloc() [2/2]

static int gsl::spmatrix::realloc	(	size_t const	nzmax,
		gsl::spmatrix &	spMatrix
	)

inlinestatic

C++ version of gsl_spmatrix_realloc(): matches a function in gsl that is intended for internal use.

Parameters

nzmax	The maximum number of nonzero elements
spMatrix	An spmatrix object

Returns: Error code on failure

Definition at line 483 of file spmatrix.hpp.

References get(), and nzmax().

◆ reset()

void gsl::spmatrix::reset ( )

inline

Stop sharing ownership of the shared pointer.

Definition at line 228 of file spmatrix.hpp.

References spmatrix().

◆ scale()

int gsl::spmatrix::scale ( double const x )

inline

C++ version of gsl_spmatrix_scale().

Parameters

x	A scaling factor

Returns: Error code on failure

Definition at line 444 of file spmatrix.hpp.

References get().

◆ scale_columns()

int gsl::spmatrix::scale_columns ( gsl::vector const & x )

inline

C++ version of gsl_spmatrix_scale_columns().

Parameters

x	A scaling gsl::vector

Returns: Error code on failure

Definition at line 450 of file spmatrix.hpp.

References get(), and gsl::vector::get().

◆ scale_rows()

int gsl::spmatrix::scale_rows ( gsl::vector const & x )

inline

C++ version of gsl_spmatrix_scale_rows().

Parameters

x	A scaling gsl::vector

Returns: Error code on failure

Definition at line 457 of file spmatrix.hpp.

References get(), and gsl::vector::get().

◆ set()

int gsl::spmatrix::set	(	size_t const	i,
		size_t const	j,
		double const	x
	)

inline

C++ version of gsl_spmatrix_set().

Parameters

i	Row index
j	Column value
x	New matrix entry

Returns: Error code on failure

Definition at line 411 of file spmatrix.hpp.

References get().

Referenced by spmatrix().

◆ set_zero() [1/2]

int gsl::spmatrix::set_zero ( )

inline

C++ version of gsl_spmatrix_set_zero().

Reinitialise spmatrix to zeros.

Returns: Error code on failure

Definition at line 313 of file spmatrix.hpp.

References get().

◆ set_zero() [2/2]

static int gsl::spmatrix::set_zero ( spmatrix & spMatrix )

inlinestatic

C++ version of gsl_spmatrix_set_zero().

Reinitialise spmatrix to zeros.

Parameters

spMatrix An spmatrix object

Returns: Error code on failure

Definition at line 504 of file spmatrix.hpp.

References get().

◆ size1()

size_t gsl::spmatrix::size1 ( ) const

inline

The number of rows of the matrix.

Returns: The number of rows of the matrix

Definition at line 254 of file spmatrix.hpp.

References ccgsl_pointer.

Referenced by clone(), csc(), and csr().

◆ size2()

size_t gsl::spmatrix::size2 ( ) const

inline

The number of columns of the matrix.

Returns: The number of columns of the matrix

Definition at line 259 of file spmatrix.hpp.

References ccgsl_pointer.

Referenced by clone(), csc(), and csr().

◆ sp2d()

static int gsl::spmatrix::sp2d	(	gsl::matrix &	A,
		spmatrix const &	S
	)

inlinestatic

C++ version of gsl_spmatrix_sp2d().

Parameters

A	A gsl::matrix (return value)
S	A gsl::spmatrix

Returns: Error code on failure

Definition at line 673 of file spmatrix.hpp.

References gsl::matrix::get(), and get().

◆ sptype()

int gsl::spmatrix::sptype ( ) const

inline

The type of the spmatrix.

Returns: the type of the spmatrix

Definition at line 269 of file spmatrix.hpp.

References ccgsl_pointer.

Referenced by compress(), and spmatrix().

◆ swap()

void gsl::spmatrix::swap ( spmatrix & m )

inline

Swap two spmatrix objects.

This works even if the spmatrix objects have different sizes because it swaps pointers.

Parameters

m	The spmatrix to swap with `this`.

Definition at line 289 of file spmatrix.hpp.

References ccgsl_pointer, and count.

◆ transpose() [1/2]

int gsl::spmatrix::transpose ( )

inline

C++ version of gsl_spmatrix_transpose().

Returns: Error code on failure

Definition at line 469 of file spmatrix.hpp.

References get().

◆ transpose() [2/2]

static int gsl::spmatrix::transpose ( spmatrix & a )

inlinestatic

C++ version of gsl_spmatrix_transpose().

Parameters

a	An spmatrix

Returns: Error code on failure

Definition at line 688 of file spmatrix.hpp.

References gsl::sf::mathieu::a().

◆ transpose2() [1/2]

int gsl::spmatrix::transpose2 ( )

inline

C++ version of gsl_spmatrix_transpose2().

Returns: Error code on failure

Definition at line 474 of file spmatrix.hpp.

References get().

◆ transpose2() [2/2]

static int gsl::spmatrix::transpose2 ( spmatrix & a )

inlinestatic

C++ version of gsl_spmatrix_transpose2().

Parameters

a	An spmatrix

Returns: Error code on failure

Definition at line 694 of file spmatrix.hpp.

References gsl::sf::mathieu::a().

◆ transpose_memcpy()

static int gsl::spmatrix::transpose_memcpy	(	spmatrix &	dest,
		spmatrix const &	src
	)

inlinestatic

C++ version of gsl_spmatrix_transpose_memcpy().

Parameters

dest	An spmatrix (return)
src	An spmatrix

Returns: Error code on failure

Definition at line 701 of file spmatrix.hpp.

References get().

◆ tree_rebuild() [1/2]

int gsl::spmatrix::tree_rebuild ( )

inline

C++ version of gsl_spmatrix_tree_rebuild().

Returns: Error code on failure

Definition at line 318 of file spmatrix.hpp.

References get().

◆ tree_rebuild() [2/2]

static int gsl::spmatrix::tree_rebuild ( spmatrix & spMatrix )

inlinestatic

C++ version of gsl_spmatrix_tree_rebuild().

Parameters

spMatrix An spmatrix object

Returns: Error code on failure

Definition at line 511 of file spmatrix.hpp.

References get().

◆ type() [1/2]

char const * gsl::spmatrix::type ( ) const

inline

C++ version of gsl_spmatrix_type().

Returns: A string describing the sparse matrix storage format

Definition at line 308 of file spmatrix.hpp.

References get().

◆ type() [2/2]

static char const * gsl::spmatrix::type ( spmatrix const & spMatrix )

inlinestatic

C++ version of gsl_spmatrix_type().

Parameters

spMatrix An spmatrix object

Returns: A string describing the sparse matrix storage format

Definition at line 497 of file spmatrix.hpp.

References get().

◆ unique()

bool gsl::spmatrix::unique ( ) const

inline

Find if this is the only object sharing the gsl_spmatrix.

Returns: true or falses according as this is the only spmatrix object sharing the gsl_spmatrix

Definition at line 729 of file spmatrix.hpp.

References count.

◆ use_count()

size_t gsl::spmatrix::use_count ( ) const

inline

Find how many spmatrix objects share this pointer.

Returns: the number of spmatrix objects that share this pointer

Definition at line 734 of file spmatrix.hpp.

References count.

◆ wrap_gsl_spmatrix_without_ownership()

void gsl::spmatrix::wrap_gsl_spmatrix_without_ownership ( gsl_spmatrix * v )

inline

This function is intended mainly for internal use.

It allows this to point to a gsl_spmatrix without the possibility deleting it when this is no longer in scope. It is the responsibility of the programmer to delete v. The function is used internally for converting a function that takes a gsl::spmatrix* argument to one that takes a gsl_spmatrix* argument.

Parameters

v	The gsl_spmatrix

Definition at line 213 of file spmatrix.hpp.

References ccgsl_pointer, and count.

Member Data Documentation

◆ ccgsl_pointer

gsl_spmatrix* gsl::spmatrix::ccgsl_pointer

private

The shared pointer.

Definition at line 707 of file spmatrix.hpp.

Referenced by data(), get(), nzmax(), operator bool(), operator=(), size1(), size2(), spmatrix(), sptype(), swap(), wrap_gsl_spmatrix_without_ownership(), and ~spmatrix().

◆ count

size_t* gsl::spmatrix::count

private

The shared reference count.

Definition at line 711 of file spmatrix.hpp.

Referenced by operator=(), spmatrix(), swap(), unique(), use_count(), wrap_gsl_spmatrix_without_ownership(), and ~spmatrix().

The documentation for this class was generated from the following file:

spmatrix.hpp

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ spmatrix() [1/7]

◆ spmatrix() [2/7]

◆ spmatrix() [3/7]

◆ spmatrix() [4/7]

◆ spmatrix() [5/7]

◆ spmatrix() [6/7]

◆ ~spmatrix()

◆ spmatrix() [7/7]

Member Function Documentation

◆ add() [1/2]

◆ add() [2/2]

◆ add_to_dense()

◆ ccs() [1/2]

◆ ccs() [2/2]

◆ clone()

◆ compcol() [1/2]

◆ compcol() [2/2]

◆ compress() [1/2]

◆ compress() [2/2]

◆ crs() [1/2]

◆ crs() [2/2]

◆ csc() [1/2]

◆ csc() [2/2]

◆ csr() [1/2]

◆ csr() [2/2]

◆ d2sp()

◆ data() [1/2]

◆ data() [2/2]

◆ dense_add()

◆ dense_sub()

◆ equal() [1/2]

◆ equal() [2/2]

◆ fprintf() [1/2]

◆ fprintf() [2/2]

◆ fread() [1/2]

◆ fread() [2/2]

◆ fscanf()

◆ fwrite() [1/2]

◆ fwrite() [2/2]

◆ get() [1/3]

◆ get() [2/3]

◆ get() [3/3]

◆ memcpy() [1/2]

◆ memcpy() [2/2]

◆ min_index()

◆ minmax()

◆ nnz() [1/2]

◆ nnz() [2/2]

◆ norm1()

◆ nzmax()

◆ operator bool()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ ptr()

◆ realloc() [1/2]

◆ realloc() [2/2]

◆ reset()

◆ scale()

◆ scale_columns()

◆ scale_rows()

◆ set()

◆ set_zero() [1/2]

◆ set_zero() [2/2]

◆ size1()

◆ size2()

◆ sp2d()

◆ sptype()

◆ swap()

◆ transpose() [1/2]

◆ transpose() [2/2]

◆ transpose2() [1/2]

◆ transpose2() [2/2]
