Wavelets in one dimension. More...

#include <wavelet.hpp>

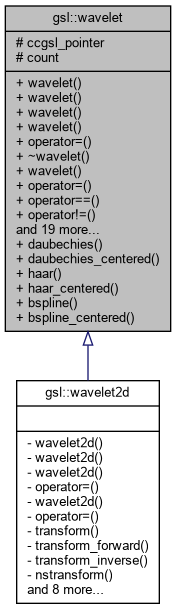

Inheritance diagram for gsl::wavelet:

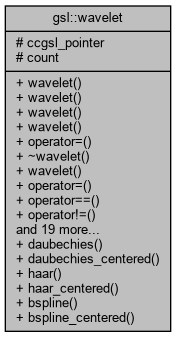

Collaboration diagram for gsl::wavelet:

Classes
class	workspace
	Workspace for wavelets. More...

Public Types
typedef gsl_wavelet_type const *	type
	Define gsl::wavelet::static type. More...

Public Member Functions
	wavelet ()
	The default constructor is only really useful for assigning to. More...

	wavelet (type T, size_t const k)
	The default constructor creates a new wavelet with n elements. More...

	wavelet (gsl_wavelet *v)
	Could construct from a gsl_wavelet. More...

	wavelet (wavelet const &v)
	The copy constructor. More...

wavelet &	operator= (wavelet const &v)
	The assignment operator. More...

	~wavelet ()
	The destructor only deletes the pointers if count reaches zero. More...

	wavelet (wavelet &&v)
	Move constructor. More...

wavelet &	operator= (wavelet &&v)
	Move operator. More...

bool	operator== (wavelet const &v) const
	Two wavelet are identically equal if their elements are identical. More...

bool	operator!= (wavelet const &v) const
	Two wavelet are different if their elements are not identical. More...

bool	operator< (wavelet const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator> (wavelet const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator<= (wavelet const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator>= (wavelet const &v) const
	A container needs to define an ordering for sorting. More...

bool	empty () const
	Find if the wavelet is empty. More...

void	swap (wavelet &v)
	Swap two wavelet objects. More...

gsl_wavelet *	get () const
	Get the gsl_wavelet. More...

bool	unique () const
	Find if this is the only object sharing the gsl_wavelet. More...

size_t	use_count () const
	Find how many wavelet objects share this pointer. More...

	operator bool () const
	Allow conversion to bool. More...

std::string	name () const
	C++ version of gsl_wavelet_name(). More...

gsl_wavelet_direction	forward () const
	Access direction. More...

gsl_wavelet_direction	backward () const
	Access direction. More...

template<typename DATA >
int	transform (DATA &data, size_t stride, gsl_wavelet_direction dir, workspace &work) const
	C++ version of gsl_wavelet_transform(). More...

template<typename DATA >
int	transform_forward (DATA &data, size_t stride, workspace &work) const
	C++ version of gsl_wavelet_transform_forward(). More...

template<typename DATA >
int	transform_inverse (DATA &data, size_t stride, workspace &work) const
	C++ version of gsl_wavelet_transform_inverse(). More...

template<typename DATA >
int	transform (DATA &data, gsl_wavelet_direction dir, workspace &work) const
	C++ version of gsl_wavelet_transform(). More...

template<typename DATA >
int	transform_forward (DATA &data, workspace &work) const
	C++ version of gsl_wavelet_transform_forward(). More...

template<typename DATA >
int	transform_inverse (DATA &data, workspace &work) const
	C++ version of gsl_wavelet_transform_inverse(). More...

Static Public Member Functions
static type	daubechies ()
	Wavelet static type. More...

static type	daubechies_centered ()
	Wavelet static type. More...

static type	haar ()
	Wavelet static type. More...

static type	haar_centered ()
	Wavelet static type. More...

static type	bspline ()
	Wavelet static type. More...

static type	bspline_centered ()
	Wavelet static type. More...

Protected Attributes
gsl_wavelet *	ccgsl_pointer
	The shared pointer. More...

size_t *	count
	The shared reference count. More...

Detailed Description

Wavelets in one dimension.

Definition at line 30 of file wavelet.hpp.

Member Typedef Documentation

◆ type

typedef gsl_wavelet_type const* gsl::wavelet::type

Define gsl::wavelet::static type.

Definition at line 35 of file wavelet.hpp.

Constructor & Destructor Documentation

◆ wavelet() [1/5]

gsl::wavelet::wavelet ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 39 of file wavelet.hpp.

References ccgsl_pointer, and count.

Referenced by operator=().

◆ wavelet() [2/5]

gsl::wavelet::wavelet	(	type	T,
		size_t const	k
	)

inlineexplicit

The default constructor creates a new wavelet with n elements.

Parameters

T	The type of the wavelet
k	Parameter to select specific member of wavelet family

Definition at line 50 of file wavelet.hpp.

References ccgsl_pointer, and count.

◆ wavelet() [3/5]

gsl::wavelet::wavelet ( gsl_wavelet * v )

inlineexplicit

Could construct from a gsl_wavelet.

This is not usually a good idea. In this case we should not use gsl_wavelet_free() to deallocate the memory.

Parameters

v	The wavelet

Definition at line 66 of file wavelet.hpp.

References ccgsl_pointer, and count.

◆ wavelet() [4/5]

gsl::wavelet::wavelet ( wavelet const & v )

inline

The copy constructor.

This creates a new reference to the workspace.

Parameters

v	The wavelet to copy.

Definition at line 77 of file wavelet.hpp.

References ccgsl_pointer, and count.

◆ ~wavelet()

gsl::wavelet::~wavelet ( )

inline

The destructor only deletes the pointers if count reaches zero.

Definition at line 96 of file wavelet.hpp.

References ccgsl_pointer, and count.

◆ wavelet() [5/5]

gsl::wavelet::wavelet ( wavelet && v )

inline

Move constructor.

Parameters

v	The wavelet to move.

Definition at line 108 of file wavelet.hpp.

References count.

Member Function Documentation

◆ backward()

gsl_wavelet_direction gsl::wavelet::backward ( ) const

inline

Access direction.

Returns: direction

Definition at line 479 of file wavelet.hpp.

◆ bspline()

static type gsl::wavelet::bspline ( )

inlinestatic

Wavelet static type.

Returns: the named wavelet type

Definition at line 261 of file wavelet.hpp.

◆ bspline_centered()

static type gsl::wavelet::bspline_centered ( )

inlinestatic

Wavelet static type.

Returns: the named wavelet type

Definition at line 266 of file wavelet.hpp.

◆ daubechies()

static type gsl::wavelet::daubechies ( )

inlinestatic

Wavelet static type.

Returns: the named wavelet type

Definition at line 241 of file wavelet.hpp.

◆ daubechies_centered()

static type gsl::wavelet::daubechies_centered ( )

inlinestatic

Wavelet static type.

Returns: the named wavelet type

Definition at line 246 of file wavelet.hpp.

◆ empty()

bool gsl::wavelet::empty ( ) const

inline

Find if the wavelet is empty.

Returns: true if has size zero; otherwise false

Definition at line 185 of file wavelet.hpp.

References ccgsl_pointer.

◆ forward()

gsl_wavelet_direction gsl::wavelet::forward ( ) const

inline

Access direction.

Returns: direction

Definition at line 474 of file wavelet.hpp.

◆ get()

gsl_wavelet * gsl::wavelet::get ( ) const

inline

Get the gsl_wavelet.

Returns: the gsl_wavelet

Definition at line 211 of file wavelet.hpp.

References ccgsl_pointer.

◆ haar()

static type gsl::wavelet::haar ( )

inlinestatic

Wavelet static type.

Returns: the named wavelet type

Definition at line 251 of file wavelet.hpp.

◆ haar_centered()

static type gsl::wavelet::haar_centered ( )

inlinestatic

Wavelet static type.

Returns: the named wavelet type

Definition at line 256 of file wavelet.hpp.

◆ name()

std::string gsl::wavelet::name ( ) const

inline

C++ version of gsl_wavelet_name().

Returns: UNDOCUMENTED

Definition at line 236 of file wavelet.hpp.

References get().

◆ operator bool()

gsl::wavelet::operator bool ( ) const

inlineexplicit

Allow conversion to bool.

Returns: true or false according as this contains a pointer to a gsl_wavelet.

Definition at line 231 of file wavelet.hpp.

References ccgsl_pointer.

◆ operator!=()

bool gsl::wavelet::operator!= ( wavelet const & v ) const

inline

Two wavelet are different if their elements are not identical.

Parameters

v	The wavelet to be compared with `this`

Returns: false or true according as this and v have identical elements or not

Definition at line 138 of file wavelet.hpp.

References operator==().

◆ operator<()

bool gsl::wavelet::operator< ( wavelet const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a wavelet is nonnegative.

Parameters

v	The wavelet to be compared with `this`

Returns: false or true according as this is less than v lexicographically

Definition at line 150 of file wavelet.hpp.

References ccgsl_pointer.

◆ operator<=()

bool gsl::wavelet::operator<= ( wavelet const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a wavelet is nonnegative.

Parameters

v	The wavelet to be compared with `this`

Returns: false or true according as this is less than or equal to v lexicographically

Definition at line 170 of file wavelet.hpp.

References ccgsl_pointer.

◆ operator=() [1/2]

wavelet & gsl::wavelet::operator= ( wavelet && v )

inline

Move operator.

Parameters

v	The wavelet to move.

Returns: A reference to this.

Definition at line 117 of file wavelet.hpp.

References wavelet().

◆ operator=() [2/2]

wavelet & gsl::wavelet::operator= ( wavelet const & v )

inline

The assignment operator.

This copies elementwise.

Parameters

v	The wavelet to copy

Definition at line 84 of file wavelet.hpp.

References ccgsl_pointer, and count.

◆ operator==()

bool gsl::wavelet::operator== ( wavelet const & v ) const

inline

Two wavelet are identically equal if their elements are identical.

Parameters

v	The wavelet to be compared with `this`

Returns: true or false according as this and v have identical elements or not

Definition at line 130 of file wavelet.hpp.

References ccgsl_pointer.

Referenced by operator!=().

◆ operator>()

bool gsl::wavelet::operator> ( wavelet const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a wavelet is nonnegative.

Parameters

v	The wavelet to be compared with `this`

Returns: false or true according as this is greater than v lexicographically

Definition at line 160 of file wavelet.hpp.

References ccgsl_pointer.

◆ operator>=()

bool gsl::wavelet::operator>= ( wavelet const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a wavelet is nonnegative.

Parameters

v	The wavelet to be compared with `this`

Returns: false or true according as this is no less than v lexicographically

Definition at line 180 of file wavelet.hpp.

References ccgsl_pointer.

◆ swap()

void gsl::wavelet::swap ( wavelet & v )

inline

Swap two wavelet objects.

This works even if the wavelet have different sizes because it swaps pointers.

Parameters

v	The wavelet to swap with `this`.

Definition at line 192 of file wavelet.hpp.

References ccgsl_pointer, and count.

◆ transform() [1/2]

template<typename DATA >

int gsl::wavelet::transform	(	DATA &	data,
		gsl_wavelet_direction	dir,
		workspace &	work
	)		const

inline

C++ version of gsl_wavelet_transform().

This version handles std::vector and gsl::vector.

Parameters

data	Data array
dir	Direction: forward() or backward()
work	Supply a workspace of size n

Returns: Error code on failure

Definition at line 565 of file wavelet.hpp.

References get(), and gsl::wavelet::workspace::get().

◆ transform() [2/2]

template<typename DATA >

int gsl::wavelet::transform	(	DATA &	data,
		size_t	stride,
		gsl_wavelet_direction	dir,
		workspace &	work
	)		const

inline

C++ version of gsl_wavelet_transform().

This version works on std::vector<double> and gsl::vector

Parameters

data	Data array
stride	Stride
dir	Direction: forward() or backward()
work	Supply a workspace of size n

Returns: Error code on failure

Definition at line 528 of file wavelet.hpp.

References get(), and gsl::wavelet::workspace::get().

◆ transform_forward() [1/2]

template<typename DATA >

int gsl::wavelet::transform_forward	(	DATA &	data,
		size_t	stride,
		workspace &	work
	)		const

inline

C++ version of gsl_wavelet_transform_forward().

This version works on std::vector<double> and gsl::vector

Parameters

data	Data array
stride	Stride
work	Supply a workspace of size n

Returns: Error code on failure

Definition at line 541 of file wavelet.hpp.

References get(), and gsl::wavelet::workspace::get().

◆ transform_forward() [2/2]

template<typename DATA >

int gsl::wavelet::transform_forward	(	DATA &	data,
		workspace &	work
	)		const

inline

C++ version of gsl_wavelet_transform_forward().

This version handles std::vector and gsl::vector.

Parameters

data	Data array
work	Supply a workspace of size n

Returns: Error code on failure

Definition at line 577 of file wavelet.hpp.

References get(), and gsl::wavelet::workspace::get().

◆ transform_inverse() [1/2]

template<typename DATA >

int gsl::wavelet::transform_inverse	(	DATA &	data,
		size_t	stride,
		workspace &	work
	)		const

inline

C++ version of gsl_wavelet_transform_inverse().

This version works on std::vector<double> and gsl::vector

Parameters

data	Data array
stride	Stride
work	Supply a workspace of size n

Returns: Error code on failure

Definition at line 553 of file wavelet.hpp.

References get(), and gsl::wavelet::workspace::get().

◆ transform_inverse() [2/2]

template<typename DATA >

int gsl::wavelet::transform_inverse	(	DATA &	data,
		workspace &	work
	)		const

inline

C++ version of gsl_wavelet_transform_inverse().

This version handles std::vector and gsl::vector.

Parameters

data	Data array
work	Supply a workspace of size n

Returns: Error code on failure

Definition at line 588 of file wavelet.hpp.

References get(), and gsl::wavelet::workspace::get().

◆ unique()

bool gsl::wavelet::unique ( ) const

inline

Find if this is the only object sharing the gsl_wavelet.

Returns: true or falses according as this is the only wavelet object sharing the gsl_wavelet.

Definition at line 217 of file wavelet.hpp.

References count.

◆ use_count()

size_t gsl::wavelet::use_count ( ) const

inline

Find how many wavelet objects share this pointer.

Returns: the number of wavelet objects that share this pointer.

Definition at line 222 of file wavelet.hpp.

References count.

Member Data Documentation

◆ ccgsl_pointer

gsl_wavelet* gsl::wavelet::ccgsl_pointer

protected

The shared pointer.

Definition at line 200 of file wavelet.hpp.

Referenced by empty(), get(), operator bool(), operator<(), operator<=(), operator=(), gsl::wavelet2d::operator=(), operator==(), operator>(), operator>=(), swap(), wavelet(), gsl::wavelet2d::wavelet2d(), and ~wavelet().

◆ count

size_t* gsl::wavelet::count

protected

The shared reference count.

Definition at line 204 of file wavelet.hpp.

Referenced by operator=(), gsl::wavelet2d::operator=(), swap(), unique(), use_count(), wavelet(), gsl::wavelet2d::wavelet2d(), and ~wavelet().

The documentation for this class was generated from the following file:

wavelet.hpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ type

Constructor & Destructor Documentation

◆ wavelet() [1/5]

◆ wavelet() [2/5]

◆ wavelet() [3/5]

◆ wavelet() [4/5]

◆ ~wavelet()

◆ wavelet() [5/5]

Member Function Documentation

◆ backward()

◆ bspline()

◆ bspline_centered()

◆ daubechies()

◆ daubechies_centered()

◆ empty()

◆ forward()

◆ get()

◆ haar()

◆ haar_centered()

◆ name()

◆ operator bool()

◆ operator!=()

◆ operator<()

◆ operator<=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator>()

◆ operator>=()

◆ swap()

◆ transform() [1/2]

◆ transform() [2/2]

◆ transform_forward() [1/2]

◆ transform_forward() [2/2]

◆ transform_inverse() [1/2]

◆ transform_inverse() [2/2]

◆ unique()

◆ use_count()

Member Data Documentation

◆ ccgsl_pointer

◆ count
