Workspace for solving multidimensional root finding problems. More...

#include <multiroots.hpp>

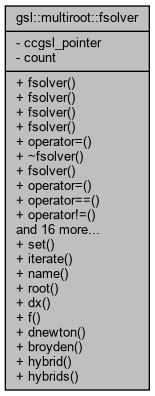

Collaboration diagram for gsl::multiroot::fsolver:

Public Types
typedef gsl_multiroot_fsolver_type	type
	Typedef. More...

Public Member Functions
	fsolver ()
	The default constructor is only really useful for assigning to. More...

	fsolver (type const *T, size_t const n)
	The default constructor creates a new fsolver with n elements. More...

	fsolver (gsl_multiroot_fsolver *v)
	Could construct from a gsl_multiroot_fsolver. More...

	fsolver (fsolver const &v)
	The copy constructor. More...

fsolver &	operator= (fsolver const &v)
	The assignment operator. More...

	~fsolver ()
	The destructor only deletes the pointers if count reaches zero. More...

	fsolver (fsolver &&v)
	Move constructor. More...

fsolver &	operator= (fsolver &&v)
	Move operator. More...

bool	operator== (fsolver const &v) const
	Two fsolver are identically equal if their elements are identical. More...

bool	operator!= (fsolver const &v) const
	Two fsolver are different if their elements are not identical. More...

bool	operator< (fsolver const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator> (fsolver const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator<= (fsolver const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator>= (fsolver const &v) const
	A container needs to define an ordering for sorting. More...

bool	empty () const
	Find if the fsolver is empty. More...

void	swap (fsolver &v)
	Swap two fsolver objects. More...

gsl_multiroot_fsolver *	get () const
	Get the gsl_multiroot_fsolver. More...

bool	unique () const
	Find if this is the only object sharing the gsl_multiroot_fsolver. More...

size_t	use_count () const
	Find how many fsolver objects share this pointer. More...

	operator bool () const
	Allow conversion to bool. More...

int	set (function &f, vector const &x)
	C++ version of gsl_multiroot_fsolver_set(). More...

int	iterate ()
	C++ version of gsl_multiroot_fsolver_iterate(). More...

char const *	name ()
	C++ version of gsl_multiroot_fsolver_name(). More...

vector const	root ()
	C++ version of gsl_multiroot_fsolver_root(). More...

vector const	dx ()
	C++ version of gsl_multiroot_fsolver_dx(). More...

vector const	f ()
	C++ version of gsl_multiroot_fsolver_f(). More...

Static Public Member Functions
static int	set (fsolver &s, function &f, vector const &x)
	C++ version of gsl_multiroot_fsolver_set(). More...

static int	iterate (fsolver &s)
	C++ version of gsl_multiroot_fsolver_iterate(). More...

static std::string	name (fsolver const &s)
	C++ version of gsl_multiroot_fsolver_name(). More...

static vector	root (fsolver const &s)
	C++ version of gsl_multiroot_fsolver_root(). More...

static vector	dx (fsolver const &s)
	C++ version of gsl_multiroot_fsolver_dx(). More...

static vector	f (fsolver const &s)
	C++ version of gsl_multiroot_fsolver_f(). More...

static type const *	dnewton ()
	Static type. More...

static type const *	broyden ()
	Static type. More...

static type const *	hybrid ()
	Static type. More...

static type const *	hybrids ()
	Static type. More...

Private Attributes
gsl_multiroot_fsolver *	ccgsl_pointer
	The shared pointer. More...

size_t *	count
	The shared reference count. More...

Detailed Description

Workspace for solving multidimensional root finding problems.

Also functions as a namespace for fsolver functions. This also allows for functions to be called on fsolver as an object.

Definition at line 65 of file multiroots.hpp.

Member Typedef Documentation

◆ type

typedef gsl_multiroot_fsolver_type gsl::multiroot::fsolver::type

Typedef.

Definition at line 70 of file multiroots.hpp.

Constructor & Destructor Documentation

◆ fsolver() [1/5]

gsl::multiroot::fsolver::fsolver ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 74 of file multiroots.hpp.

References ccgsl_pointer, and count.

Referenced by operator=().

◆ fsolver() [2/5]

gsl::multiroot::fsolver::fsolver	(	type const *	T,
		size_t const	n
	)

inlineexplicit

The default constructor creates a new fsolver with n elements.

Parameters

T	The fsolver type.
n	The number of elements in the fsolver.

Definition at line 85 of file multiroots.hpp.

References ccgsl_pointer, count, and gsl::rstat::n().

◆ fsolver() [3/5]

gsl::multiroot::fsolver::fsolver ( gsl_multiroot_fsolver * v )

inlineexplicit

Could construct from a gsl_multiroot_fsolver.

This is not usually a good idea. In this case we should not use gsl_multiroot_fsolver_free() to deallocate the memory.

Parameters

v	The fsolver

Definition at line 101 of file multiroots.hpp.

References ccgsl_pointer, and count.

◆ fsolver() [4/5]

gsl::multiroot::fsolver::fsolver ( fsolver const & v )

inline

The copy constructor.

This creates a new reference to the workspace.

Parameters

v	The fsolver to copy.

Definition at line 112 of file multiroots.hpp.

References ccgsl_pointer, and count.

◆ ~fsolver()

gsl::multiroot::fsolver::~fsolver ( )

inline

The destructor only deletes the pointers if count reaches zero.

Definition at line 131 of file multiroots.hpp.

References ccgsl_pointer, and count.

◆ fsolver() [5/5]

gsl::multiroot::fsolver::fsolver ( fsolver && v )

inline

Move constructor.

Parameters

v	The fsolver to move.

Definition at line 143 of file multiroots.hpp.

References count.

Member Function Documentation

◆ broyden()

static type const * gsl::multiroot::fsolver::broyden ( )

inlinestatic

Static type.

Returns: the named fsolver type

Definition at line 421 of file multiroots.hpp.

◆ dnewton()

static type const * gsl::multiroot::fsolver::dnewton ( )

inlinestatic

Static type.

Returns: the named fsolver type

Definition at line 416 of file multiroots.hpp.

◆ dx() [1/2]

vector const gsl::multiroot::fsolver::dx ( )

inline

C++ version of gsl_multiroot_fsolver_dx().

Note that it is this fsolver and not the return value that owns the data in the return value.

Returns: The last step taken by the solver.

Definition at line 393 of file multiroots.hpp.

References gsl::rstat::quantile::get().

◆ dx() [2/2]

static vector gsl::multiroot::fsolver::dx ( fsolver const & s )

inlinestatic

C++ version of gsl_multiroot_fsolver_dx().

Note that it is s and not the return value that owns the data in the return value.

Parameters

s	The fsolver.

Returns: The last step taken by the solver.

Definition at line 324 of file multiroots.hpp.

References get().

◆ empty()

bool gsl::multiroot::fsolver::empty ( ) const

inline

Find if the fsolver is empty.

Returns: true if has size zero; otherwise false

Definition at line 220 of file multiroots.hpp.

References ccgsl_pointer.

◆ f() [1/2]

vector const gsl::multiroot::fsolver::f ( )

inline

C++ version of gsl_multiroot_fsolver_f().

Note that it is this fsolver and not the return value that owns the data in the return value.

Returns: The function value at the current estimate of the root.

Definition at line 405 of file multiroots.hpp.

References gsl::rstat::quantile::get().

◆ f() [2/2]

static vector gsl::multiroot::fsolver::f ( fsolver const & s )

inlinestatic

C++ version of gsl_multiroot_fsolver_f().

Note that it is s and not the return value that owns the data in the return value.

Parameters

s	The fsolver.

Returns: The function value at the current estimate of the root.

Definition at line 336 of file multiroots.hpp.

References get().

◆ get()

gsl_multiroot_fsolver * gsl::multiroot::fsolver::get ( ) const

inline

Get the gsl_multiroot_fsolver.

Returns: the gsl_multiroot_fsolver

Definition at line 246 of file multiroots.hpp.

References ccgsl_pointer.

Referenced by dx(), f(), iterate(), name(), and root().

◆ hybrid()

static type const * gsl::multiroot::fsolver::hybrid ( )

inlinestatic

Static type.

Returns: the named fsolver type

Definition at line 426 of file multiroots.hpp.

◆ hybrids()

static type const * gsl::multiroot::fsolver::hybrids ( )

inlinestatic

Static type.

Returns: the named fsolver type

Definition at line 431 of file multiroots.hpp.

◆ iterate() [1/2]

int gsl::multiroot::fsolver::iterate ( )

inline

C++ version of gsl_multiroot_fsolver_iterate().

Returns: Error code on failure.

Definition at line 366 of file multiroots.hpp.

References gsl::rstat::quantile::get().

◆ iterate() [2/2]

static int gsl::multiroot::fsolver::iterate ( fsolver & s )

inlinestatic

C++ version of gsl_multiroot_fsolver_iterate().

Parameters

s	The fsolver.

Returns: Error code on failure.

Definition at line 294 of file multiroots.hpp.

References get().

◆ name() [1/2]

char const * gsl::multiroot::fsolver::name ( )

inline

C++ version of gsl_multiroot_fsolver_name().

Returns: The name of the solver.

Definition at line 373 of file multiroots.hpp.

References gsl::rstat::quantile::get().

◆ name() [2/2]

static std::string gsl::multiroot::fsolver::name ( fsolver const & s )

inlinestatic

C++ version of gsl_multiroot_fsolver_name().

Parameters

s	The fsolver.

Returns: The name of the solver.

Definition at line 302 of file multiroots.hpp.

References get().

◆ operator bool()

gsl::multiroot::fsolver::operator bool ( ) const

inlineexplicit

Allow conversion to bool.

Returns: true or false according as this contains a pointer to a gsl_multiroot_fsolver.

Definition at line 266 of file multiroots.hpp.

References ccgsl_pointer.

◆ operator!=()

bool gsl::multiroot::fsolver::operator!= ( fsolver const & v ) const

inline

Two fsolver are different if their elements are not identical.

Parameters

v	The fsolver to be compared with `this`

Returns: false or true according as this and v have identical elements or not

Definition at line 173 of file multiroots.hpp.

References operator==().

◆ operator<()

bool gsl::multiroot::fsolver::operator< ( fsolver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fsolver is nonnegative.

Parameters

v	The fsolver to be compared with `this`

Returns: false or true according as this is less than v lexicographically

Definition at line 185 of file multiroots.hpp.

References ccgsl_pointer.

◆ operator<=()

bool gsl::multiroot::fsolver::operator<= ( fsolver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fsolver is nonnegative.

Parameters

v	The fsolver to be compared with `this`

Returns: false or true according as this is less than or equal to v lexicographically

Definition at line 205 of file multiroots.hpp.

References ccgsl_pointer.

◆ operator=() [1/2]

fsolver & gsl::multiroot::fsolver::operator= ( fsolver && v )

inline

Move operator.

Parameters

v	The fsolver to move.

Returns: A reference to this.

Definition at line 152 of file multiroots.hpp.

References fsolver().

◆ operator=() [2/2]

fsolver & gsl::multiroot::fsolver::operator= ( fsolver const & v )

inline

The assignment operator.

This copies elementwise.

Parameters

v	The fsolver to copy

Definition at line 119 of file multiroots.hpp.

References ccgsl_pointer, and count.

◆ operator==()

bool gsl::multiroot::fsolver::operator== ( fsolver const & v ) const

inline

Two fsolver are identically equal if their elements are identical.

Parameters

v	The fsolver to be compared with `this`

Returns: true or false according as this and v have identical elements or not

Definition at line 165 of file multiroots.hpp.

References ccgsl_pointer.

Referenced by operator!=().

◆ operator>()

bool gsl::multiroot::fsolver::operator> ( fsolver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fsolver is nonnegative.

Parameters

v	The fsolver to be compared with `this`

Returns: false or true according as this is greater than v lexicographically

Definition at line 195 of file multiroots.hpp.

References ccgsl_pointer.

◆ operator>=()

bool gsl::multiroot::fsolver::operator>= ( fsolver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a fsolver is nonnegative.

Parameters

v	The fsolver to be compared with `this`

Returns: false or true according as this is no less than v lexicographically

Definition at line 215 of file multiroots.hpp.

References ccgsl_pointer.

◆ root() [1/2]

vector const gsl::multiroot::fsolver::root ( )

inline

C++ version of gsl_multiroot_fsolver_root().

Note that it is this fsolver and not the return value that owns the data in the return value.

Returns: The current estimate of the root.

Definition at line 381 of file multiroots.hpp.

References gsl::rstat::quantile::get().

◆ root() [2/2]

static vector gsl::multiroot::fsolver::root ( fsolver const & s )

inlinestatic

C++ version of gsl_multiroot_fsolver_root().

Note that it is s and not the return value that owns the data in the return value.

Parameters

s	The fsolver.

Returns: The current estimate of the root.

Definition at line 312 of file multiroots.hpp.

References get().

◆ set() [1/2]

static int gsl::multiroot::fsolver::set	(	fsolver &	s,
		function &	f,
		vector const &	x
	)

inlinestatic

C++ version of gsl_multiroot_fsolver_set().

Parameters

s	The fsolver.
f	The function.
x	The initial guess of the root.

Returns: Error code on failure.

Definition at line 286 of file multiroots.hpp.

◆ set() [2/2]

int gsl::multiroot::fsolver::set	(	function &	f,
		vector const &	x
	)

inline

C++ version of gsl_multiroot_fsolver_set().

Parameters

f	The function.
x	The initial guess of the root.

Returns: Error code on failure.

Definition at line 359 of file multiroots.hpp.

◆ swap()

void gsl::multiroot::fsolver::swap ( fsolver & v )

inline

Swap two fsolver objects.

This works even if the fsolver have different sizes because it swaps pointers.

Parameters

v	The fsolver to swap with `this`.

Definition at line 227 of file multiroots.hpp.

References ccgsl_pointer, and count.

◆ unique()

bool gsl::multiroot::fsolver::unique ( ) const

inline

Find if this is the only object sharing the gsl_multiroot_fsolver.

Returns: true or falses according as this is the only workspace object sharing the gsl_multiroot_fsolver.

Definition at line 252 of file multiroots.hpp.

References count.

◆ use_count()

size_t gsl::multiroot::fsolver::use_count ( ) const

inline

Find how many fsolver objects share this pointer.

Returns: the number of workspace objects that share this pointer.

Definition at line 257 of file multiroots.hpp.

References count.

Member Data Documentation

◆ ccgsl_pointer

gsl_multiroot_fsolver* gsl::multiroot::fsolver::ccgsl_pointer

private

The shared pointer.

Definition at line 235 of file multiroots.hpp.

Referenced by empty(), fsolver(), get(), operator bool(), operator<(), operator<=(), operator=(), operator==(), operator>(), operator>=(), swap(), and ~fsolver().

◆ count

size_t* gsl::multiroot::fsolver::count

private

The shared reference count.

Definition at line 239 of file multiroots.hpp.

Referenced by fsolver(), operator=(), swap(), unique(), use_count(), and ~fsolver().

The documentation for this class was generated from the following file:

multiroots.hpp

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ type

Constructor & Destructor Documentation

◆ fsolver() [1/5]

◆ fsolver() [2/5]

◆ fsolver() [3/5]

◆ fsolver() [4/5]

◆ ~fsolver()

◆ fsolver() [5/5]

Member Function Documentation

◆ broyden()

◆ dnewton()

◆ dx() [1/2]

◆ dx() [2/2]

◆ empty()

◆ f() [1/2]

◆ f() [2/2]

◆ get()

◆ hybrid()

◆ hybrids()

◆ iterate() [1/2]

◆ iterate() [2/2]

◆ name() [1/2]

◆ name() [2/2]

◆ operator bool()

◆ operator!=()

◆ operator<()

◆ operator<=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator>()

◆ operator>=()

◆ root() [1/2]

◆ root() [2/2]

◆ set() [1/2]

◆ set() [2/2]

◆ swap()

◆ unique()

◆ use_count()

Member Data Documentation

◆ ccgsl_pointer

◆ count
