Class for an objective function. More...

#include <Objective.hpp>

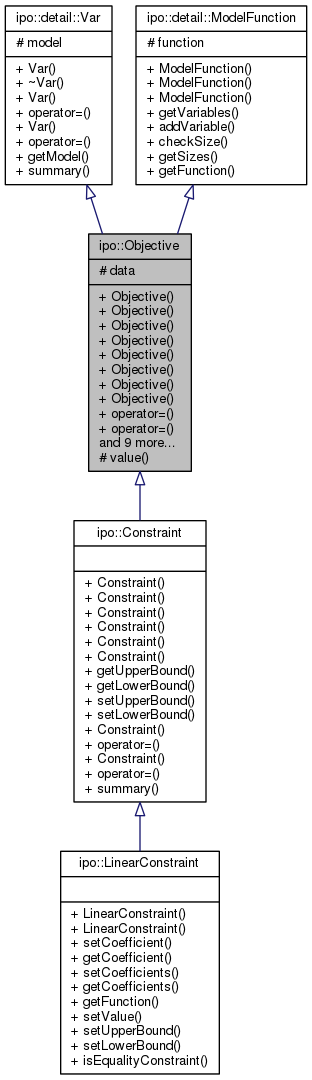

Inheritance diagram for ipo::Objective:

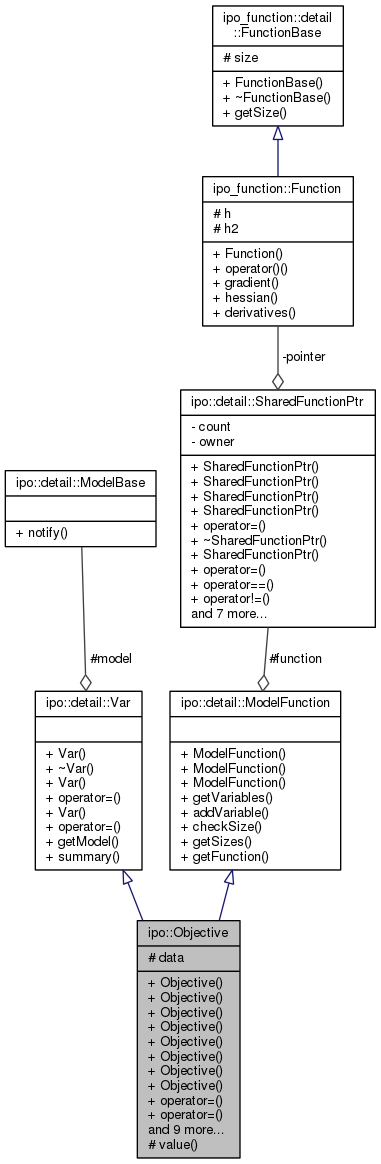

Collaboration diagram for ipo::Objective:

Classes
struct	Data
	Struct to contain Constraint data. More...

Public Member Functions
	Objective (detail::ModelBase &model, detail::SharedFunctionPtr function, std::string const &name)
	Use this constructor to construct from a SharedFunctionPtr object. More...

	Objective (detail::ModelBase &model, ipo_function::Function *function, std::string const &name)
	Use this constructor to construct from a pointer to a ipo_function::Function object. More...

	Objective (detail::ModelBase &model, ipo_function::Function &function, std::string const &name)
	Use this constructor to construct from a ipo_function::Function object by reference. More...

	Objective (detail::ModelBase &model, detail::SharedFunctionPtr function, char const *const name=0)
	Use this constructor to construct from a SharedFunctionPtr object. More...

	Objective (detail::ModelBase &model, ipo_function::Function function, char const const name=0)
	Use this constructor to construct from a pointer to a ipo_function::Function object. More...

	Objective (detail::ModelBase &model, ipo_function::Function &function, char const *const name=0)
	Constructor. More...

	Objective (Objective const &objective)
	Copy constructor. More...

	Objective (Objective &&objective)
	Move constructor. More...

Objective &	operator= (Objective const &objective)
	Assignment operator. More...

Objective &	operator= (Objective &&objective)
	Assignment operator. More...

std::string	getName () const
	Get name of variable. More...

void	setName (std::string const &name)
	Set name of Objective. More...

void	setName (char *const name)
	Set name of Objective. More...

Array &	getVariables ()
	Get variables used by Objective function. More...

void	addVariable (Variable &variable)
	Add a Variable. More...

void	removeVariable (Variable &variable)
	Remove (first, and usually only occurrence of) a Variable. More...

void	addArray (Array &array)
	Add an Array. More...

void	removeArray (Array &array)
	Remove an Array. More...

virtual void	summary (std::ostream &ostream=std::cout, std::string const &prefix="") const override
	Create a summary of this function. More...

Public Member Functions inherited from ipo::detail::Var
	Var (ModelBase &model)
	Constructor needs a model so that variable can only be attached to one model. More...

virtual	~Var ()=0
	Virtual destructor to make class abstract. More...

	Var (Var &var)
	Copy constructor. More...

Var &	operator= (Var &var)
	Copy assignment operator. More...

	Var (Var &&var)
	Move constructor. More...

Var &	operator= (Var &&var)
	Move assignment operator. More...

ModelBase const *const	getModel () const
	Get pointer to model. More...

Public Member Functions inherited from ipo::detail::ModelFunction
	ModelFunction (SharedFunctionPtr function)
	Use this constructor to construct from a SharedFunctionPtr object. More...

	ModelFunction (ipo_function::Function *function)
	Use this constructor to construct from a pointer to a ipo_function::Function object. More...

	ModelFunction (ipo_function::Function &function)
	Use this constructor to construct from a ipo_function::Function object by reference. More...

bool	checkSize () const
	Check size of vector for function arguments matches number of variables supplied. More...

std::tuple< size_t, size_t >	getSizes () const
	Get size of vector for function arguments and number of variables supplied. More...

virtual ::ipo_function::Function *	getFunction ()
	Get function. More...

Protected Member Functions
double	value () const noexcept
	Value of the objective function at the current value of the variables. More...

Protected Attributes
std::shared_ptr< Data >	data
	The objective data. More...

Protected Attributes inherited from ipo::detail::Var
ModelBase &	model
	A Model to attach this to. More...

Protected Attributes inherited from ipo::detail::ModelFunction
SharedFunctionPtr	function
	The objective or constraint function. More...

Detailed Description

Class for an objective function.

The function should be set from an object of a subclass of ipo_function::Function. Use getVariables() = ... to specify an Array or Variable for the objective function to use. Note that setting getVariables also implicitly determines the size of the vector to be passed to function, but this class does not check the sizes of variables and function arguments match. Note also that if function is destructed before an Objective object that uses it, the behaviour of the Objective object is undefined.

Definition at line 37 of file Objective.hpp.

Constructor & Destructor Documentation

Objective::Objective	(	detail::ModelBase &	model,
		detail::SharedFunctionPtr	function,
		std::string const &	name
	)

Use this constructor to construct from a SharedFunctionPtr object.

Parameters

model	A Model
function	A SharedFunctionPtr object
name	A name for this object

Definition at line 28 of file Objective.cc.

Objective::Objective	(	detail::ModelBase &	model,
		ipo_function::Function *	function,
		std::string const &	name
	)

Use this constructor to construct from a pointer to a ipo_function::Function object.

The Function object should be constructed using new and should not be deleted explicitly.

Parameters

model	A Model
function	A pointer to an object of a subclass of ipo_function::Function
name	A name for this object

Definition at line 39 of file Objective.cc.

References ipo::detail::Var::model.

Objective::Objective	(	detail::ModelBase &	model,
		ipo_function::Function &	function,
		std::string const &	name
	)

Use this constructor to construct from a ipo_function::Function object by reference.

The Function object must remain in scope for the Objective object to be useable.

Parameters

model	A Model
function	An object of a subclass of ipo_function::Function
name	A name for this object

Definition at line 43 of file Objective.cc.

References ipo::detail::Var::model.

Objective::Objective	(	detail::ModelBase &	model,
		detail::SharedFunctionPtr	function,
		char const *const	name = `0`
	)

Use this constructor to construct from a SharedFunctionPtr object.

Parameters

model	A Model
function	A SharedFunctionPtr object
name	A name for this object

Definition at line 47 of file Objective.cc.

References ipo::detail::Var::model.

Objective::Objective	(	detail::ModelBase &	model,
		ipo_function::Function *	function,
		char const *const	name = `0`
	)

Use this constructor to construct from a pointer to a ipo_function::Function object.

The Function object should be constructed using new and should not be deleted explicitly.

Parameters

model	A Model
function	A pointer to an object of a subclass of ipo_function::Function
name	A name for this object

Definition at line 51 of file Objective.cc.

References ipo::detail::Var::model.

Objective::Objective	(	detail::ModelBase &	model,
		ipo_function::Function &	function,
		char const *const	name = `0`
	)

Constructor.

Parameters

model	A Model
function	An object of a subclass of ipo_function::Function
name	A name for this object

Definition at line 55 of file Objective.cc.

References ipo::detail::Var::model.

Objective::Objective ( Objective const & objective )

Copy constructor.

Parameters

objective The Objective to copy

Definition at line 80 of file Objective.cc.

References ipo::detail::Var::model.

Objective::Objective ( Objective && objective )

Move constructor.

Parameters

objective The Objective to move

Definition at line 87 of file Objective.cc.

References ipo::detail::Var::model.

Member Function Documentation

void Objective::addArray ( Array & array )

Add an Array.

It should contain no Variable already added.

Parameters

array The Array

Exceptions

IPOException if array is not in Model or any Variable is already added.

Definition at line 146 of file Objective.cc.

References ipo::detail::Var::getModel(), getName(), ipo::Array::getName(), getVariables(), IPOE, ipo::Array::push_back(), and RETHROW.

void Objective::addVariable ( Variable & variable )

virtual

Add a Variable.

If you really need to add a Variable more than once, use getVariables().push_back( variable ).

Parameters

variable The Variable to add

Exceptions

IPOException if Variable is not in Model or variable already added.

Reimplemented from ipo::detail::ModelFunction.

Definition at line 113 of file Objective.cc.

References ipo::Variable::getName(), getName(), getVariables(), IPOE, and RETHROW.

std::string Objective::getName ( ) const

Get name of variable.

Returns: name of variable.

Definition at line 60 of file Objective.cc.

References data.

Referenced by addArray(), addVariable(), removeArray(), removeVariable(), ipo::Constraint::summary(), summary(), and ipo::Model::testSizes().

Array & Objective::getVariables ( )

virtual

Get variables used by Objective function.

Returns: The variables used by objective function

Implements ipo::detail::ModelFunction.

Definition at line 75 of file Objective.cc.

References data, ipo::detail::Var::model, and ipo::detail::ModelBase::notify().

Referenced by addArray(), addVariable(), ipo::LinearConstraint::getCoefficient(), ipo::LinearConstraint::getCoefficients(), ipo::LinearConstraint::getFunction(), removeArray(), removeVariable(), ipo::LinearConstraint::setCoefficient(), ipo::LinearConstraint::setCoefficients(), ipo::Model::setConstraintIndices(), ipo::detail::PhaseIModel::setIndices(), ipo::Model::setIndices(), ipo::Model::setObjectiveIndices(), and value().

Objective & Objective::operator= ( Objective const & objective )

Assignment operator.

Parameters

objective The Objective to copy

Definition at line 94 of file Objective.cc.

References data, ipo::detail::ModelFunction::function, ipo::detail::Var::model, and ipo::detail::ModelBase::notify().

Objective & Objective::operator= ( Objective && objective )

Assignment operator.

Parameters

objective The Objective to move

Definition at line 103 of file Objective.cc.

References data, and ipo::detail::Var::model.

void Objective::removeArray ( Array & array )

Remove an Array.

It should contain no Variable not already added.

Parameters

array The Array

Exceptions

IPOException if any Variable is not already added.

Definition at line 171 of file Objective.cc.

References ipo::Array::erase(), ipo::detail::Var::getModel(), getName(), ipo::Array::getName(), getVariables(), IPOE, and RETHROW.

void Objective::removeVariable ( Variable & variable )

Remove (first, and usually only occurrence of) a Variable.

Parameters

variable The Variable to remove

Exceptions

IPOException if Variable is not in this

Definition at line 129 of file Objective.cc.

References ipo::Variable::getName(), getName(), getVariables(), IPOE, and RETHROW.

void Objective::setName ( std::string const & name )

Set name of Objective.

Parameters

name	The new name.

Definition at line 65 of file Objective.cc.

References data, and name.

void Objective::setName ( char *const name )

Set name of Objective.

Parameters

name	The new name.

Definition at line 70 of file Objective.cc.

References data, and name.

void Objective::summary	(	std::ostream &	ostream = `std::cout`,
		std::string const &	prefix = `""`
	)		const

overridevirtual

Create a summary of this function.

This should be a description of the objective function and its variables.

Parameters

ostream	The stream to print to.
prefix	This is put in front of every row of output, for example for indentation

Implements ipo::detail::Var.

Reimplemented in ipo::Constraint.

Definition at line 198 of file Objective.cc.

References getName(), and value().

Referenced by ipo::Model::summary().

double Objective::value ( ) const

protectednoexcept

Value of the objective function at the current value of the variables.

Returns: An estimate (if available) of objective function at the current value of the variables.

Definition at line 209 of file Objective.cc.

References getVariables(), and ipo::Array::size().

Referenced by ipo::LinearConstraint::setCoefficient(), ipo::LinearConstraint::setValue(), ipo::Constraint::summary(), and summary().

Member Data Documentation

std::shared_ptr<Data> ipo::Objective::data

protected

The objective data.

Definition at line 205 of file Objective.hpp.

Referenced by ipo::Constraint::getLowerBound(), getName(), ipo::Constraint::getUpperBound(), getVariables(), operator=(), ipo::Constraint::operator=(), ipo::operator==(), ipo::LinearConstraint::setLowerBound(), ipo::Constraint::setLowerBound(), setName(), ipo::LinearConstraint::setUpperBound(), ipo::Constraint::setUpperBound(), and ipo::LinearConstraint::setValue().

The documentation for this class was generated from the following files:
