ODE driver. More...

#include <odeiv2.hpp>

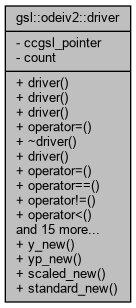

Collaboration diagram for gsl::odeiv2::driver:

Public Member Functions
	driver ()
	The default constructor is only really useful for assigning to. More...

	driver (gsl_odeiv2_driver *v)
	Could construct from a gsl_odeiv2_driver. More...

	driver (driver const &v)
	The copy constructor. More...

driver &	operator= (driver const &v)
	The assignment operator. More...

	~driver ()
	The destructor only deletes the pointers if count reaches zero. More...

	driver (driver &&v)
	Move constructor. More...

driver &	operator= (driver &&v)
	Move operator. More...

bool	operator== (driver const &v) const
	Two driver are identically equal if their elements are identical. More...

bool	operator!= (driver const &v) const
	Two driver are different if their elements are not identical. More...

bool	operator< (driver const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator> (driver const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator<= (driver const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator>= (driver const &v) const
	A container needs to define an ordering for sorting. More...

bool	empty () const
	Find if the driver is empty. More...

void	swap (driver &v)
	Swap two driver objects. More...

gsl_odeiv2_driver *	get () const
	Get the gsl_odeiv2_driver. More...

bool	unique () const
	Find if this is the only object sharing the gsl_odeiv2_driver. More...

size_t	use_count () const
	Find how many driver objects share this pointer. More...

	operator bool () const
	Allow conversion to bool. More...

int	set_hmin (double const hmin)
	C++ version of gsl_odeiv2_driver_set_hmin(). More...

int	set_hmax (double const hmax)
	C++ version of gsl_odeiv2_driver_set_hmax(). More...

int	set_nmax (unsigned long int const nmax)
	C++ version of gsl_odeiv2_driver_set_nmax(). More...

template<typename Y >
int	apply (double &t, double const t1, Y &y)
	C++ version of gsl_odeiv2_driver_apply(). More...

template<typename Y >
int	apply_fixed_step (double &t, double const h, unsigned long int const n, Y &y)
	C++ version of gsl_odeiv2_driver_apply_fixed_step(). More...

int	reset ()
	C++ version of gsl_odeiv2_driver_reset(). More...

Static Public Member Functions
static driver	y_new (system const sys, step::type const T, double const hstart, double const epsabs, double const epsrel)
	C++ version of gsl_odeiv2_driver_alloc_y_new(). More...

static driver	yp_new (system const sys, step::type const T, double const hstart, double const epsabs, double const epsrel)
	C++ version of gsl_odeiv2_driver_alloc_yp_new(). More...

template<typename SCALE_ABS >
static driver	scaled_new (system const &sys, step::type const *T, double const hstart, double const epsabs, double const epsrel, double const a_y, double const a_dydt, SCALE_ABS const &scale_abs)
	C++ version of gsl_odeiv2_driver_alloc_scaled_new(). More...

static driver	standard_new (system const &sys, step::type const *T, double const hstart, double const epsabs, double const epsrel, double const a_y, double const a_dydt)
	C++ version of gsl_odeiv2_driver_alloc_standard_new(). More...

Private Attributes
gsl_odeiv2_driver *	ccgsl_pointer
	The shared pointer. More...

size_t *	count
	The shared reference count. More...

Detailed Description

ODE driver.

Definition at line 1051 of file odeiv2.hpp.

Constructor & Destructor Documentation

◆ driver() [1/4]

gsl::odeiv2::driver::driver ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 1056 of file odeiv2.hpp.

References ccgsl_pointer, and count.

Referenced by operator=(), scaled_new(), standard_new(), y_new(), and yp_new().

◆ driver() [2/4]

gsl::odeiv2::driver::driver ( gsl_odeiv2_driver * v )

inlineexplicit

Could construct from a gsl_odeiv2_driver.

This is not usually a good idea. In this case we should not use gsl_odeiv2_driver_free() to deallocate the memory.

Parameters

v	The driver

Definition at line 1068 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ driver() [3/4]

gsl::odeiv2::driver::driver ( driver const & v )

inline

The copy constructor.

This creates a new reference to the workspace.

Parameters

v	The driver to copy.

Definition at line 1079 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ ~driver()

gsl::odeiv2::driver::~driver ( )

inline

The destructor only deletes the pointers if count reaches zero.

Definition at line 1098 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ driver() [4/4]

gsl::odeiv2::driver::driver ( driver && v )

inline

Move constructor.

Parameters

v	The driver to move.

Definition at line 1110 of file odeiv2.hpp.

References count.

Member Function Documentation

◆ apply()

template<typename Y >

int gsl::odeiv2::driver::apply	(	double &	t,
		double const	t1,
		Y &	y
	)

inline

C++ version of gsl_odeiv2_driver_apply().

This version allows y to be gsl::vector (or object for which data() returns an array of doubles)

Parameters

t	Initial value of time t
t1	Maximum value of time t
y	Initial value of y

Returns: Error code on failure

Definition at line 1369 of file odeiv2.hpp.

References get().

◆ apply_fixed_step()

template<typename Y >

int gsl::odeiv2::driver::apply_fixed_step	(	double &	t,
		double const	h,
		unsigned long int const	n,
		Y &	y
	)

inline

C++ version of gsl_odeiv2_driver_apply_fixed_step().

This version allows y to be gsl::vector (or object for which data() returns an array of doubles)

Parameters

t	Initial value of time t
h	Fixed step size
n	Number of steps
y	Initial value of y

Returns: Error code on faiure

Definition at line 1395 of file odeiv2.hpp.

References get(), and gsl::rstat::n().

◆ empty()

bool gsl::odeiv2::driver::empty ( ) const

inline

Find if the driver is empty.

Returns: true if has size zero; otherwise false

Definition at line 1187 of file odeiv2.hpp.

References ccgsl_pointer.

◆ get()

gsl_odeiv2_driver * gsl::odeiv2::driver::get ( ) const

inline

Get the gsl_odeiv2_driver.

Returns: the gsl_odeiv2_driver

Definition at line 1213 of file odeiv2.hpp.

References ccgsl_pointer.

Referenced by apply(), apply_fixed_step(), reset(), gsl::odeiv2::step::set_driver(), gsl::odeiv2::control::set_driver(), gsl::odeiv2::evolve::set_driver(), set_hmax(), set_hmin(), and set_nmax().

◆ operator bool()

gsl::odeiv2::driver::operator bool ( ) const

inlineexplicit

Allow conversion to bool.

Returns: true or false according as this contains a pointer to a gsl_odeiv2_driver.

Definition at line 1233 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator!=()

bool gsl::odeiv2::driver::operator!= ( driver const & v ) const

inline

Two driver are different if their elements are not identical.

Parameters

v	The driver to be compared with `this`

Returns: false or true according as this and v have identical elements or not

Definition at line 1140 of file odeiv2.hpp.

References operator==().

◆ operator<()

bool gsl::odeiv2::driver::operator< ( driver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a driver is nonnegative.

Parameters

v	The driver to be compared with `this`

Returns: false or true according as this is less than v lexicographically

Definition at line 1152 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator<=()

bool gsl::odeiv2::driver::operator<= ( driver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a driver is nonnegative.

Parameters

v	The driver to be compared with `this`

Returns: false or true according as this is less than or equal to v lexicographically

Definition at line 1172 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator=() [1/2]

driver & gsl::odeiv2::driver::operator= ( driver && v )

inline

Move operator.

Parameters

v	The driver to move.

Returns: A reference to this.

Definition at line 1119 of file odeiv2.hpp.

References driver().

◆ operator=() [2/2]

driver & gsl::odeiv2::driver::operator= ( driver const & v )

inline

The assignment operator.

This copies elementwise.

Parameters

v	The driver to copy

Definition at line 1086 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ operator==()

bool gsl::odeiv2::driver::operator== ( driver const & v ) const

inline

Two driver are identically equal if their elements are identical.

Parameters

v	The driver to be compared with `this`

Returns: true or false according as this and v have identical elements or not

Definition at line 1132 of file odeiv2.hpp.

References ccgsl_pointer.

Referenced by operator!=().

◆ operator>()

bool gsl::odeiv2::driver::operator> ( driver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a driver is nonnegative.

Parameters

v	The driver to be compared with `this`

Returns: false or true according as this is greater than v lexicographically

Definition at line 1162 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator>=()

bool gsl::odeiv2::driver::operator>= ( driver const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a driver is nonnegative.

Parameters

v	The driver to be compared with `this`

Returns: false or true according as this is no less than v lexicographically

Definition at line 1182 of file odeiv2.hpp.

References ccgsl_pointer.

◆ reset()

int gsl::odeiv2::driver::reset ( )

inline

C++ version of gsl_odeiv2_driver_reset().

Returns: Error code on failure

Definition at line 1402 of file odeiv2.hpp.

References get().

◆ scaled_new()

template<typename SCALE_ABS >

static driver gsl::odeiv2::driver::scaled_new	(	system const &	sys,
		step::type const *	T,
		double const	hstart,
		double const	epsabs,
		double const	epsrel,
		double const	a_y,
		double const	a_dydt,
		SCALE_ABS const &	scale_abs
	)

inlinestatic

C++ version of gsl_odeiv2_driver_alloc_scaled_new().

This version allows scale_abs to be gsl::vector (or object for which data() returns an array of dpoubles)

Parameters

sys	The system
T	The step t
hstart	The initial value of h
epsabs	The absolute error
epsrel	The relative error
a_y	Scaling factor for y
a_dydt	Scaling factor for dydt
scale_abs	An array of scales for absolute error

Returns: A driver

Definition at line 1301 of file odeiv2.hpp.

References driver().

◆ set_hmax()

int gsl::odeiv2::driver::set_hmax ( double const hmax )

inline

C++ version of gsl_odeiv2_driver_set_hmax().

Parameters

hmax	Maximum allowed step size

Returns: Error code on failure

Definition at line 1338 of file odeiv2.hpp.

References get().

◆ set_hmin()

int gsl::odeiv2::driver::set_hmin ( double const hmin )

inline

C++ version of gsl_odeiv2_driver_set_hmin().

Parameters

hmin	Minimum allowed step size

Returns: Error code on failure

Definition at line 1331 of file odeiv2.hpp.

References get().

◆ set_nmax()

int gsl::odeiv2::driver::set_nmax ( unsigned long int const nmax )

inline

C++ version of gsl_odeiv2_driver_set_nmax().

Parameters

nmax	Maximum number of steps

Returns: Error code on failure

Definition at line 1345 of file odeiv2.hpp.

References get().

◆ standard_new()

static driver gsl::odeiv2::driver::standard_new	(	system const &	sys,
		step::type const *	T,
		double const	hstart,
		double const	epsabs,
		double const	epsrel,
		double const	a_y,
		double const	a_dydt
	)

inlinestatic

C++ version of gsl_odeiv2_driver_alloc_standard_new().

Parameters

sys	The system
T	The step t
hstart	The initial value of h
epsabs	The absolute error
epsrel	The relative error
a_y	Scaling factor for y
a_dydt	Scaling factor for dydt

Returns: A driver

Definition at line 1320 of file odeiv2.hpp.

References driver().

◆ swap()

void gsl::odeiv2::driver::swap ( driver & v )

inline

Swap two driver objects.

This works even if the driver have different sizes because it swaps pointers.

Parameters

v	The driver to swap with `this`.

Definition at line 1194 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ unique()

bool gsl::odeiv2::driver::unique ( ) const

inline

Find if this is the only object sharing the gsl_odeiv2_driver.

Returns: true or falses according as this is the only driver object sharing the gsl_odeiv2_driver.

Definition at line 1219 of file odeiv2.hpp.

References count.

◆ use_count()

size_t gsl::odeiv2::driver::use_count ( ) const

inline

Find how many driver objects share this pointer.

Returns: the number of driver objects that share this pointer.

Definition at line 1224 of file odeiv2.hpp.

References count.

◆ y_new()

static driver gsl::odeiv2::driver::y_new	(	system const *	sys,
		step::type const *	T,
		double const	hstart,
		double const	epsabs,
		double const	epsrel
	)

inlinestatic

C++ version of gsl_odeiv2_driver_alloc_y_new().

Parameters

sys	The system
T	The step type
hstart	The initial value of h
epsabs	The absolute error
epsrel	The relative error

Returns: A driver

Definition at line 1246 of file odeiv2.hpp.

References driver().

◆ yp_new()

static driver gsl::odeiv2::driver::yp_new	(	system const *	sys,
		step::type const *	T,
		double const	hstart,
		double const	epsabs,
		double const	epsrel
	)

inlinestatic

C++ version of gsl_odeiv2_driver_alloc_yp_new().

Parameters

sys	The system
T	The step t
hstart	The initial value of h
epsabs	The absolute error
epsrel	The relative error

Returns: A driver

Definition at line 1260 of file odeiv2.hpp.

References driver().

Member Data Documentation

◆ ccgsl_pointer

gsl_odeiv2_driver* gsl::odeiv2::driver::ccgsl_pointer

private

The shared pointer.

Definition at line 1202 of file odeiv2.hpp.

Referenced by driver(), empty(), get(), operator bool(), operator<(), operator<=(), operator=(), operator==(), operator>(), operator>=(), swap(), and ~driver().

◆ count

size_t* gsl::odeiv2::driver::count

private

The shared reference count.

Definition at line 1206 of file odeiv2.hpp.

Referenced by driver(), operator=(), swap(), unique(), use_count(), and ~driver().

The documentation for this class was generated from the following file:

odeiv2.hpp

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ driver() [1/4]

◆ driver() [2/4]

◆ driver() [3/4]

◆ ~driver()

◆ driver() [4/4]

Member Function Documentation

◆ apply()

◆ apply_fixed_step()

◆ empty()

◆ get()

◆ operator bool()

◆ operator!=()

◆ operator<()

◆ operator<=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator>()

◆ operator>=()

◆ reset()

◆ scaled_new()

◆ set_hmax()

◆ set_hmin()

◆ set_nmax()

◆ standard_new()

◆ swap()

◆ unique()

◆ use_count()

◆ y_new()

◆ yp_new()

Member Data Documentation

◆ ccgsl_pointer

◆ count
