Stepping functions. More...

#include <odeiv2.hpp>

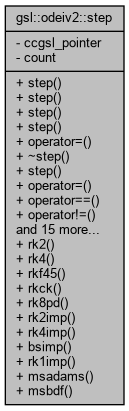

Collaboration diagram for gsl::odeiv2::step:

Public Types
typedef gsl_odeiv2_step_type	type
	Convenience typedef. More...

Public Member Functions
	step ()
	The default constructor is only really useful for assigning to. More...

	step (step::type const *T, size_t dim)
	The standard constructor creates a new step of type T and dimensions dim. More...

	step (gsl_odeiv2_step *v)
	Could construct from a gsl_odeiv2_step. More...

	step (step const &v)
	The copy constructor. More...

step &	operator= (step const &v)
	The assignment operator. More...

	~step ()
	The destructor only deletes the pointers if count reaches zero. More...

	step (step &&v)
	Move constructor. More...

step &	operator= (step &&v)
	Move operator. More...

bool	operator== (step const &v) const
	Two step are identically equal if their elements are identical. More...

bool	operator!= (step const &v) const
	Two step are different if their elements are not identical. More...

bool	operator< (step const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator> (step const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator<= (step const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator>= (step const &v) const
	A container needs to define an ordering for sorting. More...

bool	empty () const
	Find if the step is empty. More...

void	swap (step &v)
	Swap two step objects. More...

gsl_odeiv2_step *	get () const
	Get the gsl_odeiv2_step. More...

bool	unique () const
	Find if this is the only object sharing the gsl_odeiv2_step. More...

size_t	use_count () const
	Find how many step objects share this pointer. More...

	operator bool () const
	Allow conversion to bool. More...

int	reset ()
	C++ version of gsl_odeiv2_step_reset(). More...

char const *	name () const
	C++ version of gsl_odeiv2_step_name(). More...

unsigned int	order ()
	C++ version of gsl_odeiv2_step_order(). More...

template<typename Y , typename YERR , typename DYDT_IN , typename DYDT_OUT >
int	apply (double t, double h, Y &y, YERR &yerr, DYDT_IN const &dydt_in, DYDT_OUT dydt_out, system const &sys)
	C++ version of gsl_odeiv2_step_apply(). More...

int	set_driver (driver const &d)
	C++ version of gsl_odeiv2_step_set_driver(). More...

Static Public Member Functions
static type const *	rk2 ()
	Static type. More...

static type const *	rk4 ()
	Static type. More...

static type const *	rkf45 ()
	Static type. More...

static type const *	rkck ()
	Static type. More...

static type const *	rk8pd ()
	Static type. More...

static type const *	rk2imp ()
	Static type. More...

static type const *	rk4imp ()
	Static type. More...

static type const *	bsimp ()
	Static type. More...

static type const *	rk1imp ()
	Static type. More...

static type const *	msadams ()
	Static type. More...

static type const *	msbdf ()
	Static type. More...

Private Attributes
gsl_odeiv2_step *	ccgsl_pointer
	The shared pointer. More...

size_t *	count
	The shared reference count. More...

Detailed Description

Stepping functions.

These advance a solution from time \(t\) to time \(t+h\) for a fixed step size \(h\). They also estimate the local error.

Definition at line 38 of file odeiv2.hpp.

Member Typedef Documentation

◆ type

typedef gsl_odeiv2_step_type gsl::odeiv2::step::type

Convenience typedef.

Definition at line 43 of file odeiv2.hpp.

Constructor & Destructor Documentation

◆ step() [1/5]

gsl::odeiv2::step::step ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 47 of file odeiv2.hpp.

References ccgsl_pointer, and count.

Referenced by operator=().

◆ step() [2/5]

gsl::odeiv2::step::step	(	step::type const *	T,
		size_t	dim
	)

inline

The standard constructor creates a new step of type T and dimensions dim.

Parameters

T	The type
dim	The number of dimensions

Definition at line 58 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ step() [3/5]

gsl::odeiv2::step::step ( gsl_odeiv2_step * v )

inlineexplicit

Could construct from a gsl_odeiv2_step.

This is not usually a good idea. In this case we should not use gsl_odeiv2_step_free() to deallocate the memory.

Parameters

v The step

Definition at line 74 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ step() [4/5]

gsl::odeiv2::step::step ( step const & v )

inline

The copy constructor.

This creates a new reference to the workspace.

Parameters

v	The step to copy.

Definition at line 85 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ ~step()

gsl::odeiv2::step::~step ( )

inline

The destructor only deletes the pointers if count reaches zero.

Definition at line 104 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ step() [5/5]

gsl::odeiv2::step::step ( step && v )

inline

Move constructor.

Parameters

v	The step to move.

Definition at line 116 of file odeiv2.hpp.

References count.

Member Function Documentation

◆ apply()

template<typename Y , typename YERR , typename DYDT_IN , typename DYDT_OUT >

int gsl::odeiv2::step::apply	(	double	t,
		double	h,
		Y &	y,
		YERR &	yerr,
		DYDT_IN const &	dydt_in,
		DYDT_OUT	dydt_out,
		system const &	sys
	)

inline

C++ version of gsl_odeiv2_step_apply().

This version works with gsl::vector (or std::vector<double>) objects.

Parameters

t	Current time
h	Step size
y	Current state
yerr	Absolute error value (return value)
dydt_in	Array of derivatives at time t (not null)
dydt_out	Array of derivatives at time t+h (not null)
sys	The odeiv::system

Returns: Error code on failure

Definition at line 339 of file odeiv2.hpp.

References get().

◆ bsimp()

static type const * gsl::odeiv2::step::bsimp ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 390 of file odeiv2.hpp.

◆ empty()

bool gsl::odeiv2::step::empty ( ) const

inline

Find if the step is empty.

Returns: true if has size zero; otherwise false

Definition at line 193 of file odeiv2.hpp.

References ccgsl_pointer.

◆ get()

gsl_odeiv2_step * gsl::odeiv2::step::get ( ) const

inline

Get the gsl_odeiv2_step.

Returns: the gsl_odeiv2_step

Definition at line 219 of file odeiv2.hpp.

References ccgsl_pointer.

Referenced by gsl::odeiv2::evolve::apply(), apply(), gsl::odeiv2::evolve::apply_fixed_step(), gsl::odeiv2::control::hadjust(), name(), order(), reset(), and set_driver().

◆ msadams()

static type const * gsl::odeiv2::step::msadams ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 400 of file odeiv2.hpp.

◆ msbdf()

static type const * gsl::odeiv2::step::msbdf ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 405 of file odeiv2.hpp.

◆ name()

char const * gsl::odeiv2::step::name ( ) const

inline

C++ version of gsl_odeiv2_step_name().

Returns: The name of the step type

Definition at line 251 of file odeiv2.hpp.

References get().

◆ operator bool()

gsl::odeiv2::step::operator bool ( ) const

inlineexplicit

Allow conversion to bool.

Returns: true or false according as this contains a pointer to a gsl_odeiv2_step.

Definition at line 239 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator!=()

bool gsl::odeiv2::step::operator!= ( step const & v ) const

inline

Two step are different if their elements are not identical.

Parameters

v	The step to be compared with `this`

Returns: false or true according as this and v have identical elements or not

Definition at line 146 of file odeiv2.hpp.

References operator==().

◆ operator<()

bool gsl::odeiv2::step::operator< ( step const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a step is nonnegative.

Parameters

v	The step to be compared with `this`

Returns: false or true according as this is less than v lexicographically

Definition at line 158 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator<=()

bool gsl::odeiv2::step::operator<= ( step const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a step is nonnegative.

Parameters

v	The step to be compared with `this`

Returns: false or true according as this is less than or equal to v lexicographically

Definition at line 178 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator=() [1/2]

step & gsl::odeiv2::step::operator= ( step && v )

inline

Move operator.

Parameters

v	The step to move.

Returns: A reference to this.

Definition at line 125 of file odeiv2.hpp.

References step().

◆ operator=() [2/2]

step & gsl::odeiv2::step::operator= ( step const & v )

inline

The assignment operator.

This copies elementwise.

Parameters

v	The step to copy

Definition at line 92 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ operator==()

bool gsl::odeiv2::step::operator== ( step const & v ) const

inline

Two step are identically equal if their elements are identical.

Parameters

v	The step to be compared with `this`

Returns: true or false according as this and v have identical elements or not

Definition at line 138 of file odeiv2.hpp.

References ccgsl_pointer.

Referenced by operator!=().

◆ operator>()

bool gsl::odeiv2::step::operator> ( step const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a step is nonnegative.

Parameters

v	The step to be compared with `this`

Returns: false or true according as this is greater than v lexicographically

Definition at line 168 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator>=()

bool gsl::odeiv2::step::operator>= ( step const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a step is nonnegative.

Parameters

v	The step to be compared with `this`

Returns: false or true according as this is no less than v lexicographically

Definition at line 188 of file odeiv2.hpp.

References ccgsl_pointer.

◆ order()

unsigned int gsl::odeiv2::step::order ( )

inline

C++ version of gsl_odeiv2_step_order().

Returns: The order of the stepping function

Definition at line 256 of file odeiv2.hpp.

References get().

◆ reset()

int gsl::odeiv2::step::reset ( )

inline

C++ version of gsl_odeiv2_step_reset().

Returns: Error code on failure

Definition at line 246 of file odeiv2.hpp.

References get().

◆ rk1imp()

static type const * gsl::odeiv2::step::rk1imp ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 395 of file odeiv2.hpp.

◆ rk2()

static type const * gsl::odeiv2::step::rk2 ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 355 of file odeiv2.hpp.

◆ rk2imp()

static type const * gsl::odeiv2::step::rk2imp ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 380 of file odeiv2.hpp.

◆ rk4()

static type const * gsl::odeiv2::step::rk4 ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 360 of file odeiv2.hpp.

◆ rk4imp()

static type const * gsl::odeiv2::step::rk4imp ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 385 of file odeiv2.hpp.

◆ rk8pd()

static type const * gsl::odeiv2::step::rk8pd ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 375 of file odeiv2.hpp.

◆ rkck()

static type const * gsl::odeiv2::step::rkck ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 370 of file odeiv2.hpp.

◆ rkf45()

static type const * gsl::odeiv2::step::rkf45 ( )

inlinestatic

Static type.

Returns: the named step type

Definition at line 365 of file odeiv2.hpp.

◆ set_driver()

int gsl::odeiv2::step::set_driver ( driver const & d )

inline

C++ version of gsl_odeiv2_step_set_driver().

Parameters

d	The driver

Returns: Error code on failure

Definition at line 1406 of file odeiv2.hpp.

References get(), and gsl::odeiv2::driver::get().

◆ swap()

void gsl::odeiv2::step::swap ( step & v )

inline

Swap two step objects.

This works even if the step have different sizes because it swaps pointers.

Parameters

v	The step to swap with `this`.

Definition at line 200 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ unique()

bool gsl::odeiv2::step::unique ( ) const

inline

Find if this is the only object sharing the gsl_odeiv2_step.

Returns: true or falses according as this is the only workspace object sharing the gsl_odeiv2_step.

Definition at line 225 of file odeiv2.hpp.

References count.

◆ use_count()

size_t gsl::odeiv2::step::use_count ( ) const

inline

Find how many step objects share this pointer.

Returns: the number of workspace objects that share this pointer.

Definition at line 230 of file odeiv2.hpp.

References count.

Member Data Documentation

◆ ccgsl_pointer

gsl_odeiv2_step* gsl::odeiv2::step::ccgsl_pointer

private

The shared pointer.

Definition at line 208 of file odeiv2.hpp.

Referenced by empty(), get(), operator bool(), operator<(), operator<=(), operator=(), operator==(), operator>(), operator>=(), step(), swap(), and ~step().

◆ count

size_t* gsl::odeiv2::step::count

private

The shared reference count.

Definition at line 212 of file odeiv2.hpp.

Referenced by operator=(), step(), swap(), unique(), use_count(), and ~step().

The documentation for this class was generated from the following file:

odeiv2.hpp

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ type

Constructor & Destructor Documentation

◆ step() [1/5]

◆ step() [2/5]

◆ step() [3/5]

◆ step() [4/5]

◆ ~step()

◆ step() [5/5]

Member Function Documentation

◆ apply()

◆ bsimp()

◆ empty()

◆ get()

◆ msadams()

◆ msbdf()

◆ name()

◆ operator bool()

◆ operator!=()

◆ operator<()

◆ operator<=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator>()

◆ operator>=()

◆ order()

◆ reset()

◆ rk1imp()

◆ rk2()

◆ rk2imp()

◆ rk4()

◆ rk4imp()

◆ rk8pd()

◆ rkck()

◆ rkf45()

◆ set_driver()

◆ swap()

◆ unique()

◆ use_count()

Member Data Documentation

◆ ccgsl_pointer

◆ count
