Adaptive step size control. More...

#include <odeiv2.hpp>

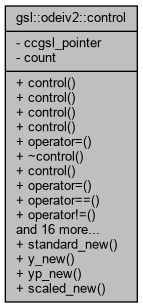

Collaboration diagram for gsl::odeiv2::control:

Public Types
typedef gsl_odeiv2_control_type	type
	Convenience typedef. More...

Public Member Functions
	control ()
	The default constructor is only really useful for assigning to. More...

	control (type const *T)
	The constructor creates a new control of type T. More...

	control (gsl_odeiv2_control *v)
	Could construct from a gsl_odeiv2_control. More...

	control (control const &v)
	The copy constructor. More...

control &	operator= (control const &v)
	The assignment operator. More...

	~control ()
	The destructor only deletes the pointers if count reaches zero. More...

	control (control &&v)
	Move constructor. More...

control &	operator= (control &&v)
	Move operator. More...

bool	operator== (control const &v) const
	Two control are identically equal if their elements are identical. More...

bool	operator!= (control const &v) const
	Two control are different if their elements are not identical. More...

bool	operator< (control const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator> (control const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator<= (control const &v) const
	A container needs to define an ordering for sorting. More...

bool	operator>= (control const &v) const
	A container needs to define an ordering for sorting. More...

bool	empty () const
	Find if the control is empty. More...

void	swap (control &v)
	Swap two control objects. More...

gsl_odeiv2_control *	get () const
	Get the gsl_odeiv2_control. More...

bool	unique () const
	Find if this is the only object sharing the gsl_odeiv2_control. More...

size_t	use_count () const
	Find how many control objects share this pointer. More...

	operator bool () const
	Allow conversion to bool. More...

int	init (double eps_abs, double eps_rel, double a_y, double a_dydt)
	C++ version of gsl_odeiv2_control_init(). More...

int	hadjust (step &s, double const y[], double const yerr[], double const dydt[], double *h)
	C++ version of gsl_odeiv2_control_hadjust(). More...

template<typename Y , typename YERR , typename DYDT >
int	hadjust (step &s, Y const &y, YERR const &yerr, DYDT const &dydt, double &h)
	C++ version of gsl_odeiv2_control_hadjust(). More...

char const *	name () const
	C++ version of gsl_odeiv2_control_name(). More...

int	errlevel (double const y, double const dydt, double const h, size_t const ind, double &errlev)
	C++ version of gsl_odeiv2_control_errlevel(). More...

int	set_driver (driver const &d)
	C++ version of gsl_odeiv2_control_set_driver(). More...

Static Public Member Functions
static control	standard_new (double eps_abs, double eps_rel, double a_y, double a_dydt)
	C++ version of gsl_odeiv2_control_standard_new(). More...

static control	y_new (double eps_abs, double eps_rel)
	C++ version of gsl_odeiv2_control_y_new(). More...

static control	yp_new (double eps_abs, double eps_rel)
	C++ version of gsl_odeiv2_control_yp_new(). More...

template<typename SCALE_ABS >
static control	scaled_new (double eps_abs, double eps_rel, double a_y, double a_dydt, SCALE_ABS const &scale_abs)
	C++ version of gsl_odeiv2_control_scaled_new(). More...

Private Attributes
gsl_odeiv2_control *	ccgsl_pointer
	The shared pointer. More...

size_t *	count
	The shared reference count. More...

Detailed Description

Adaptive step size control.

Definition at line 411 of file odeiv2.hpp.

Member Typedef Documentation

◆ type

typedef gsl_odeiv2_control_type gsl::odeiv2::control::type

Convenience typedef.

Definition at line 416 of file odeiv2.hpp.

Constructor & Destructor Documentation

◆ control() [1/5]

gsl::odeiv2::control::control ( )

inline

The default constructor is only really useful for assigning to.

Definition at line 420 of file odeiv2.hpp.

References ccgsl_pointer, and count.

Referenced by operator=(), scaled_new(), standard_new(), y_new(), and yp_new().

◆ control() [2/5]

gsl::odeiv2::control::control ( type const * T )

inlineexplicit

The constructor creates a new control of type T.

The four static constructors are more useful if you have not defined a type.

Parameters

T The type

Definition at line 431 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ control() [3/5]

gsl::odeiv2::control::control ( gsl_odeiv2_control * v )

inlineexplicit

Could construct from a gsl_odeiv2_control.

This is not usually a good idea. In this case we should not use gsl_odeiv2_control_free() to deallocate the memory.

Parameters

v	The control

Definition at line 447 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ control() [4/5]

gsl::odeiv2::control::control ( control const & v )

inline

The copy constructor.

This creates a new reference to the workspace.

Parameters

v	The control to copy.

Definition at line 458 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ ~control()

gsl::odeiv2::control::~control ( )

inline

The destructor only deletes the pointers if count reaches zero.

Definition at line 477 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ control() [5/5]

gsl::odeiv2::control::control ( control && v )

inline

Move constructor.

Parameters

v	The control to move.

Definition at line 489 of file odeiv2.hpp.

References count.

Member Function Documentation

◆ empty()

bool gsl::odeiv2::control::empty ( ) const

inline

Find if the control is empty.

Returns: true if has size zero; otherwise false

Definition at line 566 of file odeiv2.hpp.

References ccgsl_pointer.

◆ errlevel()

int gsl::odeiv2::control::errlevel	(	double const	y,
		double const	dydt,
		double const	h,
		size_t const	ind,
		double &	errlev
	)

inline

C++ version of gsl_odeiv2_control_errlevel().

Parameters

y	The current value of y
dydt	The current value of dydt
h	The current step size
ind	The index
errlev	The desired error level (return value)

Returns: Error code on failure

Definition at line 684 of file odeiv2.hpp.

References get().

◆ get()

gsl_odeiv2_control * gsl::odeiv2::control::get ( ) const

inline

Get the gsl_odeiv2_control.

Returns: the gsl_odeiv2_control

Definition at line 592 of file odeiv2.hpp.

References ccgsl_pointer.

Referenced by gsl::odeiv2::evolve::apply(), gsl::odeiv2::evolve::apply_fixed_step(), errlevel(), hadjust(), init(), name(), and set_driver().

◆ hadjust() [1/2]

int gsl::odeiv2::control::hadjust	(	step &	s,
		double const	y[],
		double const	yerr[],
		double const	dydt[],
		double *	h
	)

inline

C++ version of gsl_odeiv2_control_hadjust().

Parameters

s	The step
y[]	Current value of y
yerr[]	Current value of yerr
dydt[]	Current value of dydt
h	Step size (return value)

Returns: GSL_ODEIV_HADJ_DEC, GSL_ODEIV_HADJ_INC or GSL_ODEIV_HADJ_NIL according as h is decreased, may be increased or is unchanged

Definition at line 636 of file odeiv2.hpp.

References gsl::odeiv2::step::get(), and get().

◆ hadjust() [2/2]

template<typename Y , typename YERR , typename DYDT >

int gsl::odeiv2::control::hadjust	(	step &	s,
		Y const &	y,
		YERR const &	yerr,
		DYDT const &	dydt,
		double &	h
	)

inline

C++ version of gsl_odeiv2_control_hadjust().

This version allows arrays as gsl::vector objects (or std::vector<double>).

Parameters

s	The step
y	Current value of y
yerr	Current value of yerr
dydt	Current value of dydt
h	Step size (return value)

Returns: GSL_ODEIV_HADJ_DEC, GSL_ODEIV_HADJ_INC or GSL_ODEIV_HADJ_NIL according as h is decreased, may be increased or is unchanged

Definition at line 651 of file odeiv2.hpp.

References gsl::odeiv2::step::get(), and get().

◆ init()

int gsl::odeiv2::control::init	(	double	eps_abs,
		double	eps_rel,
		double	a_y,
		double	a_dydt
	)

inline

C++ version of gsl_odeiv2_control_init().

Parameters

eps_abs	Absolute error
eps_rel	Relative error
a_y	Scaling factor for y
a_dydt	Scaling factor for dydt

Returns: Error code on failure

Definition at line 623 of file odeiv2.hpp.

References get().

◆ name()

char const * gsl::odeiv2::control::name ( ) const

inline

C++ version of gsl_odeiv2_control_name().

Returns: The name of the control type.

Definition at line 659 of file odeiv2.hpp.

References get().

◆ operator bool()

gsl::odeiv2::control::operator bool ( ) const

inlineexplicit

Allow conversion to bool.

Returns: true or false according as this contains a pointer to a gsl_odeiv2_control.

Definition at line 612 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator!=()

bool gsl::odeiv2::control::operator!= ( control const & v ) const

inline

Two control are different if their elements are not identical.

Parameters

v	The control to be compared with `this`

Returns: false or true according as this and v have identical elements or not

Definition at line 519 of file odeiv2.hpp.

References operator==().

◆ operator<()

bool gsl::odeiv2::control::operator< ( control const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a control is nonnegative.

Parameters

v	The control to be compared with `this`

Returns: false or true according as this is less than v lexicographically

Definition at line 531 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator<=()

bool gsl::odeiv2::control::operator<= ( control const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a control is nonnegative.

Parameters

v	The control to be compared with `this`

Returns: false or true according as this is less than or equal to v lexicographically

Definition at line 551 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator=() [1/2]

control & gsl::odeiv2::control::operator= ( control && v )

inline

Move operator.

Parameters

v	The control to move.

Returns: A reference to this.

Definition at line 498 of file odeiv2.hpp.

References control().

◆ operator=() [2/2]

control & gsl::odeiv2::control::operator= ( control const & v )

inline

The assignment operator.

This copies elementwise.

Parameters

v	The control to copy

Definition at line 465 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ operator==()

bool gsl::odeiv2::control::operator== ( control const & v ) const

inline

Two control are identically equal if their elements are identical.

Parameters

v	The control to be compared with `this`

Returns: true or false according as this and v have identical elements or not

Definition at line 511 of file odeiv2.hpp.

References ccgsl_pointer.

Referenced by operator!=().

◆ operator>()

bool gsl::odeiv2::control::operator> ( control const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a control is nonnegative.

Parameters

v	The control to be compared with `this`

Returns: false or true according as this is greater than v lexicographically

Definition at line 541 of file odeiv2.hpp.

References ccgsl_pointer.

◆ operator>=()

bool gsl::odeiv2::control::operator>= ( control const & v ) const

inline

A container needs to define an ordering for sorting.

This uses standard lexicographical ordering and so is not useful, for example, for checking, that a control is nonnegative.

Parameters

v	The control to be compared with `this`

Returns: false or true according as this is no less than v lexicographically

Definition at line 561 of file odeiv2.hpp.

References ccgsl_pointer.

◆ scaled_new()

template<typename SCALE_ABS >

static control gsl::odeiv2::control::scaled_new	(	double	eps_abs,
		double	eps_rel,
		double	a_y,
		double	a_dydt,
		SCALE_ABS const &	scale_abs
	)

inlinestatic

C++ version of gsl_odeiv2_control_scaled_new().

This version allows scale_abs to be gsl::vector or anything for which scale_abs.data() returns an array of doubles.

Parameters

eps_abs	Absolute error
eps_rel	Relative error
a_y	Scaling factor for y
a_dydt	Scaling factor for dydt
scale_abs	An array of scales for absolute error

Returns: The control object (shared pointer)

Definition at line 754 of file odeiv2.hpp.

References control().

◆ set_driver()

int gsl::odeiv2::control::set_driver ( driver const & d )

inline

C++ version of gsl_odeiv2_control_set_driver().

Parameters

d	The driver

Returns: Error code on failure

Definition at line 1408 of file odeiv2.hpp.

References get(), and gsl::odeiv2::driver::get().

◆ standard_new()

static control gsl::odeiv2::control::standard_new	(	double	eps_abs,
		double	eps_rel,
		double	a_y,
		double	a_dydt
	)

inlinestatic

C++ version of gsl_odeiv2_control_standard_new().

Parameters

eps_abs	Absolute error
eps_rel	Relative error
a_y	Scaling factor for y
a_dydt	Scaling factor for dydt

Returns: The control object (shared pointer)

Definition at line 704 of file odeiv2.hpp.

References control().

◆ swap()

void gsl::odeiv2::control::swap ( control & v )

inline

Swap two control objects.

This works even if the control have different sizes because it swaps pointers.

Parameters

v	The control to swap with `this`.

Definition at line 573 of file odeiv2.hpp.

References ccgsl_pointer, and count.

◆ unique()

bool gsl::odeiv2::control::unique ( ) const

inline

Find if this is the only object sharing the gsl_odeiv2_control.

Returns: true or falses according as this is the only control object sharing the gsl_odeiv2_control.

Definition at line 598 of file odeiv2.hpp.

References count.

◆ use_count()

size_t gsl::odeiv2::control::use_count ( ) const

inline

Find how many control objects share this pointer.

Returns: the number of control objects that share this pointer.

Definition at line 603 of file odeiv2.hpp.

References count.

◆ y_new()

static control gsl::odeiv2::control::y_new	(	double	eps_abs,
		double	eps_rel
	)

inlinestatic

C++ version of gsl_odeiv2_control_y_new().

Parameters

eps_abs	Absolute error
eps_rel	Relative error

Returns: The control object (shared pointer)

Definition at line 714 of file odeiv2.hpp.

References control().

◆ yp_new()

static control gsl::odeiv2::control::yp_new	(	double	eps_abs,
		double	eps_rel
	)

inlinestatic

C++ version of gsl_odeiv2_control_yp_new().

Parameters

eps_abs	Absolute error
eps_rel	Relative error

Returns: The control object (shared pointer)

Definition at line 723 of file odeiv2.hpp.

References control().

Member Data Documentation

◆ ccgsl_pointer

gsl_odeiv2_control* gsl::odeiv2::control::ccgsl_pointer

private

The shared pointer.

Definition at line 581 of file odeiv2.hpp.

Referenced by control(), empty(), get(), operator bool(), operator<(), operator<=(), operator=(), operator==(), operator>(), operator>=(), swap(), and ~control().

◆ count

size_t* gsl::odeiv2::control::count

private

The shared reference count.

Definition at line 585 of file odeiv2.hpp.

Referenced by control(), operator=(), swap(), unique(), use_count(), and ~control().

The documentation for this class was generated from the following file:

odeiv2.hpp

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ type

Constructor & Destructor Documentation

◆ control() [1/5]

◆ control() [2/5]

◆ control() [3/5]

◆ control() [4/5]

◆ ~control()

◆ control() [5/5]

Member Function Documentation

◆ empty()

◆ errlevel()

◆ get()

◆ hadjust() [1/2]

◆ hadjust() [2/2]

◆ init()

◆ name()

◆ operator bool()

◆ operator!=()

◆ operator<()

◆ operator<=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator>()

◆ operator>=()

◆ scaled_new()

◆ set_driver()

◆ standard_new()

◆ swap()

◆ unique()

◆ use_count()

◆ y_new()

◆ yp_new()

Member Data Documentation

◆ ccgsl_pointer

◆ count
